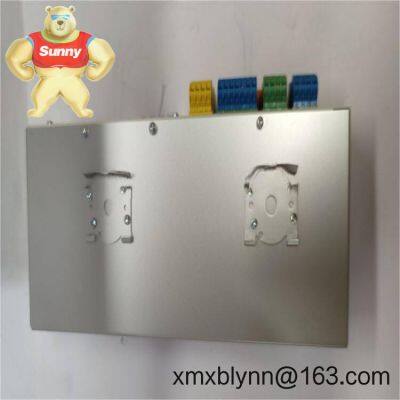

ABB BCU-02 (3AUA0000110429) Control Unit – Core Control Board for ABB AC Drive Platforms

The ABB BCU-02, order code 3AUA0000110429, is a control unit used in ABB industrial AC drives, typically within the ACS800 family and related platforms. It handles the drive’s core control tasks—motor regulation, logic processing, diagnostics, and communication with option modules—so it’s often the critical spare when a drive won’t start or loses logic I/O. From my experience, swapping in a BCU-02 restores production quickly without rewiring the whole cabinet.

• Direct-fit replacement – Designed to install in the host ABB drive’s control bay, minimizing mechanical changes.

• Handles core motor control – Executes the drive control algorithms and coordinates I/O and protection logic.

• Supports ABB option modules – Typically compatible with ABB fieldbus adapters (e.g., FENA, FPBA, FDNA) and panel interfaces used by the host drive.

• Parameter and firmware continuity – Works with the drive’s parameter set; service tools like DriveWindow/Drive Composer streamline updates.

• Diagnostics visibility – Provides alarms, fault codes, and status channels for quick troubleshooting via the local control panel or PC tool.

• Robust design for industrial environments – Engineered to the same standards as ABB’s ACS/ACH platforms; typically suitable for -10…+50°C cabinets when installed per drive guidelines.

You’ll typically find the BCU-02 in service across continuous process plants and heavy-duty discrete manufacturing. It’s a sensible spare for:

• Pumps and fans in water, HVAC, and district energy systems

• Conveyors, mixers, and extruders in food & beverage and chemicals

• Paper machines, winders, and web handling in pulp & paper

• Crushers, mills, and hoists in mining & minerals

• General motion duties in metals, cement, and marine auxiliaries

• Rapid recovery from downtime – A like-for-like control unit swap is usually quicker than replacing a full drive.

• Lifecycle support – Aligns with ABB tooling and firmware, which helps with traceability and service history.

• Compatibility – Works with the drive’s existing I/O and fieldbus adapters, reducing change-over risk.

• Lower total cost – In many cases, a control board replacement avoids re-commissioning a new drive and re-acceptance testing.

• Proven reliability – Industrial-grade PCB design and conformal coating practices (where applicable) suit typical cabinet environments.

“We had intermittent trips tied to the logic section. Swapping in a BCU-02 brought the ACS800 back online in under two hours, and we didn’t touch field wiring.” — Maintenance Supervisor, beverage plant

• Cabinet & environment – Install in a clean, dry, ventilated panel. Maintain the host drive’s IP rating and keep cable ducts clear of dust buildup.

• Power-down & ESD – Isolate mains, wait for DC bus discharge, and use ESD protection. The BCU-02 is not hot-swappable.

• Parameter backup – Before removal, back up parameters via the control panel or PC tool. After installation, restore and verify key motor and protection settings.

• Firmware alignment – Ensure firmware level is compatible with the host drive and any fieldbus/option modules; update via ABB tools as needed.

• Wiring check – Reseat backplane connectors carefully; confirm panel bus and any option module headers are firmly locked.

• Routine care – Periodically inspect connectors, clean dust with dry air, and log any fault codes for predictive maintenance.

• Manufactured to ABB quality standards; CE marking and UL conformity apply to the intended drive system

• RoHS-compliant materials and process (typical for ABB control electronics)

• Traceable order code: 3AUA0000110429

• Manufacturer’s warranty typically 12 months from commissioning or dispatch (subject to ABB terms)

If you’re replacing a failed control board or planning critical spares, the ABB BCU-02 (3AUA0000110429) seems to be the safe choice—straightforward fit, predictable commissioning, and no surprises with existing I/O or networks in most cases.
