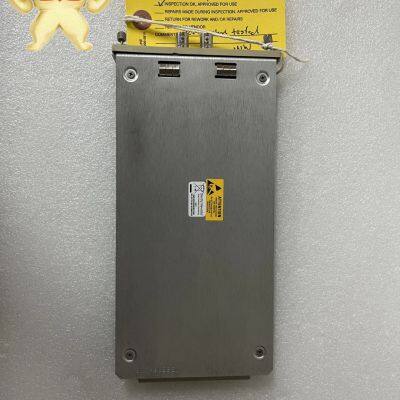

Bently Nevada 3500/25-01 Keyphasor Module – Stable Phase Reference for Rotating Machinery Diagnostics and Balancing

The Bently Nevada 3500/25-01 is the single-channel Keyphasor module for the 3500 rack, providing a clean once-per-revolution phase reference derived from a proximity probe or magnetic pickup. It’s the signal you rely on for vector vibration, speed-related analysis, field balancing, and precise phase measurements across the rack. In many cases, it’s the missing link that lets your protection and condition monitoring channels “l(fā)ock” to shaft position with confidence.

• Single-channel (01 option): Purpose-built for one Keyphasor reference, ideal for machines with a single probe or single timing mark.

• Flexible sensing: Accepts Bently Nevada 3300 XL Proximitor-based proximity transducers or a magnetic pickup, giving you options on legacy and new builds.

• Conditioned, reliable pulses: The module shapes and validates the once-per-turn signal to reduce jitter and noise—especially helpful on lightly marked rotors.

• Front-panel buffered output: Buffered transducer signal available via BNC for analyzers or data collectors, which typically saves time during commissioning and troubleshooting.

• Rack-wide distribution: Keyphasor events are placed on the 3500 backplane so monitoring modules (e.g., vibration channels) can reference the same phase track.

• Seamless 3500 integration: Configuration is handled through the rack (via the TDI), so there’s no separate setup tool on the module itself.

• Field-proven design: Commonly used on compressors, steam/gas turbines, large motors, and generators where stable phase is critical for balancing or diagnostics.

From my experience, the 3500/25-01 sits at the center of rotating asset diagnostics where phase is essential. Typical deployments include:

• Steam and gas turbines: phase reference for vector vibration and startup/coastdown plots.

• Process compressors and expanders: balancing and synchronous diagnostics on high-speed shafts.

• Large induction/synchronous motors and generators: coupling/rotor-related analysis and trim balancing.

• Pumps and fans: once-per-turn tracking for cavitation studies and mechanical looseness checks.

• Reliability you can trend: Stable, conditioned Keyphasor pulses typically improve phase repeatability, which speeds up balancing and reduces trial runs.

• Backwards-compatible sensors: Works with widely installed Bently Nevada 3300 XL transducer systems, so you can reuse existing probes and cabling.

• Simplified commissioning: Front BNC and rack distribution mean quicker checks with a portable analyzer and fewer ad?hoc jumpers.

• Lower lifecycle cost: Fewer “mystery trips” from marginal timing marks—better signal integrity tends to cut diagnostic time and downtime.

• Scales with the rack: If you later need a second phase track, the 3500/25-02 two-channel variant is a straightforward path.

Feedback from a petrochem client: “After switching to a 3500/25-01 on our 13 MW compressor train, we shaved about 30% off balancing time because the phase was rock steady—even through speed ramps.”

• Cabinet & rack: Install in a 3500 rack mounted in a clean, ventilated enclosure. Maintain clear airflow around the rack power supplies.

• Wiring: Route proximity probe cables separately from high-voltage lines; terminate shields/drains per Bently Nevada grounding practices to reduce noise.

• Target/marker quality: Ensure a defined once-per-turn mark (keyway, notch, or tone wheel). A crisp feature typically gives the most consistent phase.

• Configuration: Set up via the 3500/22M TDI using the Bently Nevada configuration software. Verify pulse polarity/thresholds match the sensor type.

• Safety: Follow site hazardous-area practices. The 3500 system is commonly used in Zone 2/Div 2 environments when installed with approved components.

• Routine care: Periodically check probe gap, inspect the rotor mark for wear or contamination, and confirm buffered output amplitude is within expected range. Firmware updates, when applicable, are applied via the TDI.

• CE and RoHS compliance for the 3500 system components.

• UL/cUL and CSA certifications; ATEX/IECEx suitability for Zone 2 installations in many cases.

• Standard manufacturer warranty, typically 1 year for new units.

You might notice that environmental ratings and approvals can vary slightly by rack and I/O revision; if your site requires a specific certification label, I can verify the exact part numbers before shipment.

• 330103 – 3300 XL 8 mm Proximity Probe (common choice for Keyphasor applications on medium/large shafts).

• 330130 – 3300 XL Extension Cable (pairs with the 330103 probe to reach the Proximitor in the panel).

• 330180 – 3300 XL Proximitor Sensor (interfaces the probe to the 3500/25-01 input).

• 3500/22M – Transient Data Interface (TDI) for rack communications and configuration.

• 3500/05 – System rack; 3500/15 – Power supply options for the rack.

• 3500/25-02 – Two-channel Keyphasor module if dual independent phase tracks are needed.

If your machine train has unusual key geometry or you’re seeing low Keyphasor amplitude at certain speeds, I can suggest sensor selections and mounting tweaks that typically stabilize the phase without major rework.
