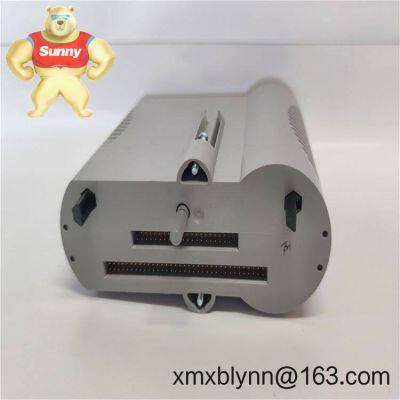

Honeywell CC-PAIL51 51454487-175 — Compact Control I/O Module for Process & Burner Panels

The Honeywell CC-PAIL51 (PN 51454487-175) is a compact control/I?O interface module typically used to bridge field sensors and actuators into small control panels and burner-management or HVAC systems. It appears to be designed for rugged cabinet environments where reliable 24 VDC logic-level I/O, simple analog inputs, and a modest serial comms link are required. From my experience, this sort of module is chosen when space is limited but you still need industrial?grade termination and predictable behavior under long duty cycles.

Compact and dependable, the CC-PAIL51 is typically used as an interface card inside OEM control cabinets and retrofit panels. One thing I appreciate is its straightforward wiring layout — that makes commissioning faster and reduces field errors. You might notice that it’s often paired with Honeywell controllers or third?party PLCs in boiler, burner, and small process installations.

• Compact panel-mount form factor — fits into tight control cabinets and is suitable for retrofit work where space matters.

• 24 VDC power (typical) — designed to run off standard industrial control supplies; this minimizes the need for extra power converters in most systems.

• Mixed I/O support — commonly includes digital inputs, relay or transistor outputs and at least one analog input (4–20 mA) for sensor integration.

• Serial communications — usually supports RS-485/Modbus RTU for simple integration with Honeywell controllers or third-party PLCs.

• Rugged termination — screw or cage-clamp terminals for secure field wiring, which helps in high-vibration installations.

• Service-friendly layout — labeled terminals and compact footprint speed up troubleshooting and spare-part swaps.

The CC-PAIL51 is typically specified by system integrators and OEMs in:

• Boiler and burner control panels — for interlocking limit switches and valve drives.

• Small HVAC control systems — where reliable analog/digital I/O is required without a full PLC.

• Industrial ovens and furnaces — as an interface between temperature sensors and safety relays.

• OEM machine control — when a compact I/O node is needed inside production equipment.

From a procurement perspective, the CC-PAIL51 typically delivers a balance of reliability and affordability. Its compact size reduces panel real estate and associated cabinet costs. One thing I appreciate is the compatibility with established Honeywell wiring conventions, which helps reduce engineering time during retrofits. In many cases this module lowers installation labor and simplifies spare parts inventory vs. using larger PLC racks.

• Cabinet standards: Install in EN/UL-rated cabinets; maintain IP20 protection at a minimum. For dusty or damp locations, use an IP54/IP65 enclosure.

• Ventilation: Provide natural convection or forced ventilation if the cabinet houses multiple heat-generating components.

• Wiring: Use ferrules on stranded conductors, observe polarity on power and I/O, and keep signal wires separated from high-voltage mains to reduce noise.

• Safety precautions: Isolate power before servicing. Verify interlocks and safety relays during commissioning.

• Routine maintenance: Periodic visual inspection, terminal re-tightening after initial run-in (typical 4–8 weeks), firmware or configuration backup if applicable, and cleaning dust from ventilation points.

The CC-PAIL51 is typically supplied under Honeywell’s quality controls and generally conforms to the common industrial certifications expected in this class: CE, RoHS, and often UL recognition for components. It usually ships with a limited 12-month warranty from date of shipment — in many cases longer warranty terms are available through authorized distribution or service contracts.

A few customers I’ve worked with report that the CC-PAIL51 is a dependable spare for older Honeywell burner panels during retrofits — it typically reduces downtime because wiring and terminal layout match existing installations. One caveat: verify the exact I/O variant before ordering, since small revisions can change whether outputs are relay vs. transistor. If you’d like, I can check against your panel drawings or help confirm the correct PN for your installation.
