ABB 500MBA02 (1MRB200053/M) – Control/Interface Board for ABB Industrial Drive Systems

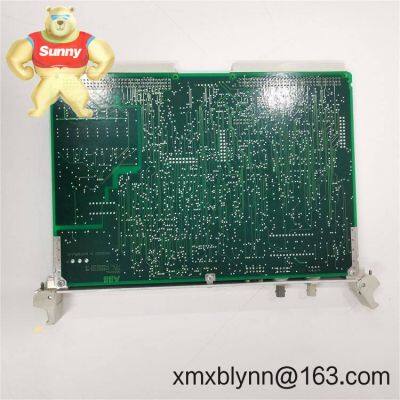

The ABB 500MBA02, part code 1MRB200053/M, is a control/interface board used inside ABB drive and power-conversion cabinets to condition signals and coordinate control logic. It’s typically specified as a form-fit-function replacement for installed systems, helping maintenance teams restore availability fast without redesigning the cabinet or revalidating wiring.

From my experience, this board is most often chosen to keep mature ABB medium- and high-power drive assets running reliably—where downtime costs escalate quickly and compatibility really matters.

• Form-fit-function compatibility – Designed to slot into the original location with matching connectors and mechanical layout, reducing change-over time.

• Revision “/M” variant – You might notice the “/M” suffix; this indicates a specific revision level used to align with certain cabinet builds or firmware baselines.

• Signal conditioning and isolation – Handles control signals between field I/O and controller sections; in many cases includes isolation to improve EMC robustness inside the cabinet.

• On-board status indications – LEDs and accessible test points typically simplify commissioning and fault tracing for maintenance engineers.

• Industrial-grade build – Built for cabinet environments with consistent performance under vibration and electrical noise common to heavy industry.

• Direct replacement sourcing – Helps extend the lifecycle of installed ABB systems without intrusive retrofits or PLC rewrites.

•


The 500MBA02 is commonly found in ABB drive cabinets supporting heavy-duty applications where reliability and long lifecycle support are essential:

• Cement kilns, raw mills, and ID fans

• Metals rolling mills, melt shops, and finishing lines

• Oil & gas compression, water injection, and pipeline pumps

• Mining hoists, conveyors, and ventilation fans

• Marine propulsion and large auxiliaries

• Power generation auxiliaries (boiler fans, feedwater systems)

•


• Reduced downtime – Form-fit-function replacement typically shortens outage windows for critical production assets.

• Compatibility – Matches original wiring and controller expectations; fewer surprises during commissioning.

• Lifecycle extension – Protects prior investments by keeping proven ABB cabinets in service longer.

• Quality assurance – Each unit can be supplied tested and inspected; traceable part IDs help with documentation.

• Support-ready – Easily referenced by part code 1MRB200053/M, which simplifies technical support and spares planning.

One thing I appreciate is how predictable the swap is when the cabinet wiring and backplane are original. A maintenance lead at a cement plant told us their 500MBA02 dropped in and passed checks without parameter changes—saved them an extra shift of debugging.

• Safety first – Power down, lockout/tagout, and discharge stored energy per site procedures. Observe ESD handling (ground strap, antistatic mat).

• Cabinet environment – Keep within the drive’s ambient limits; provide clean, dry air and adequate ventilation. Avoid conductive dust.

• Mechanical fit – Seat the board into card guides evenly. Do not force connectors; check alignment and keying.

• Wiring & connectors – Inspect backplane and harness pins for oxidation or looseness; re-seat once to ensure good contact.

• Commissioning – After power-up, verify status LEDs and run the cabinet’s built-in diagnostics. Document any alarms before adjusting settings.

• Routine care – Quarterly visual checks, light dust removal with dry air (low pressure), and connector integrity checks. Firmware changes, if any are applicable, should follow ABB guidance only.

• Spares strategy – In most cases it’s wise to hold one on the shelf for multi-line sites; temperature- and humidity-controlled storage extends shelf life.

•


• Manufactured under ISO 9001 quality systems

• RoHS-compliant components where applicable

• CE conformity when installed within a compliant ABB system

• UL/CSA considerations per the host cabinet certification

• Warranty: typically 12 months from shipment, covering workmanship and materials

•
