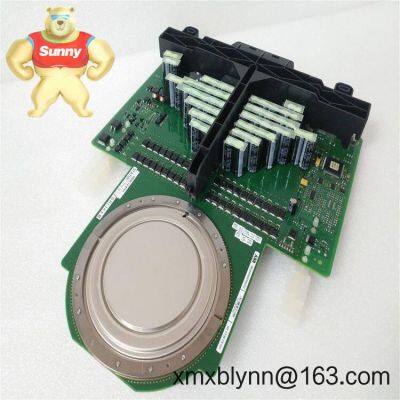

ABB 3BHB018104R0001 IGCT Module – High?power switching element for medium?voltage drives and converters

The ABB 3BHB018104R0001 is an IGCT (Integrated Gate-Commutated Thyristor) module designed for demanding medium?voltage applications where high current, fast turn?off capability, and long service life are non?negotiable. It’s typically found in ABB medium?voltage drive platforms and grid power converters, providing a robust, press?pack switching core with consistent thermal and electrical performance. From my experience, this part number is often specified as a like?for?like service replacement to minimize downtime during planned maintenance.

• IGCT technology for MV power stages – High turn?off capability with low conduction losses; ideal for multi?megawatt drives and converters.

• Press?pack, bond?wire?free construction – Uniform current distribution and rugged short?circuit behavior under correct clamping, which typically improves reliability over time.

• Drop?in service footprint – Matches existing ABB layouts for the same 3BHB part code, reducing retrofit complexity in cabinets and power cells.

• Fiber?optic gate interface (with gate unit) – In many cases the associated gate unit uses fiber triggering and 24 VDC auxiliaries, simplifying noise?immune control.

• Thermally efficient for liquid?cooled stacks – Optimized for water?cooled heat sinks commonly used in MV drive cabinets to keep junction temperatures in check.

• Diagnostics through the gate unit – Gate drivers typically provide status feedback, which helps during commissioning and troubleshooting.

You’ll typically see the 3BHB018104R0001 in medium?voltage motor drives (pumps, compressors, fans), mining hoists, marine propulsion drives, metal rolling mills, and grid?connected power converters such as SVC/STATCOM. It also shows up in refurbishment projects for aging MV drives where a one?for?one IGCT module replacement saves both time and risk.

• Medium?voltage process drives (3–6 kV classes)

• Power quality systems (SVC/STATCOM) and large rectifier front ends

• Marine and oil & gas electrification where high reliability is critical

• Upgrade programs and life?cycle extensions on ABB MV platforms

• Reliability in harsh duty – Press?pack IGCTs are known for predictable aging and no bond?wire failures, which seems to be why many operators favor them in 24/7 plants.

• Compatibility – Serves as a direct replacement by part number in many ABB MV drive cells, avoiding cabinet rework and re?qualification.

• Lower lifecycle cost – Efficient switching and rugged thermal behavior can reduce unplanned stoppages and spares consumption.

• Supportable long term – Strong global service coverage and documented procedures make maintenance straightforward in most cases.

Field note: a maintenance lead at a cement plant told us their MV fan drive returned to service in under half a shift by swapping the IGCT module on a planned stop—no cabinet changes, just careful clamping and recalibration.

• Cabinet environment – Install in a clean, ventilated MV cabinet or E?house. Keep dust, moisture, and conductive contamination out of the clamping area.

• Clamping and alignment – Use the specified press?pack clamping force and torque sequence from the ABB service manual. Surfaces must be flat, clean, and free of burrs.

• Thermal interface – Apply approved thermal compound sparingly and uniformly. Verify heat?sink flatness and cooling loop flow (deionized water is commonly required).

• Wiring & optics – Route fiber?optic gate leads with proper bend radius and protective sleeves. Keep low?voltage auxiliaries (typically 24 VDC) clean and correctly fused.

• Safety – Lock?out/Tag?out, fully discharge DC link, and follow MV approach distances. Avoid megger testing through the semiconductor path.

• Routine checks – Inspect clamping hardware, clean dust, verify coolant quality, and review gate?unit diagnostics. Firmware updates for the related gate unit may apply in some cases.

• Manufacturing standards – Produced under ISO 9001 quality systems.

• Compliance – RoHS alignment for semiconductor content where applicable; CE marking applies at the drive/system level rather than the bare module in many cases.

• Warranty – Manufacturer’s warranty is typically 12 months (terms may vary by region and application).

• ABB IGCT gate unit (matched voltage/current class with fiber?optic interface)

• Liquid?cooled heat?sink assembly with approved clamping hardware

• Fiber?optic transceiver cables and 24 VDC auxiliary supply modules

• Snubber/RC networks and DC?link components per the drive’s service BOM

•


If you’re planning a like?for?like replacement, share your drive type and serial/build code. We can verify gate?unit compatibility, clamping specs, and any firmware notes before you schedule the outage.
