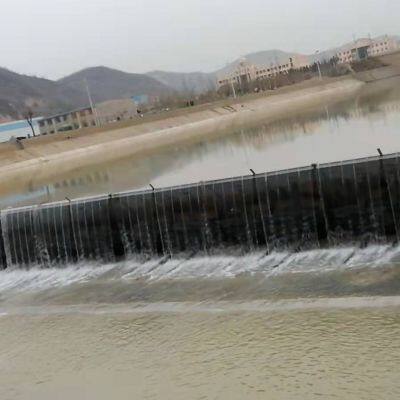

Steel Panel Shield Dam for Cold Area

# Composition of Air Shield Dams   Air shield dams (also known as pneumatic shield dams) are innovative, flexible hydraulic structures designed for water level regulation, combining the advantages of rubber dams and steel gates. Their composition is engineered for efficiency, adaptability, and durability, consisting of the following core components:

## 1. Inflatable Airbag (Core Supporting Structure)   The airbag is the primary load-bearing element, typically constructed from high-strength synthetic rubber composites—reinforced with multiple layers of nylon or polyester cords to withstand high internal pressure and external water pressure. It is hermetically sealed to retain air, and its shape (usually cylindrical or rectangular) is tailored to the project’s water retention requirements. When inflated, the airbag rises to support the shield plate; when deflated, it collapses to allow unobstructed water flow.

## 2. Shield Plate (Water-Retaining Surface)   Mounted on top of the airbag, the shield plate forms the water-retaining barrier. It is usually made of corrosion-resistant steel (e.g., galvanized steel or stainless steel) or high-strength aluminum alloys, designed to be lightweight yet rigid enough to resist water impact and prevent leakage. The plate’s surface is often smooth or coated with anti-corrosion materials to minimize friction with water and reduce sediment accumulation. Its length and width are customized to match the channel or river width, ensuring full coverage of the watercourse when raised.

## 3. Anchoring System   This system secures the entire structure to the riverbed or channel banks, preventing displacement under water pressure or flow forces. It includes:   - **Bottom Anchors**: Embedded in the concrete foundation, these fix the base of the airbag and shield plate, ensuring stability during inflation and deflation.   - **Bank Anchors**: Attached to the channel’s side walls, they secure the ends of the shield plate and airbag, maintaining alignment and preventing lateral movement.   - Fasteners (bolts, clamps, or embedded steel plates) that connect components tightly, ensuring structural integrity.

  ## 4. Inflation/Deflation System   This system controls the airbag’s pressure to adjust the dam’s height, consisting of:   - **Air Compressors or Blowers**: Provide compressed air to inflate the airbag, with pressure regulators to maintain safe operating levels (typically 0.1–0.3 MPa).   - **Valves and Pipes**: Manage air flow—inflation valves introduce air, while deflation valves release air to lower the dam. Check valves prevent reverse air flow.   - **Pressure Sensors and Control Panels**: Monitor air pressure in real time and allow manual or automated operation, enabling precise adjustment of the shield plate’s height for water level regulation.

## 5. Sealing Components   To prevent water leakage, air shield dams incorporate specialized seals:   - **Rubber Gaskets**: Installed between the shield plate and airbag, and between the plate and channel banks, forming watertight connections.   - **Edge Seals**: Attached to the shield plate’s perimeter, they conform to the channel walls or adjacent structures, blocking water seepage around the dam’s edges.

## 6. Auxiliary Systems   - **Safety Devices**: Overpressure relief valves (to prevent airbag damage from excessive pressure) and emergency deflation systems (for rapid lowering during floods).   - **Monitoring Sensors**: Water level sensors, flow meters, and structural stress sensors to track performance and trigger alerts for maintenance or adjustments.

In summary, the air shield dam’s composition—integrating a flexible airbag, rigid shield plate, secure anchoring, precise inflation control, and reliable sealing—enables it to efficiently regulate water flow, adapt to varying hydraulic conditions, and balance functionality with ecological compatibility.
