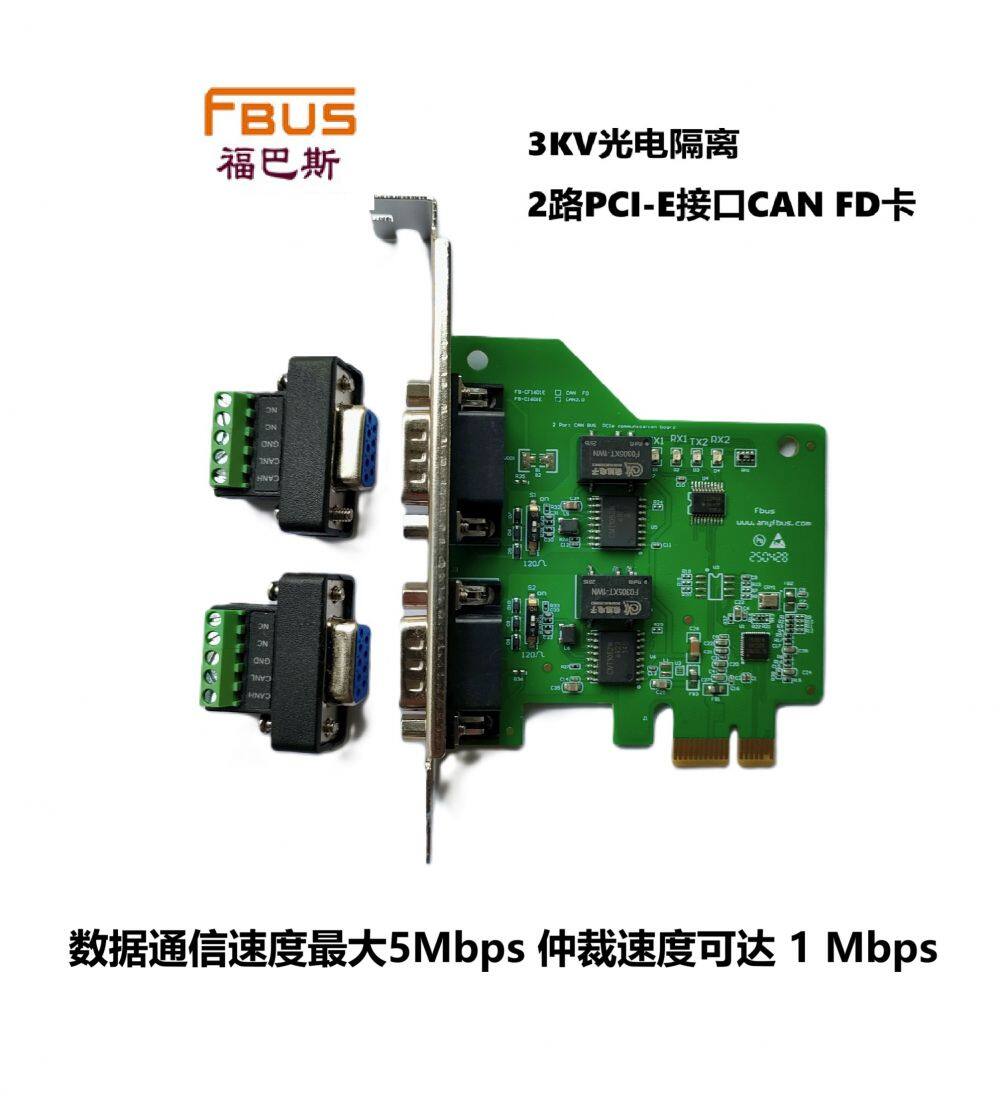

Hangzhou Huite FBUS PCIe CAN FD Card; 2-port CAN FD Card; Industrial-grade 2-port Isolated CAN FD Card

Model: FB-CF1601E

Name: 2-Port PCIe CAN FD Card

```2-channel PCIe CAN FD card, suitable for industrial automation manufacturing systems and system integration. The PCIe CAN FD bus card is compatible with any mainstream operating system, including Windows and Linux. The two CAN bus interfaces achieve independent 2.5KV opto-isolation, protecting the computer from the effects of ground loop currents and enhancing system reliability in harsh environments.```.

CAN FD bus is compatible with CAN 2.0 bus.

It provides a unified application programming interface and a comprehensive set of diverse application demonstration codes, including development examples for VC, VB, Delphi, and LabVIEW, facilitating user application development.

hardware

Interface: DB9 (public)

Suitable for 4U chassis installation

serial interface

Number of ports: 2

Interface standard: CAN (with 2.5K isolation)

ESD protection: Built in 15 KV ESD protection

CAN communication parameters

CAN signal

CANH、CANL、GND

performance

Baud rate: maximum data communication speed of 5Mbps

Arbitration speed can reach 1 Mbps

environment

Working temperature: -40 to 85 ° C

Working humidity: 5 to 95% RH

Storage temperature: -40 to 85 ° C

Supported operating systems

Windows2000/XP/2003/Vista/Win7/8/10/11

/Windows Server2008/2012/2016,

Linux 2.4 and above versions, as well as all Linux based distributed operating systems such as Red Hat/Ubuntu/Diaban/Kylin OS/Galaxy Kylin/Centos/Deepin, etc.

For detailed information please visit the official website or contact me for ffy@anyfbus.com.
