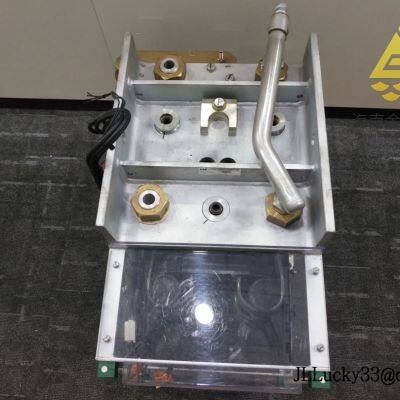

ABB S-093M 3BHB009885R0063 Phase Module – Precision power stage for ABB medium-voltage drives

The ABB S-093M 3BHB009885R0063 is a high-reliability phase module used in ABB medium-voltage drive systems, commonly within the ACS/PCS 6000 family. It combines advanced power electronic devices with ABB’s proven control strategies to deliver fast dynamic response, accurate speed/torque regulation, and stable operation under demanding loads. From my experience, this revision (R0063) is chosen when plants want the same mechanical footprint with improved serviceability and component updates.

• High-accuracy power conversion – Supports precise motor speed control and smooth torque delivery, even with fluctuating process loads.

• Fast transient response – Optimized switching and gate control allow quick recovery from step changes, which helps reduce process variability.

• Modular S?093M architecture – Drop-in form factor simplifies replacements and expansions; usually no cabinet rework is needed.

• Robust thermal design – Built for continuous-duty operation; thermal margins and monitoring points aid long-term reliability.

• Electrical isolation and noise immunity – Fiber?optic gate/control links minimize interference inside MV cabinets.

• Revision R0063 enhancements – This index typically reflects updated components and minor performance/maintainability tweaks while keeping mechanical compatibility within the S?093M family.

You might notice the strongest fit is in continuous?process industries where speed stability and uptime drive ROI:

• Oil & Gas and chemicals – Compressors, process pumps, and recirculation fans with tight process constraints

• Power generation – ID/FD fans, condensate and boiler feed pumps needing smooth ramping and high availability

• Metals & mining – Mill drives, conveyors, hoists where fast torque response reduces mechanical stress

• Marine – Propulsion and thrusters demanding reliable power delivery in harsh environments

• Water & wastewater – High?lift and intake pumping with energy optimization over long duty cycles

• Reliability that protects throughput – The S?093M platform is built for 24/7 service; failures tend to be rare when installed within spec.

• Compatibility – Mechanical and connection compatibility within the S?093M family streamlines spares stocking and changeouts.

• Lifecycle cost control – Shorter swap times and standardized parts usually reduce maintenance labor and production losses.

• Global support – ABB documentation and service coverage make procurement and commissioning more predictable.

A utilities customer told us a single?shift replacement was possible after pre?staging the module and verifying fiber routing—no rewiring of the control unit, just busbar torque checks and cooling circuit validation.

• Cabinet environment – Install in the designated ABB MV cabinet section; maintain clearance and use certified lifting gear for the heavy module.

• Wiring & terminations – Follow ABB torque specs for busbars; respect fiber?optic bend radius and avoid crush points during routing.

• Cooling – For liquid?cooled variants, flush and pressure?test the loop; verify flow, temperature, and coolant quality before energizing.

• Safety – Lockout/tagout, wait the specified discharge time for the DC link, and use ESD precautions for control connections.

• Routine care – Inspect for hot spots or discoloration, retorque connections per schedule, check coolant hoses/fittings, and review drive diagnostics logs. Firmware updates apply to the drive control unit; the phase module itself is typically passive.

• Manufactured within ABB’s ISO 9001 quality system

• CE marking at the complete drive system level

• UL/CSA compliance defined by the drive cabinet configuration

• RoHS alignment per ABB policy (region/BOM dependent)

• Warranty: typically 12 months from delivery under ABB standard terms when installed by qualified personnel
