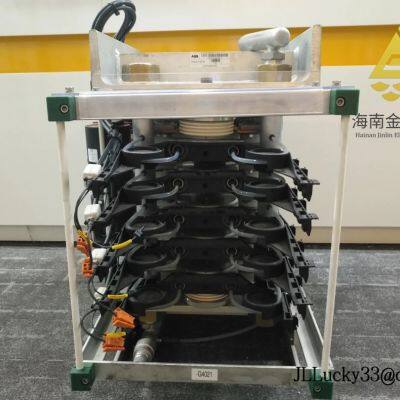

ABB S-093M 3BHB009885R0013 Phase Module – High-precision power stage for demanding drive systems

The ABB S-093M 3BHB009885R0013 is a heavy-duty phase module designed for ABB medium-voltage drive platforms. Paired with ABB’s control algorithms, it typically delivers fast response, precise torque and speed regulation, and very stable operation under fluctuating loads. From my experience, it’s chosen when uptime and predictable performance matter more than anything else.

• High-performance power semiconductors – Engineered for high accuracy and fast dynamic response, especially in critical process lines.

• Modular architecture – The S-093M format allows straightforward replacement and expansion, reducing downtime and simplifying lifecycle maintenance.

• Robust design for industrial duty – Built to handle thermal and electrical stress in 24/7 environments; stability and reliability are its core strengths.

• Optimized for ABB MV drive systems – Integrates with ABB’s control platform to achieve precise motor speed control and improved system efficiency.

• Service-friendly handling – Clear lifting points and busbar terminations support safer installation and faster on-site swaps.

• Isolation and safety in mind – Gate/control signals are typically fiber-optic, helping minimize noise and improve electrical isolation inside the cabinet.

You’ll typically see the S-093M used in ABB medium-voltage drives running:

• Compressors and pumps in oil & gas and chemicals (tight speed control under varying suction/discharge conditions)

• Large fans and blowers in power generation and HVAC for plants (stable operation across wide load ranges)

• Grinding mills, conveyors, and hoists in mining and metals (fast torque response helps with load changes)

• Marine propulsion and thrusters (smooth, reliable power delivery is key)

• Water and wastewater high-lift pumping (efficiency and predictive maintenance benefits)

• Reliability under stress – The module is engineered for continuous duty; downtime typically drops when swapping like-for-like ABB modules.

• Compatibility and lifecycle support – Works within ABB MV drive families; replacement planning and availability tend to be straightforward.

• Lower total cost of ownership – Modular spares mean faster changeouts and less production loss; energy performance is optimized by the ABB control platform.

• Service ecosystem – ABB’s global service network and documented procedures make commissioning and maintenance more predictable.

A maintenance lead from a metals plant told us their swap time dropped to a single shift after standardizing on this module format—no control rework, just careful busbar torqueing and fiber reconnection.

• Cabinet & mounting – Install inside the designated ABB cabinet section with proper clearances; use certified lifting gear for the ~190 kg unit.

• Wiring & terminations – Follow ABB torque specs for busbars; route fiber-optic links with minimum bend radius and protect from mechanical stress.

• Cooling – If liquid-cooled (typical on many MV systems), ensure correct coolant quality, flushing, and leak checks; verify flow and pressure before energizing.

• Environment – Keep ambient within host drive limits (typically 0–40°C) and ensure cabinet ventilation/filtration to limit dust ingress.

• Safety – De-energize, lockout/tagout, and discharge DC link capacitors. Wait the specified time before handling; observe ESD precautions for any connected electronics.

• Routine care – Periodically inspect connections for heat discoloration, check coolant hoses and fittings, clean filters, and review drive diagnostics. Firmware updates apply to the drive control unit, not the passive power module itself.

• Manufactured under ABB quality systems (ISO 9001)

• CE conformity at the complete drive system level

• UL/CSA recognition typically defined at the drive/system level

• RoHS compliance per ABB policy and region (check specific BOM)

• Warranty: according to ABB standard policy; in many cases 12 months from delivery when installed by authorized personnel
