Home > Products > gantry shear > Metal Chip Briquetting Machine Scrap Slags Recycling Machine Iron Oxide Recycling Pressing Machine

Metal Chip Briquetting Machine Scrap Slags Recycling Machine Iron Oxide Recycling Pressing Machine

FOB Price

US$ 18600

≥1 Sets

Port QINGDAO
Payment TermsT/T
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification	ISO, CE	Warranty	2 year
After-sales Service	engineer ready to serve	Screw	Other
Automation	Automatic	Knife Type	Piece Knife Crusher
capacity	300-400KG/H	area	15㎡
power	52KW	loading time	15 days
Transport Package	20GP	Specification	WL-T300 TURBO
Trademark	WALLE INDUSTRY	Origin	CHINA

Product Description

Basic Info.

Model NO.

WL-630 T

Type

Hydraulic Scrap Shears

Automation

Automatic

Hydraulic

630 Tons

Chamber mm

7000*2000*900

Cutting Length mm

1600

Frequency

4-5 Times/Min

Capacity

10-15t /H

Power Kw

55kw*3 PCS

Cooling Method

Oil and Air Conditionning

Cutting Cylinder

2500kN*2PCS

Transport Package

Standard Package

Trademark

walle industry

Origin

China

Production Capacity

20-25 Ton Per Hour

Product Description

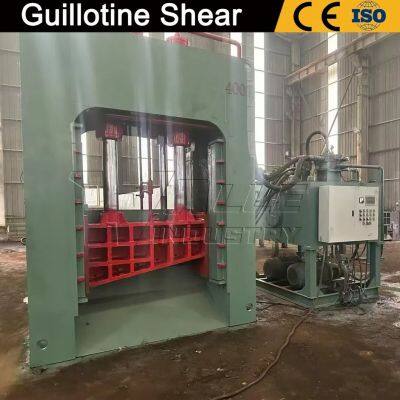

Powerful and robust metal waste cutting machine hydraulic scrap shear HSM gantry shear

hydraulic HMS shear is used to different low carbon steel and metal scrap, such as the car bodies, H beam etc to achive the cutting to satisfy melting purpose. Gantry plate shear also known as guillotine shear or cutting machine, its a specialized industrial machine used to cutting varries heavy metal, such as the compressed material, bulky material, its an essential tool in manufacturing, fabrication and metalworking industries. as it ensables the precise and effficient cutting of large shets or plates or the pipe into smaller piece

1. sectional feeding method, The front function is to compress the material into density, after that to incrase the density.
2. Machenical and automatic design , which is easy and simple to lean the operation
3. There is hydraulic cabinet controller, to ensuare the continue operation and uptime.
4. frame and the structure takes the robust desin to ensuare the enability and heavy duty of working.
5. The opening of the chamber box is large, suitable for machining materials, loose heavy waste, light and thin steel scrap, automobile bodies, large irregular light steel structure, steel pipe, steel plate, channel steel, I steel, steel bar and other profiles, its simple and efficiency to put the material into the chamber.
6.The gantary shear is reliable large flow logic valve control, independent filtration and cooling system, can ensure the system efficient and stable operation. The comprehensive application of constant power variable and differential fast technology can save about 30% while ensuring the output, and the energy consumption per ton of scrap steel processing is lower than the industry standard requirements.

model	max cutting force	chamber size	blade length	capacity	power	frequency
Q91-2500	250 tons	30001200900 mm	1200 mm	2-3 tons /h	30kw+30kw	3-5 times/min
Q91-3150	315 tons	500014001200 mm	1400 mm	3-4 tons/h	45kw+22kw	3-5 times/min
Q91-4000	400 tons	600014001200 mm	1400 mm	5-6 tons/h	45kw+45kw	3-5 times/min
Q91-5000	500 tons	60001600900 mm	1600 mm	6-8 tons/h	55 kw+55kw	3-5 times/min
Q91-6300	630 tons	70001600950 mm	1600 mm	10-15 tons/h	55kw+55kw+55kw	3-5 times/min
Q91-8000	800 tons	700020001100 mm	2000 mm	16-20 tons/h	45kw*6pcs	3-5 times/min
Q91-1000W	1000 Tons	800020001100 mm	2000 mm	20-23 tons/h	90kw*4 PCS	3-5 times/min
Q91-1250	1250 tons	800020001100 mm	2000 mm	24-30 tons/h	90kw*5 PCS	3-5 times/min
