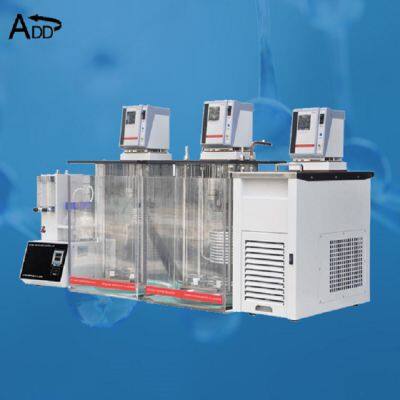

ASTM D892 Liquid-gas anti-foaming testing device

Foaming Characteristics of Lubricating Oils Tester  ASTM D892
(Electronic Flow Meter)

Product model: JF12579B

Product Introduction

This instrument is suitable for testing the anti-foam performance of lubricating oil.

Meet the relevant standard methods

? GB/T12579  Determination of Lubricating Oil Foam Characteristics

? ASTM D892 Standard Test Method for Foaming Characteristics of Lubricating Oils

? ISO6247 Petroleum Products - Determination of Foam Characteristics of Lubricating Oils

Technical Parameter

1. Applicable standards: ASTM D892, ISO6247, NFT60129

2. Temperature control method: PID digital temperature controller

3. Temperature control accuracy: ±1℃

4. Heating method: water bath heating

5. Power of the whole machine: 3KW

6. Working unit: 4 tubes

7. Flow control: electronic flow meter, LCD touch screen digital display

8. Timing method: LCD touch screen automatic timing

9. Working power supply: AC220V/50Hz

10. Temperature range: 24±1℃ 93.5±1℃

11. Instrument size: test box: 360*360*670mm;

circulating water bath: 240*510*670mm;

12. Net weight: 63KG

 Functional characteristics:

   ◆ The instrument is of split structure, including test host, air source control box, refrigeration cycle water bath;

  ◆High temperature resistant borosilicate glass cylinder, Φ 300 × 450mm, in conformity with the standard requirements;

◆ 360 ° transparent structure for easy observation;

◆Sputtered turbine stirrer ensures the uniformity of bath temperature;

◆Special clamping device can prevent the measuring cylinder from floating up without

pressing block;

◆Electronic flow meter, automatic control flow 94±5ml/min;

◆Touch screen operation and foam volume segment time buzzer reminder;

◆Air filter with molecular sieve;

◆ Imported OMRON PID temperature controller, digital display temperature with an

accuracy for 0.1 ℃;

◆Safety measures to prevent overheating or low liquid level.
