Home > Products > wood chipper > New Design Rotor Wheel Chassis Whole Tree Wood Log Wood Crusher Shredder
New Design Rotor Wheel Chassis Whole Tree Wood Log Wood Crusher Shredder
USD $18600
≥1 Set
- QINGDAO
- T/T
- 15 days
You May Like
-
Kowloon Hydraulic System Coconut Palm Chips Sawdust Machine Hammer Mill for Wood
-
Hot Selling Heavy Duty Straw Hay Chips Machine Making Sawdust Wood Crusher Hammer Mill
-
Machinery Heavy Duty Bamboo Wood Chips Wood Grinder Crusher
-
New Condition Waste Wood Chips Wood Sawdust Crusher Machine Heavy Duty Hammer Mill
-
Professional Manufacture Twigs Chips Wood Sawdust Producing Machine Industrial Hammer Mill
-
Hot Selling Bamboo Chips Sawdust Making Machine Industrial Wood Hammer Mill
Product Details
| Certification | ISO, CE | Warranty | 2 year | |
| After-sales Service | engineer ready to serve | Screw | Other | |
| Automation | Automatic | Knife Type | Piece Knife Crusher | |
| capacity | 300-400KG/H | area | 15㎡ | |
| power | 52KW | loading time | 15 days | |
| Transport Package | 20GP | Specification | WL-T300 TURBO | |
| Trademark | WALLE INDUSTRY | Origin | CHINA |
Product Description
Basic Info.
Model NO.
WL-1200
Automatic Grade
Full-Automatic
Warranty
1 Year
Power
160 Kw
Feeder
1200*400mm
Rotor Speed
480 Rpm
Cutter Material
H13
Dimension
6000*2950*1950mm
Weight
12000
Conveyor
6000*1400mm
Conveyor Power
4kw
Hydraulic System
3 Kw
Transport Package
Plastic Film
Trademark
walle industry
Origin
China
HS Code
8477209000
Production Capacity
10set/Month
Product Description

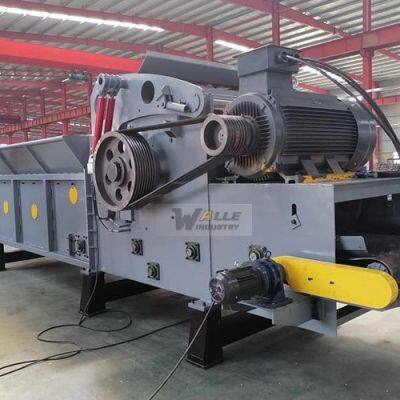

The wood chipper machine is a special equipment of biomass energy power plant for fuel reserve. With the widely raw material appliance, All kinds of trees, undersized log, timber cutting residues such as branches, wood processing residues (such as slab, batten, log core, building templates and so on), Also some non-wooden raw materials (such as waste of flax, reed, bamboo, maize straw, cotton stalk, etc.).
With the more than years manufacturer experience of wood drum chipper, According to the raw materials characteristics and biomass energy plant's requirement for material particle size, we designed and developed serious high output chippers. To ensure the uptime and operation, the motor and reducer are powerful and strong type.
Product Parameters
| MODEL | WL1000 | WL1300 | WL1600 | |
| FEEDER MM | 100*400 | 1300*400 | 1600*400 | |
| Main motor | 110kw | 160kw | 220kw | |
| Force feeder | 5.5kw*2 | 7.5kw*2 | 11kw*2 | |
| feeding convyor | Metal plate conveyor L4*W1 m | metal plate conveyor L4*1.2m | metal plate conveyor L6*w1.4m | |
| Cutter material | H13 OR D2 | |||
| Rotor diam. | 850mm | 850mm | 1000mm | |
| discharge motor | 1.5 kw | 2.2kw | 3kw | |
| Speed of rotor | 510 rpm | 510 rpm | 365 rpm | |
| working capacity | 8-45Tons per hour (decided by raw material) | |||
| weight | 9000 kgs | 12000kgs | 16000kgs | |
| dimension | 6000*2200*1750mm | 6000*2350*1750mm | 6000*2950*1950mm | |
Scope: wood raw material: timber, processing residue (branches, batten, log core, building templates, roots waste veneer etc.) particle board, fiber board.Non-wood raw material: sugarcane, reed, straw, etc.
Purpose: particle board factory, high density fiberboard, stubble factory, biomass power plant, wood factory,wood pellet manufacture.1.high performance H13 Special Customized Knives, and smoothly bites raw woods into chips with visible high throughput rate, and last much longer than normal crusher machines.
2.Main shaft specially fortified with thicker arc shell and Stainless Welded Layer against high load bumping & rotation, supporting LDBX-PF machine to run smoother and stabler.
4.The hydraulic system to asssit exchange the spare parts like the fence and cutters.
Company Profile
Henan Walle Industry Co., Ltd
Walle industry is an industrial equipment manufacturer & trader from China, with over 16 years of rich experience and unique knowledge, We help our customers around the world solve a variety of problems from crushing and screening all the way through different materials, we have remained dedicated to our values and to providing material processing solutions that improve the lives of people around the world.
