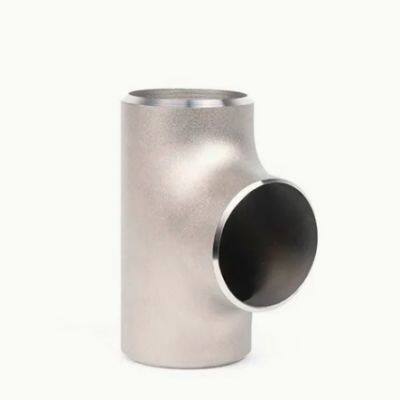

ASME B 16.9 Stainless Steel Butt Weld Equal Tee A403 Pipe Fitting

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Port NINGBO/SHANGHAI/TIANJIN/XIAMEN
Payment TermsT/T
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Stainless Steel	Type	Other
Technics	Casting	Connection	Welding
Wall Thickness	Other	Finish	Other
Application	Petroleum, Natural Gas, Water Dispose et	Transport Package	Wooden Cases, Pallets, Nylon Bags
Specification	customizable	Origin	China

Product Description

Product Name		Equal Tee
Certification		SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin		Shanghai China (Mainland)
Material	ASTM	Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.
		Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.)
		Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3
	DIN	Carbon steel:St37.0,St35.8,St45.8
		Stainless steel:1.4301,1.4306,1.4401,1.4571
		Alloy steel:1.7335,1.7380,1.0488(1.0566)
	JIS	Carbon steel:PG370,PT410
		Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
		Alloy steel:PA22,PA23,PA24,PA25,PL380
	GB	10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo
Standard Specification		ASTM,JIS,BS,DIN,UNI etc.
Connection		Welding
Shape		Equal
Technics		Forged
Qualification		ISO9001, API,CE
Equipment		Pushing Machine,Beveling Machine,Sand Blasting Machine
Thickness		Sch10-Sch160 XXS
Size		Seamless 1/2" To 24" Welded 24" To 72"
Surface of Finish		Antirust Oil,Hot Galvanized
Pressure		Sch5--Sch160,XXS
Standard		ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2
The third party inspection		BV, SGS, LOIYD, TUV, and other party alloyed by clients.
Remark		Also can supply IBR fittings and Specialized NACE & HIC Fittings
Marking		Registered logo,Heat Number,Steel Grade,Standard,Size
Minimum Order Quantity		1pcs
Supply Ability		3,0000pcs per month
Price		Depending on quantity
Payment Terms		T/T or Western Union or LC
Delivery Time		10-50 days depending on quantity
Packing		PLY-wooden case or pallet or as for clients' requirements
Application		Petroleum, chemical, machinery, electric power, shipbuilding, papermaking,
Advantages		1. 20 + years of production experience at your service. 2. The fastest delivery 3. The lowest price 4. Most comprehensive standards and materials for your choice. 5. 100% export. 6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc.

Parameter Category			Specific parameter
Dimension parameter	Nominal Diameter		DN15 (1/2"), DN20 (3/4"), DN25 (1"), DN32 (1 1/4"), DN40 (1 1/2"), DN50 (2"), DN65 (2 1/2"), DN80 (3"), DN100 (4"), DN125 (5"), DN150 (6"), DN200 (8"), DN250 (10"), DN300 (12"), DN350 (14"), DN400 (16"), DN450 (18"), DN500 (20"), DN600 (24") and so on.
	Outside Diameter		DN15 corresponds to 18mm, DN20 corresponds to 25mm or 26.7mm, DN25 corresponds to 32mm or 33.4mm, DN32 corresponds to 38mm or 42.2mm, DN40 corresponds to 45mm or 48.3mm, etc.
	Wall thickness		SCH5S, SCH10S, SCH20S, SCH30S, SCH40S, SCH60S, SCH80S, SCH100S, SCH120S, SCH140S, SCH160S and so on.
	Distance from the center to the end face		DN20 iso tee is 29mm; DN25 iso tee is 38mm; DN32 iso tee is 48mm and so on.
	Total length		usually the total length of iso tee is about 2 times of the distance from the center to the end face plus the length of the branch pipe, the reducer tee needs to be calculated according to the specific specifications, such as DN20×15 reducer tee the distance from the center to the end face is 29mm, if the length of the branch pipe is 30mm, the total length is about 88mm.
	Branch length		generally between 30mm-150mm, such as DN50 Tee branch length may be 50mm, DN100 Tee branch length may be 80mm. - Interface center distance: equal diameter tee interface center
	Interface center distance		equal diameter tee interface center distance according to the nominal diameter has a fixed proportional relationship, such as DN20 equal diameter tee interface center distance of 29mm; reducer tee needs to be determined according to the specific size, such as DN40 × 25 reducer tee, the main DN40 center distance from the end face distance of 57mm, the center distance from the end face of the branch DN25 distance is also 57mm.
Pressure Parameter	Nominal pressure		PN0.25MPa, PN0.6MPa, PN1.0MPa, PN1.6MPa, PN2.5MPa, PN4.0MPa, PN6.3MPa, PN10.0MPa, PN16.0MPa, PN25.0MPa, PN42.0MPa and so on.
	Shell test pressure		0.375MPa at nominal pressure PN0.25MPa; 0.9MPa at PN0.6MPa; 1.5MPa at PN1.0MPa, etc.
	Seal test pressure		0.275MPa for nominal pressure PN0.25MPa; 0.66MPa for PN0.6MPa; 1.1MPa for PN1.0MPa, etc.
	Working pressure		at different temperatures, the working pressure will change. Such as 304 material stainless steel tee, in 20 oC, PN1.6MPa working pressure of 1.6MPa; in 100 oC, the working pressure may drop to 1.4MPa or so, according to the material and medium characteristics to determine
Material Parameters	Common materials		304 (06Cr19Ni10), 304L (022Cr19Ni10), 316 (06Cr17Ni12Mo2), 316L (022Cr17Ni12Mo2), 321 (06Cr18Ni11Ti), 310S (06Cr25Ni20), duplex steel 2205, 2507, etc.
	Main alloying elements		- 304: Cr content 18%-20%, Ni content 8%-10.5%. - 304L: Cr content 18%-20%, Ni content 8%-12%, C content ≤ 0.03%. - 316: Cr content 16%-18.5%, Ni content 10%-14%, Mo content 2%-3 - 316L: Cr content 16%-18.5%, Ni content 12%-15%, Mo content 2%-3%, C content ≤0.03%. - 321: Cr content 17%-19%, Ni content 9%-12%, Ti content ≥ 5 × C%. - 310S: Cr content of 24%-26%, Ni content of 19%-22%
	Impurity content		- 304: C content of ≤ 0.08%, P content of ≤ 0.045%, S content of ≤ 0.03% - 304L: C content ≤0.03%, P content ≤0.045%, S content ≤0.03 - 316: C content ≤0.08%, P content ≤0.045%, S content ≤0.03 - 316L: C content≤0.03%, P content≤0.045%, S content≤0.03%, etc.
Manufacturing Parameters	Manufacturing process	Hydraulic expansion	suitable for less than DN400 standard wall thickness stainless steel tee, equipment tonnage, a high forming efficiency, can make the main pipe and shoulder wall thickness increase
		Hot pressing	suitable for DN400 and above or special wall thickness requirements of the tee, need to heat the billet to a certain temperature and then pressed in the mold mold forming
		Casting	Complex shaped tees can be manufactured, suitable for small batch, large size or complex structural requirements, relatively low cost, but the quality and performance is slightly inferior to forging and expansion tees.
		Forging	by applying pressure to the billet to make it shape, can improve the metal organization and performance, commonly used in high-pressure, high-temperature and other demanding working conditions of the tee manufacturing, good quality but high cost.
		Execution standards	GB/T 12459, GB/T 13401; American Standard ASME B16.9, MSS SP-79; German Standard DIN 2615; Japanese Standard JIS B2316; Chemical Standard SH3408, SH3409; Mechanical Standard HG/T21635 and so on.
	Surface treatment	Pickling and passivation	use acid to remove surface oxidized skin and impurities, and then passivation treatment to form a passivated film to enhance corrosion resistance, such as pickling with a mixture of nitric, passivation with chromic acid or nitric acid
		Polishing	Mechanical polishing can make the surface roughness reach Ra0.8-Ra1.6μm, electrolytic polishing can reach Ra0.2-Ra0.4μm, make the surface more smooth and beautiful, reduce the resistance of fluid.
		Paint spraying, plastic coating	spray paint can choose epoxy paint, polyurethane paint, etc., plastic coating can be used polyethylene, PTFE and other plastics, the thickness of the coating is generally in the range of 0.1mm-0.5mm, to play the role of anticorrosion, insulation and so on.
	Processing precision	Roundness	when the outer diameter is less than DN100, the allowable deviation is ±0.5%; when the outer diameter is greater than or equal to DN100, the allowable deviation is ±1%.
		Straightness	the deviation of straightness per meter length is not more than 1mm-2mm, such as DN200 tee with 2m length, the deviation of straightness is not more than 4mm.
		Port perpendicularity	the deviation of perpendicularity between the port and the axis is controlled at ±0.5°-±1° to ensure the sealing of the connection.

Zhongzheng Stainless Steel Co., Ltd. was established in 2018 with aregistered capital of 20 million yuan. lt is a manufacturing company thatintegrates the production of special materials, manufacturing andprocessing, sales, and technology development. The company covers anarea of 2,000 square meters and has 200 employees. it has built worldclass stainless steel seamless pipe (hot piercing, cold drawing, cold rollingproduction lines, precision steel pipe production lines, and large, mediumand small-sized welded pipe production lines. The company has beencommitted to providing high performance, high precision, hightemperature-resistant, high pressure-resistant, and corrosion-resistantsolutions and technical services for industrial equipment pipeline systems.The company specializes in producing a series of steel pipes, pipe fittingsflanges, etc., such as high-temperature (nickel-based) alloys, austeniticduplex steel, urea grade stainless steel, super stainless steel, etc. Thecompany is equipped with an annual production capacity of 5,000 tons ofstainless steel seamless pipe production line, 7,000 tons of welded pipeproduction line, and 500 tons of pipe fittings production line, etc. lt canoroduce stainless steel seamless pipes with diameters ranging from ?Φ?6 to?Φ?762 and wall thicknesses ranging from 0.5 to 70 mm, stainless steelwelded pipes with diameters ranging from ?Φ?15 to ?Φ?2200 and wallthicknesses ranging from 0.5 to 80 mm, pipe fittings, and various stainlesssteel ingots, round steel, rough pipes, etc., according to customerrequirements and in accordance with standards such as GB, ASTM, etc.
