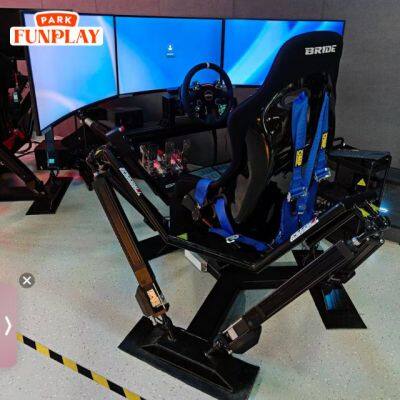

Professional Real F1 Racing Simulator Rig VR Ready Direct Drive Motion Platform for PC PS5 Xbox with 6-Axis Dynamic Feedback

Introduction:

1. High-Power Servo Motor System:

   Equipped with an integrated 48V DC low-voltage servo motor system, delivering powerful performance to ensure the seat responds rapidly and precisely to all commands, enabling smooth and seamless motion.

2. 300mm-stroke Stewart platform:

   ±270mm longitudinal displacement for expansive motion range, delivering ultra-realistic movement feedback.

   ±32° yaw rotation enables extreme drifting angles for dynamic scenarios.


   ±18° roll/pitch tilt precisely simulates multi-axis inclinations with immersive accuracy.

3. Significantly reduced energy consumption:

   Low-voltage power supply reduces energy conversion losses, increasing overall system efficiency by 5%-8%. This demonstrates both energy-saving advantages and cost efficiency for users, achieving the optimal balance between high performance and economy.


Industrial-grade durability guarantee:

1. High-precision bearings and lead screws:

   The electric actuator incorporates NSK bearings and imported ball screws, ensuring high precision and reliability of the seat's critical components. These premium-grade mechanisms provide a solid foundation for long-term stable operation.

2. Extended maintenance-free operation:

   Rigorously tested and validated, the electric actuator achieves 20,000 hours of maintenance-free operation. This significantly reduces user maintenance costs and downtime, delivering worry-free performance.

3. IP65-rated protection:

   IP65-rated connector. Effectively dustproof with splash-resistant capability.

4. EMC Shielding:

   Laboratory-validated EMC shielding design effectively blocks external signal/magnetic interference. Ensures stable device operation and data accuracy in complex electromagnetic environments, delivering reliable performance for end-users.

Low-Latency Architecture:

1. Ultra-fast sub-15ms response:

   With sub-15ms ultra-fast feedback, the force feedback seat delivers instantaneous response to commands, creating a seamless connection between user and seat. This ultra-low latency ensures fluid, real-time interaction for truly immersive experiences.

2. 65,535-step resolution:

   With 65,535-step resolution, the seat achieves exceptionally precise motion control. Compared to conventional systems, it delivers significantly more nuanced state transitions for richer, hyper-realistic feedback.

3. 256x higher precision than conventional systems:

   Compared to 256-step resolution devices, this system achieves a 256-fold precision improvement. This quantum leap enables hyper-accurate scenario simulation, delivering unparalleled immersion beyond conventional systems.

Intelligent Adaptive Algorithm:

1. Dynamic Load Compensation System Analysis:

   The force feedback seat's dynamic load compensation system continuously monitors load variations in real-time. It automatically adjusts operational parameters based on usage scenarios and user states to maintain optimal performance.

2. Real-time Torque Compensation Mechanism:

   The seat's real-time torque compensation mechanism precisely calculates and adjusts required torque when load conditions change, ensuring stable and accurate motion for consistently reliable performance.

Nine-Layer Protection Mechanism:

1. Undervoltage Protection:

   The undervoltage protection system detects low voltage conditions and takes immediate action to prevent operational failure or equipment damage, ensuring stable performance.

2. overspeed protection:

   The overspeed protection feature continuously monitors the seat's operating speed. If the speed exceeds preset safety limits, the system immediately activates safeguards to reduce velocity, ensuring complete operational safety.

3. overload protection:

   When the system detects a load exceeding preset thresholds, the overload protection immediately activates to automatically regulate current, preventing equipment damage and ensuring stable operation.

4. Position tolerance:

   The position tolerance system continuously monitors seat positioning. If deviation exceeds allowable limits, it triggers positional error protection and precisely corrects the seat's position to ensure both accuracy and safety.

5. Overcurrent protection:

   The overcurrent protection device constantly monitors the current level. When an abnormal current surge occurs, which could potentially damage the equipment, it quickly cuts off the circuit to prevent irreversible damage caused by overcurrent.。

6. Stall protection:

   The stall protection function quickly responds when detecting motor stalling, stopping related operations to prevent motor burnout caused by prolonged stalling, thereby extending the equipment's service life.

7. Parameter anomaly protection:

   The parameter anomaly protection mechanism continuously monitors all equipment parameters in real time. When any abnormal parameter is detected, it immediately activates protective measures to ensure the device operates within safe and stable parameter ranges.

8. Overvoltage protection:

   The overvoltage protection mechanism constantly monitors voltage levels. When excessive voltage is detected that may endanger the equipment, it responds instantly by automatically cutting off the circuit, effectively preventing potential damage caused by overvoltage.

9. Encoder Anomaly Protection:

   The encoder anomaly protection system continuously monitors the encoder's operating status in real time. Upon detecting any abnormality, it immediately takes action to prevent equipment malfunctions or safety risks caused by encoder failures.

Additional Protection Functions:

1. Three Custom Preset Groups:

   The seat offers three customizable preset settings, allowing users to switch between configurations based on personal preferences and different usage scenarios. Whether for high-speed racing or immersive flight simulation, it delivers optimal performance for every need.

2. ARGB Lighting Effects:

   Supports ARGB Sync for dazzling lighting effects that can be synchronized with other ARGB-compatible devices.

   (Create personalized lighting atmospheres tailored to your preferences and scenarios, enhancing both immersion and cutting-edge appeal.)

3. Racing/Flight :

   In Racing Mode, the seat simulates force feedback during acceleration, braking, and cornering for realistic driving immersion.

   In Flight Mode, it dynamically adjusts seating posture based on real-time aircraft movements, delivering true-to-life flight sensations.

4. OTA Remote Upgrade:

   Features OTA Remote Upgrade

   Cloud-based architecture enables seamless firmware updates

   Ensures optimal performance through continuous improvements

   Wireless update notifications with one-click installation

5. FlyPT/SimTools Support:

   The seat features auto-detection for FlyPT/SimTools with native protocol integration, enabling plug-and-play compatibility with professional simulation systems.

   Seamless immersion:

   Instant recognition in SimTools X-Sim ecosystem

   Synchronized motion with 6DOF platforms

   Precision force feedback tuning (0-100ms latency adjustment)

6. Wireless APP Control：

   Supports wireless control via smartphone/tablet app, eliminating the need for data cables.

   Through the app, you can effortlessly adjust seat travel range, response speed, and other parameters, switch between multiple driving modes, and utilize precise timing functions—all for a more convenient and flexible operation.

Supported Games：

    Racing Games

    DiRT Rally series

    F1 series (2015-2023)

    Live for Speed (S2/S3)

    WRC series

    Forza Horizon series

    Assetto Corsa

    rFactor 2

    World Touring Car Championship

    Euro Truck Simulator 2

    BeamNG.drive

    Flight/Aviation

    IL-2 Sturmovik: Cliffs of Dover Blitz Edition

    Microsoft Flight Simulator

    DCS World

    X-Plane series (11/12)

    Specialty Sims

    Vector 36 (Mars rover racing)

    MudRunner/Spin Tires

    Playnite (1032+ builds)  and other games

Software Configuration:

Packing:

After-sales service support:

About the payment:

1. Sign a formal contract.                                                                                                                                                      2. Make payment.                                                                                                                                                                      Payment terms : T/T. 30% deposit and 70% balance before shipment.                                                                                After paying 30% deposit, we will start 20-25 days production time. When everything is ready, we will start the inspection process.

    1) 72 hours non-stopping running test

    2) Inspection by our customr side: If possible, you can come to the factory in person or asking your friend in China for help. If not, we will send you video call , videos or photos to help you do the inspection beofre shipment.

After done the inspection, 70% balance are expecting to pay from you.
