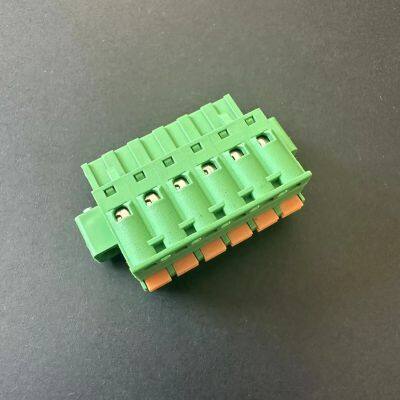

Plug-in Wiring Plug 2EDGKDM-5.08mm Pitch PCB Copper Flame-retardant Terminal Green Connector 2P-24P

Technical Parameter

Rated voltage: 300V Rated current: 10A

Wiring range: 24-12AWG

Voltage endurance: 1600V/1min

Rated impulse voltage: 4.0KV

Insulation material: PA66

Flame retardant grade: UL94V-0

Conductor material: Copper alloy

Surface coating of conductor: Tin plating

Spacing: 5.08mm Number of poles: 2-24P Stripping length: 10-11mm

Screw: M2.5 Torque: 0.4N. M

Working temperature: -40 ℃ to+105 ℃

Application scenarios

1. Industrial automation: In industrial automation production lines, stable and reliable connections are required between various electrical equipment. This terminal can meet the requirements of power transmission and signal transmission for production lines, ensuring the normal operation of equipment and improving production efficiency.

2. Power system: In the power system, a large number of terminals are required for power generation, transmission, and distribution. The high conductivity and stability of this terminal can ensure efficient power transmission, reduce energy loss, and ensure the safe operation of the power system.

3. Electronic devices: Terminals are also required for the internal circuit connections of electronic devices such as computers and mobile phones. The small and exquisite size and high performance of this terminal can meet the space and performance requirements of electronic devices, providing support for the miniaturization and high performance of electronic devices.
