Home > Products > hydraulic valve > hydraulic lock Bidirectional hydraulic lock, pipe-type hydraulic lock, cylinder pressure retention valve, hydraulic control check valve, tractor

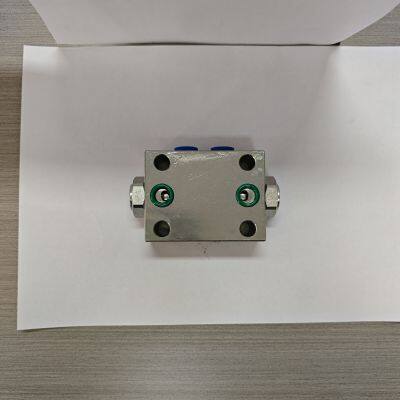

hydraulic lock Bidirectional hydraulic lock, pipe-type hydraulic lock, cylinder pressure retention valve, hydraulic control check valve, tractor
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- shanghai
- T/T L/C PayPal D/P Western Union Other
- 10 days
You May Like
-
Hydraulic Valve Group Hydraulic electromagnetic valve assembly non-standard plug-in valve oil circuit block - Oil pressure integration block
-
American Moog proportional valve G761-3005/3033B / G631-3006B - Moog electro-hydraulic servo valve
-
Tracheal throttle valve quick connector cylinder speed control valve adjustable sl4 6 8 10 12 - M5 01 02 03 04
-
Tubular overflow valve pressure regulating valve YF-L20H4-S hydraulic station hydraulic machine pressure valve YF-L32H4-S hydraulic valve
-
Customized Hydraulic Cylinder for Rolling Mill oil cylinder
-
Customized Hydraulic Cylinder for Tension Leveler oil cylinder
Product Details
| Type | Directly Operated Type | Function | Balance, Pressure Regulating, Flow Control | |
| Drive | Hydraulic | Installation | Threaded Cartridge | |
| Transport Package | wooden case | Specification | CEDA-14MFL | |
| Trademark | hongda | Origin | china |
Product Description
| Product title | hydraulic lock |
| Product Description | |
| Brand | HongDa Hydraulics |
| Model Number | CEDA-14MFL |
| Weight | 1.3Kg |
| Dimension | 100*66*33 |
| Core Component | Valve core, seal |
| Operating Temperature | -25°~80° |
| Maximum Working Pressure | 320bar |
| Oil Pump Flow Rate | 25L/min |
| Mounting Style | plate |
A hydraulic lock is a device used to lock a specific position in a hydraulic system. It can maintain the pressure or position of the system without any external power input. Hydraulic locks are widely used in construction machinery, agricultural machinery, ships, and other fields to ensure the stability and safety of the system under specific working conditions. The working principle of a hydraulic lock mainly relies on the neutral function of the slide valve type directional control valve and the locking function of the one-way valve. When the system needs to be locked, the hydraulic lock closes the liquid flow channel to prevent the flow of liquid, thereby maintaining the pressure and position of the system.
