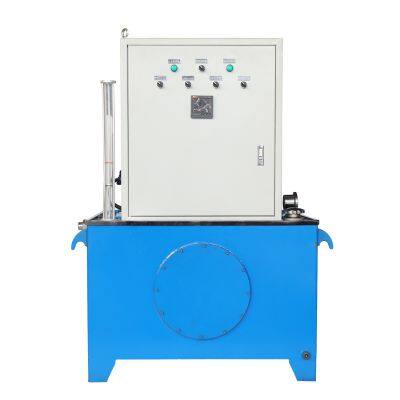

Hydraulic Pump Motor Station
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- shanghai
- T/T L/C PayPal D/P Western Union Other
- 30 days
You May Like
-
hydraulic lock Bidirectional hydraulic lock, pipe-type hydraulic lock, cylinder pressure retention valve, hydraulic control check valve, tractor
-
Hydraulic Valve Group Hydraulic electromagnetic valve assembly non-standard plug-in valve oil circuit block - Oil pressure integration block
-
American Moog proportional valve G761-3005/3033B / G631-3006B - Moog electro-hydraulic servo valve
-
Tracheal throttle valve quick connector cylinder speed control valve adjustable sl4 6 8 10 12 - M5 01 02 03 04
-
Tubular overflow valve pressure regulating valve YF-L20H4-S hydraulic station hydraulic machine pressure valve YF-L32H4-S hydraulic valve
-
Customized Hydraulic Cylinder for Rolling Mill oil cylinder
Product Details
| After-sales Service | Online services | Transport Package | wooden box | |
| Specification | HD-L450GZ5.5x2J | Trademark | hongda | |
| Origin | china |
Product Description
| Product title | Hydraulic Pump Motor Station |
| Product Description | A hydraulic pump motor station is a crucial component in hydraulic systems, serving to generate the necessary fluid flow and pressure to power various hydraulic machinery. |
| Product Name | Hydraulic Station |
| Brand | HongDa Hydraulics |
| Model Number | HD-L450GZ5.5x2J |
| Weight | 759Kg |
| Dimension | 1500*1100*1200 |
| Core Component | motor, oil pump, accumulator, valve block |
| Applicable Industries | Engineering Machinery Hydraulic Cylinder |
| Operating Temperature | -20°~100° |
| Maximum Working Pressure | 12-16Mpa |
| Power | 5.5kw*2 |
| Oil Pump Flow Rate | 16L/min |
| Tank Capacity | 435L |
| Mounting Style | |
| Paint | customization acceptable |
| Working Medium | hydraulic oil |
This station typically consists of an electric motor coupled with a hydraulic pump. The electric motor converts electrical energy into mechanical energy, which, in turn, drives the hydraulic pump to pressurize hydraulic fluid. The pressurized fluid is then distributed throughout the hydraulic system to actuate cylinders, motors, or other hydraulic components. The hydraulic pump motor station is integral to the overall functioning of hydraulic systems in various applications, including industrial machinery, construction equipment, and hydraulic power units, providing the force needed for tasks such as lifting, pushing, or rotating heavy loads with precision and control.
