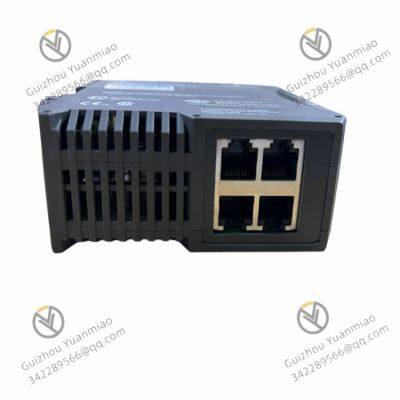

Emerson KJ1740X1-BA1 HART communication module

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other	Certification	Other
Function	Other	Condition	Other
Task	Other	Mathematical Model	Other
Signal	Other	Customized	Other
Structure	Other

Product Description

Emerson KJ1740X1-BA1 HART communication module

KJ1740X1-BA1 is a HART communication module in the DeltaV Distributed Control System (DCS). It is used to connect HART protocol-supported intelligent instruments (such as pressure transmitters, temperature sensors, flow meters, etc.), realizing the dual functions of analog signal acquisition and digital communication. The detailed introduction is as follows:

Functional Characteristics
HART Protocol Support
It is compatible with HART 5/6/7 protocols and can simultaneously process 4-20mA analog signals and superimposed digital communication signals.
It supports multi-variable measurement (for example, a pressure transmitter can transmit pressure value, temperature compensation value, and device status at the same time).

High-Density I/O Design
It usually provides 4 or 8-channel configurations, and each channel independently supports HART intelligent instruments, reducing the number of modules and cabinet space.

Intelligent Device Management
It can access the diagnostic information, configuration parameters, and historical data of HART devices through the DeltaV system.
It supports remote configuration of devices (such as modifying ranges, zero calibration) without on-site operations.

Signal Isolation and Anti-Interference
There is electrical isolation between channels (usually 500Vrms) to prevent signal crosstalk and the impact of ground loops.
It has a built-in filter circuit to suppress radio frequency interference (RFI) and electromagnetic interference (EMI).

Fault Diagnosis and Alarm
It real-time monitors the HART communication status (such as signal quality, device offline) and prompts maintenance personnel through system alarms.
It supports loop integrity testing to detect cable disconnection or short-circuit faults.

Working Principle

Signal Acquisition
It collects the 4-20mA analog signals of HART instruments, converts them into digital quantities, and then transmits them to the DeltaV controller.
At the same time, it demodulates the HART digital communication signals superimposed on the current signals through FSK (Frequency Shift Keying) technology to obtain device parameters (such as range, unit, diagnostic code).

Communication and Data Processing
It communicates with the controller through the DeltaV system bus (such as PROFIBUS DP, Ethernet) and integrates HART device data into the control system.
It supports periodic polling or event-triggered methods to obtain device data, with a response time usually less than 100ms.

Device Configuration and Maintenance
Engineers can access the Device Description (DD) files of HART devices through DeltaV software to configure instrument parameters or view diagnostic information.

Application Scenarios
Chemical and Petrochemical Industry
It connects intelligent pressure/temperature transmitters to realize accurate monitoring of reaction kettles and pipelines.
It obtains the fault diagnosis information of instruments (such as sensor aging, diaphragm blockage) through HART communication.

Power Industry
It collects data from intelligent electric meters and flow meters to support energy management and cost accounting.
It remotely configures instrument parameters to reduce shutdown maintenance time.

Pharmaceutical and Food Industry
It connects intelligent instruments such as pH meters and level meters to meet the audit trail requirements of GMP compliance.
It real-time monitors the calibration status and running time of instruments.

Water and Environmental Protection Industry
It reads multi-parameter data (such as pH, turbidity, dissolved oxygen) from water quality analyzers through the HART protocol.
It supports remote instrument firmware upgrading to reduce operation and maintenance costs.

Technical Parameters
Power Supply: 24VDC ±10%, redundancy optional
Number of Channels: 4 or 8-channel HART input
Analog Accuracy: ±0.01% or higher
HART Communication Rate: 1200bps
Operating Temperature: -40°C ~ 70°C
Protection Rating: IP20 (must be installed in a control cabinet)
Certifications: ATEX, IECEx (explosion-proof type optional)
