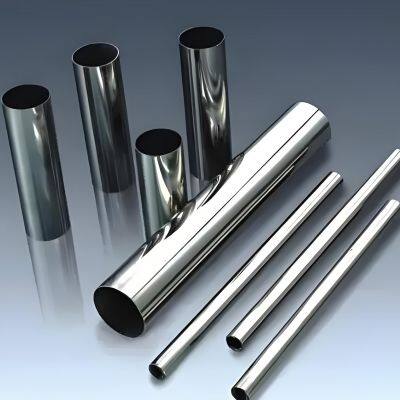

ASTM A213/A213M/ ASTM A312/A312M Tp309/Tp309s/Tp309h Seamless Stainless Steel Tube (UNS30900)

• In summary, UNS S30900 pipes offer reliable strength and durability in challenging environments across various industries!




• 309 stainless steel pipes are suitable for food processing equipment and pulp & paper applications.

• Their durability and resistance to corrosion are advantageous.

• Industries dealing with cryogenic environments benefit from 309 stainless steel pipes.

• Their mechanical properties remain stable at extremely low temperatures.

• Due to their corrosion resistance and strength, 309 stainless steel pipes are used in automotive exhaust systems.

• They handle high temperatures and exposure to corrosive gases.

• 309 stainless steel pipes are employed in industrial furnaces for components like burners, retorts, and conveyor belts.

• Their ability to withstand elevated temperatures ensures reliable performance.

• In FGD systems, which remove sulfur dioxide from flue gases, 309 stainless steel pipes are essential.

• Their resistance to oxidation and high temperatures makes them suitable for this application.

• 309 stainless steel pipes are commonly used in boiler parts due to their high-temperature resistance and

•  excellent corrosion resistance.




• EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)

• Raw Materials Certificate

• 100% Radiography Test Report

• 100% PMI

• Heat Treatment Charts

• Third Party Inspection Report

• Surface roughness and size measurement

• Manufacturer Test Certificate( Impact Testing, Flatten, Spin,Curve, Hardness, Intergranular ,Point corrosions, Grain size, ET,UT, HT...)

• Laboratory Test Certificate from Govt. Approved Lab

• ......

• BE : Beveled end

• BBE : Bevel both ends

• BLE : Bevel large end

• BSE : Bevel small end

• TOE / POE = Treaded One End / Plain One End

• TOE / BOE = Treaded One End / Beveled One End

• POE / BOE = Plain One End / Beveled One End

• TBE = Treaded Both Ends

• PBE = Plain Both Ends

• Ply Wooden Boxes

• PE Fabric Bundles

• Standard seaworthy export packing

• Plastic Bags, or as required

• Supplier / Manufacturer Name or Custom Logo - on request

• Specification

• Material Grade

• Nominal Size

• Schedule or Wall Thickness

• Method of Manufacturing (Seamless or Welded)

• Heat Number

Marked Pipe Sample: XTD ASTM A312  TP309S  SEAMLESS 42.2x 3.56*6000MM HEAT NO. 2023121205A15

TP309 Stainless Steel Tubing are austenitic chromium-nickel ss that provide excellent corrosion resistance and heat resistance plus good strength at room and elevated temperatures. The lower nickel content of 309 tubes improves resistance to sulfur attack at high temperatures. The high chromium and nickel content of SUS 309 Pipe & tubes provides comparable corrosion resistance, superior resistance to oxidation, and the retention of a larger fraction of room temperature strength than the common austenitic 304.

The steel resists oxidation up to 1900°F (1038°C) under non-cyclic conditions
Because of its high chromium and low nickel content, 309 can be utilized in sulfur containing atmospheres up to 1832°F (1000°C). The steel is not recommended for use in highly carburizing atmospheres since it exhibits only moderate resistance to carbon absorption. 309 can be utilized in slightly oxidizing, nitriding, cementing and thermal cycling applications, albeit, the maximum service temperature must be reduced.
