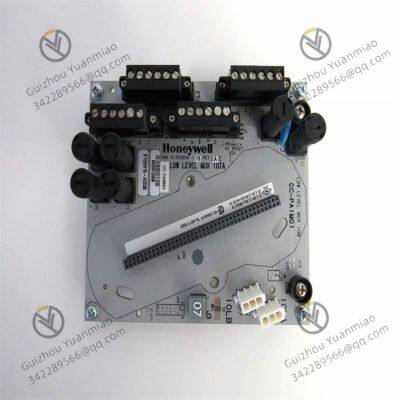

Honeywell CC-TAIM01 Analog Input Module

Input Types: Supports multiple types such as voltage, current, thermocouple, and RTD. The voltage input ranges include ±10V, ±5V, etc.; the current input ranges are 0-20mA, 4-20mA; the thermocouple can support multiple types such as J, K, T, etc.; the RTD supports Pt100, Pt500, etc., and can be connected in 2-wire, 3-wire or 4-wire systems.

Resolution: 16-bit, capable of providing accurate signal conversion.

Sampling Rate: Configurable, up to 100ms per channel.

Isolation Voltage: 500VDC.

Operating Temperature: -40°C to +70°C.

Storage Temperature: -40°C to +85°C.

Relative Humidity: 5% to 95% (non-condensing).

Power Consumption: Typical value is 2W.

Installation Method: DIN rail mounting.

High Channel Density: The module can provide up to 16 independent input channels, which can reduce the cost per input point and save system space and wiring.

Flexible Input Types: It can receive various analog signals, adapt to different on-site instruments and application requirements, and simplify spare parts management and system design.

High Precision: The 16-bit resolution can ensure that the control system obtains accurate process data, which helps to improve product quality and process stability.

Strong Reliability: It can operate stably in a wide temperature range and high humidity environment. The module has an integrated isolation function, which can effectively protect the control system from interference from on-site signals.

Easy Integration and Configuration: It seamlessly integrates with the ControlEdge? PLC system and can be simply and intuitively configured through Honeywell's configuration tools, reducing the complexity of system integration and shortening the debugging time.

Petrochemical Industry: In oil refineries, the CC-TAIM01 module can be used to monitor parameters such as temperature, pressure, and flow of distillation towers. By collecting these analog signals in real-time, converting them into digital signals and transmitting them to the control system, operators can accurately grasp the operating status of the distillation process, adjust operating parameters in a timely manner, ensure stable product quality, and improve oil refining efficiency.

Power Industry: In thermal power plants, this module can be used to monitor the status of key equipment such as boiler temperature, steam turbine vibration, and transformer oil temperature. For example, thermocouple signals from different positions in the boiler are connected to the CC-TAIM01 module to obtain real-time boiler temperature data, which provides a basis for boiler combustion control and safe operation, prevents faults such as boiler overheating, and ensures the safe and stable operation of the power system.

Pharmaceutical Industry: Pharmaceutical production has strict requirements on environmental parameters. The CC-TAIM01 module can be used to monitor and record parameters such as temperature and humidity in the production workshop. The signals of temperature and humidity sensors are input into the module, and after processing, the module transmits the signals to the control system. Once the parameters exceed the set range, the system can send an alarm in time and automatically adjust related equipment to meet the requirements of Good Manufacturing Practice (GMP) and ensure drug quality.

Food and Beverage Industry: In food and beverage production lines, the CC-TAIM01 module can be used to monitor parameters such as temperature and pressure of sterilizers, and liquid flow in the filling process. For example, during the sterilization process, it accurately collects the temperature and pressure signals in the sterilizer to ensure the sterilization effect and avoid excessive sterilization affecting product quality; during filling, it realizes precise filling by monitoring the flow signal, reduces material waste, and improves production efficiency and product quality.

Water Treatment Industry: In waterworks, the CC-TAIM01 module can be used to monitor parameters such as the water level of sedimentation tanks, the inlet and outlet pressure of filtration equipment, and the flow of clear water tanks. The relevant sensor signals are connected to the module to provide data support for the automatic control of the water treatment process, realize precise control of equipment such as dosing systems and water pumps, and ensure that the water quality meets the standards and the water supply is stable. In sewage treatment plants, it can be used to monitor parameters such as sewage flow and sludge concentration, helping to optimize the operation of sewage treatment processes.
