Home > Products > HONEYWELL > Honeywell CC-TAID01 Analog Input Module

Honeywell CC-TAID01 Analog Input Module

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other	Certification	Other
Function	Other	Condition	Other
Task	Other	Mathematical Model	Other
Signal	Other	Customized	Other
Structure	Other

Product Description

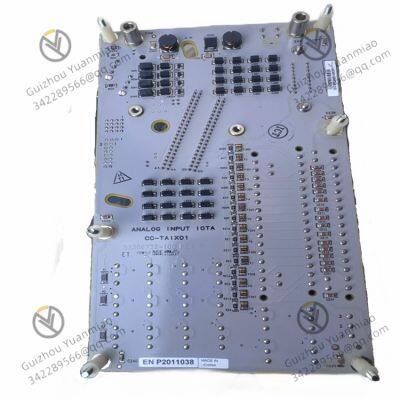

Honeywell CC-TAID01 Analog Input Module

Honeywell CC-TAID01 is an analog input module, which is part of Honeywell's C300 controller system. It is used to convert various on-site analog signals (such as signals output by sensors for temperature, pressure, flow, etc.) into digital signals for processing and analysis by the control system. The following is a detailed introduction:

Basic Parameters

Model: CC-TAID01
Number of Channels: Usually 8 channels (capable of collecting 8 channels of analog signals simultaneously)
Input Signal Types: Supports multiple signal types, including:

Thermocouples (such as J, K, T, E, R, S, B types, etc.)
Thermal resistors (such as PT100, Cu50, etc.)
Voltage signals (such as 0-10V, ±10V, etc.)
Current signals (such as 4-20mA, 0-20mA, etc.)

Resolution: Usually 16 bits or higher, providing high-precision signal acquisition
Sampling Rate: Depending on the configuration, it can reach several to dozens of samples per second
Operating Temperature Range: -40°C to +85°C (industrial-grade standard)
Power Requirement: 24VDC (usually powered uniformly by the system backplane)

Functional Characteristics

Multi-signal Compatibility
The module has a built-in programmable signal conditioning circuit, which can be configured through software to adapt to different types of sensor inputs without hardware jumpers, improving flexibility.
High-precision Signal Processing

Uses a high-precision A/D converter to reduce signal acquisition errors.
Supports cold junction compensation (for thermocouple inputs) to ensure the accuracy of temperature measurement.
Has a built-in digital filtering function to suppress high-frequency interference and improve signal quality.

Isolation Design

Electrical isolation between input channels and the system backplane (usually optocoupler or transformer isolation) to prevent on-site interference from entering the control system.
Mutual isolation between input channels to avoid crosstalk between channels.

Fault Diagnosis and Alarm

Supports channel-level fault detection (such as disconnection, over-range, sensor failure, etc.).
Can feed back the module status in real-time through LED indicators or system software.

Hot-swappable Capability

Supports hot swapping (requires system support), facilitating maintenance and replacement of the module and reducing system downtime.

Application Fields

Industrial Automation: Collects on-site analog parameters such as temperature, pressure, and liquid level for process control and monitoring.
Energy Management: Monitors parameters such as pipeline flow and equipment temperature in industries such as electric power, petroleum, and chemical engineering.
Environmental Monitoring: Connects various environmental sensors to collect data such as temperature, humidity, and gas concentration.
Manufacturing Industry: Real-time monitoring of process parameters in production lines to ensure the stability of product quality.

Collaboration with C300 System

As an expansion module of the C300 controller, CC-TAID01 communicates with the main controller through the system backplane bus (such as Honeywell's SCnet II or DEHnet), transmits the collected analog data to the controller for logical processing, and can be configured and monitored through control system software (such as Experion PKS).

Typical Configuration and Wiring

The module is usually installed on a DIN rail, facilitating integration into the control cabinet.
Each input channel is connected to an external sensor through a terminal block, and the wiring method is adjusted according to the signal type (thermocouple, thermal resistor, current/voltage).
Supports redundant power input to improve reliability.

Summary

The core advantages of the CC-TAID01 module lie in its high precision, multi-signal compatibility, and strong anti-interference ability. It is suitable for industrial scenarios with strict requirements for analog signal acquisition, and performs excellently especially in complex control systems that need to handle multiple sensor types simultaneously.
