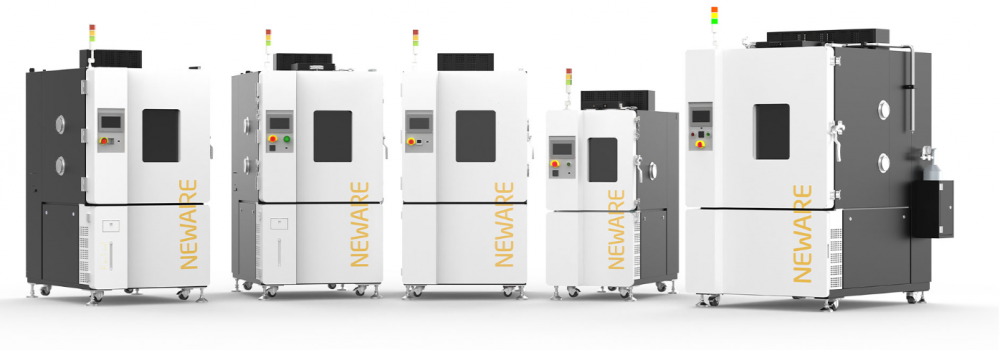

Neware High and Low Temperature Chamber 200L Environmental Test Chamber for Battery

Hi,This is Ellie from  Neware Technology Company, a leading battery testing equipment manufacturer founded in 1998. From cell to module to pack, Neware testers are widely used by battery manufacturers, lab researchers, company engineers, battery technology, and battery applications. Thus far, Neware has provided flexible, high-accuracy battery testing equipment to more than 32,000 customers worldwide. Partners love the stable, cost-effective battery testing equipment and Neware's great service.

Our solutions—including battery testers, cyclers, and environmental chambers—are widely used by industry leaders like ATL, CATL, and LG for cell (3C/EV), module, and pack testing.

Why Neware?

? Proven reliability – Trusted by top-tier battery manufacturers

? End-to-end testing – From R&D to production line validation

? Customizable solutions – Tailored to your specific requirements

Order classification: The price for the battery tester above is only for reference, please contact me at chengli@neware.com.cn

Warranty: 1 year free; Maintenance: lifetime. We offer worldwide after-sales service.

Delivery: 7days after deposit

Contact information: Ellie  Email:  chengli@neware.com.cn

As the manufacturer, contact me for the most competitive pricing and efficient service tailored to your needs.

This chamber provides Wide-range temperature control and high-low temperature battery testing.  This chamber can also integrate with our battery testing system to test battery performance at specific temperatures.

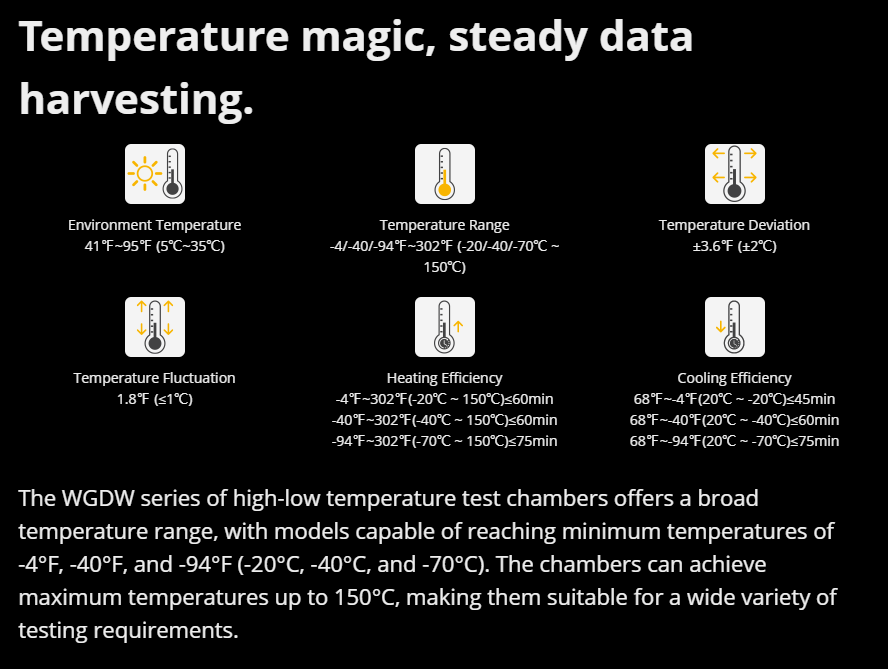

Technical Specifications

Capacity: 100L / 200L / 400L / 800L / 1000L

Testing Standard: GB/T 5170.2-2017

Temperature Range:-20℃ to +150℃/-40℃ to +150℃/-70℃ to +150℃

Temperature Fluctuation: ≤ ±0.5°C (no load, under stable conditions)

Temperature Uniformity: ±2.0°C (no load, under stable conditions)

Heating Rate: +20°C → +150°C ≤ 60 min (no load, average non-linear)

Cooling Rate:+20°C → -20°C ≤ 45 min

+20°C → -40°C ≤ 60 min

+20°C → -70°C ≤ 75 min (no load, average non-linear)

Temperature Deviation: ±2.0°C (no load, under stable conditions)

Safety Features:Explosion-proof pressure relief port

Smoke detection with automatic/manual exhaust function

Test Condition Temperature: +25°C

More information about the technical specification please contact me.

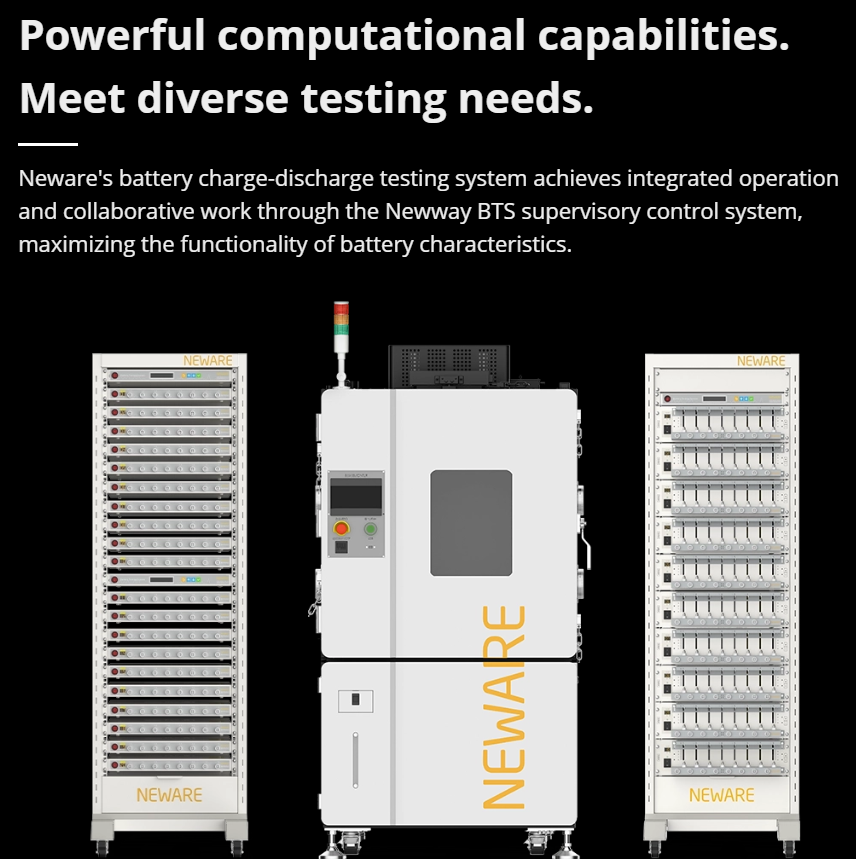

About Neware： Neware Technology,  a leading battery testing equipment manufacturer founded in 1998. From cell to module to pack, Neware testers are widely used by battery manufacturers, lab researchers, company engineers, battery technology, and battery applications. NEWARE offers charge/discharge battery testing systems ranging from μA single cell applications up to 300kw packs. Thus far, Neware has provided flexible, high-accuracy battery testing equipment to more than 32,000 customers worldwide. Partners love the stable, cost-effective battery testing equipment and Neware's great service.
