Home > Products > plastic recycling machines > Plastic Pipe PP Pet Film Rubber Head Material Shredder & Granulator High Output and Efficiency Recycling Machine

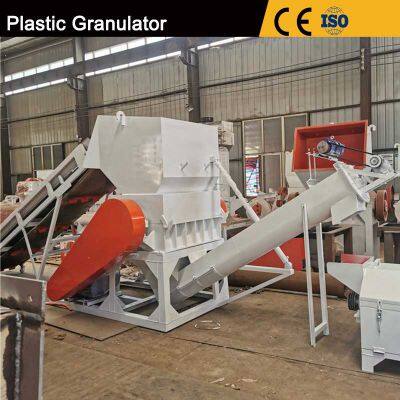

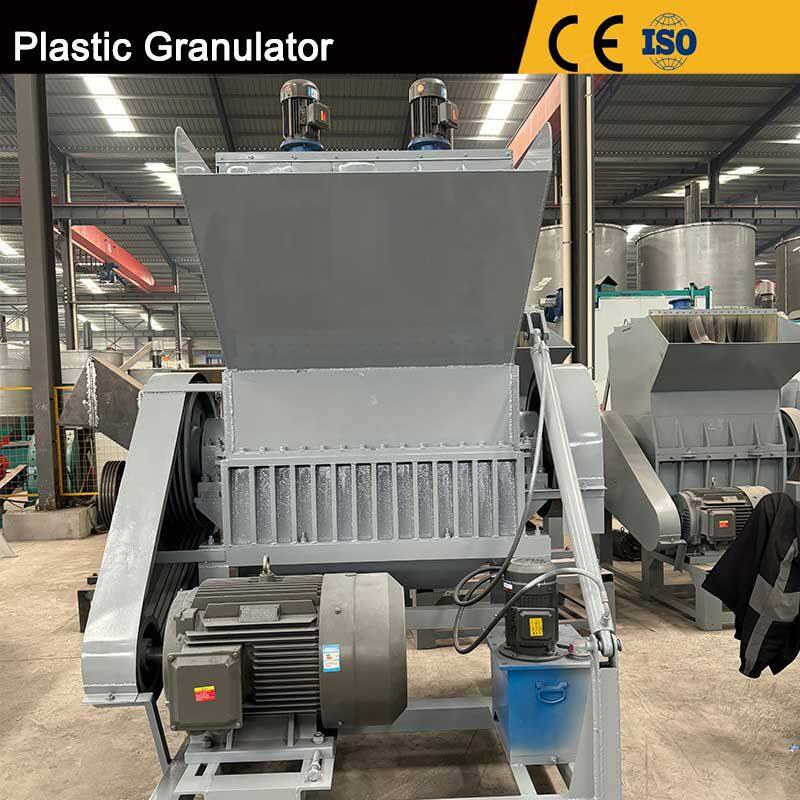

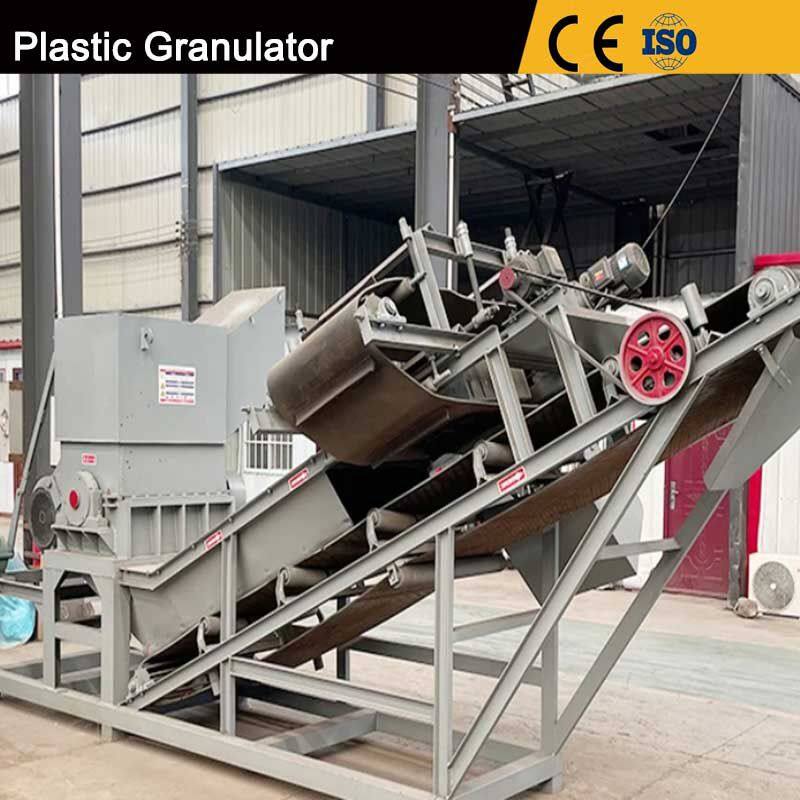

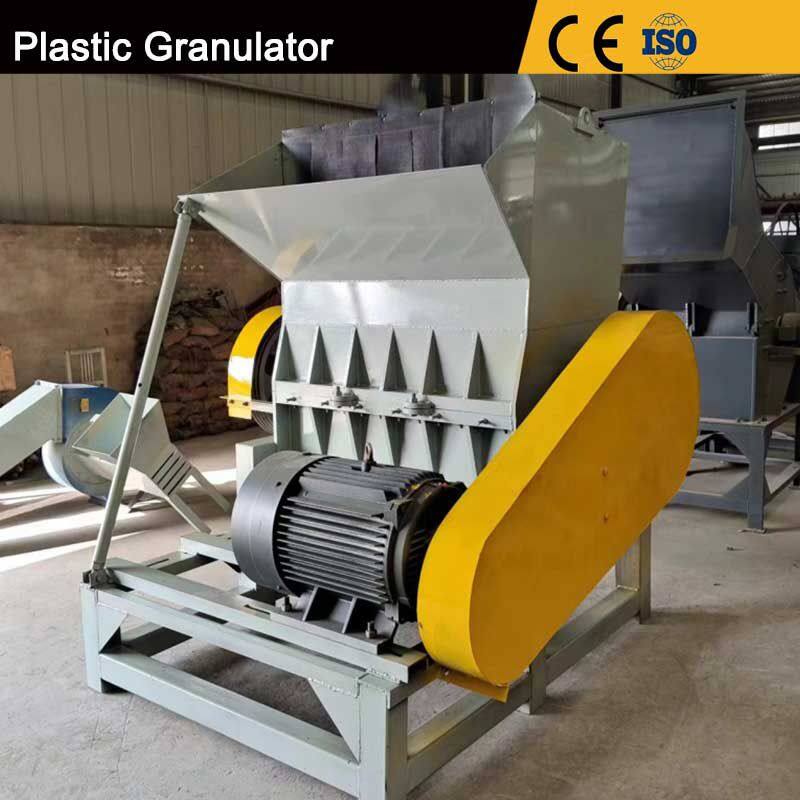

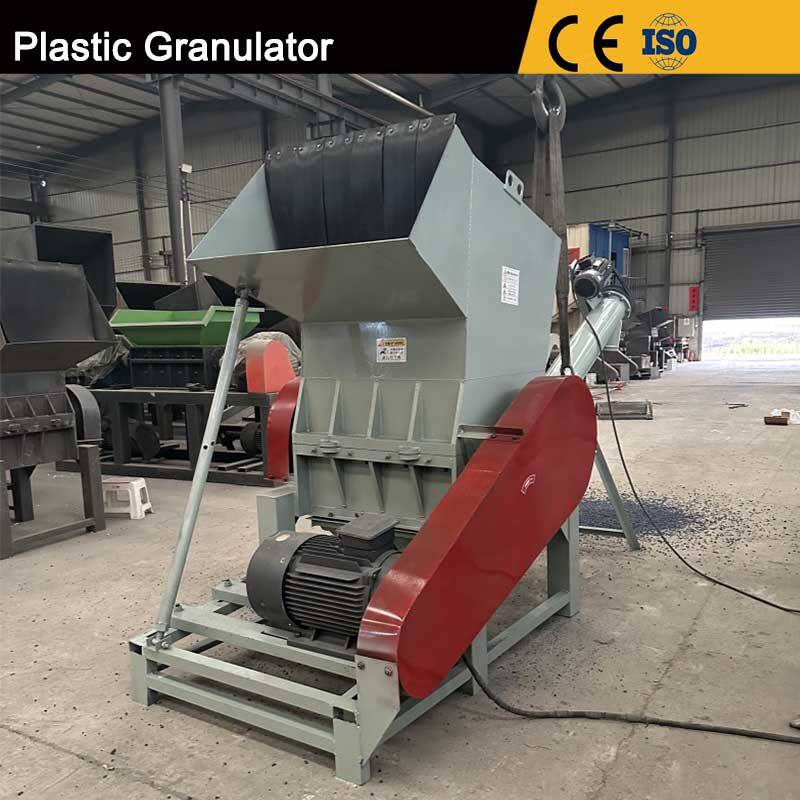

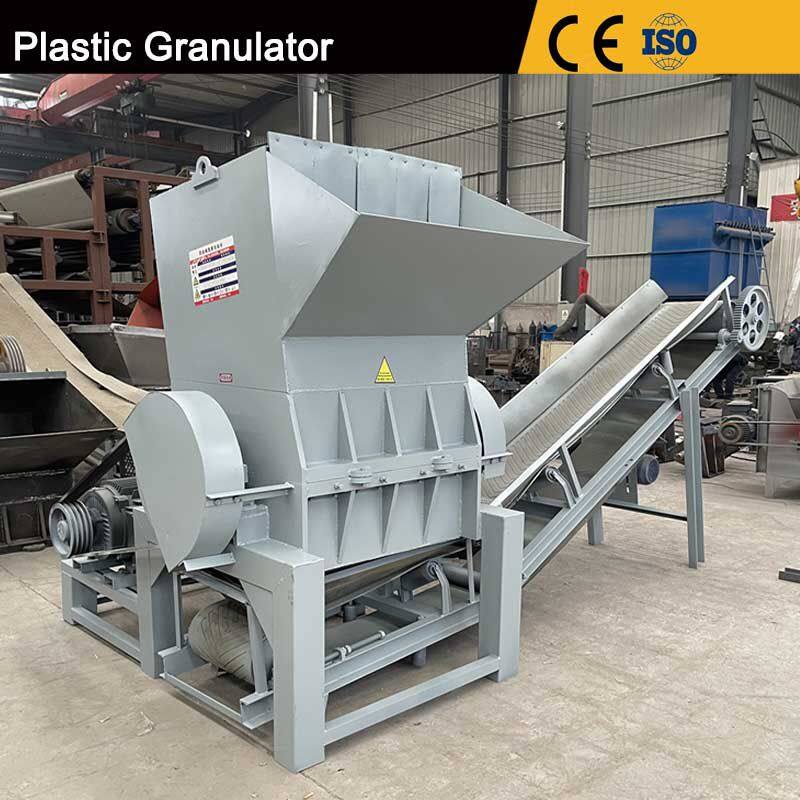

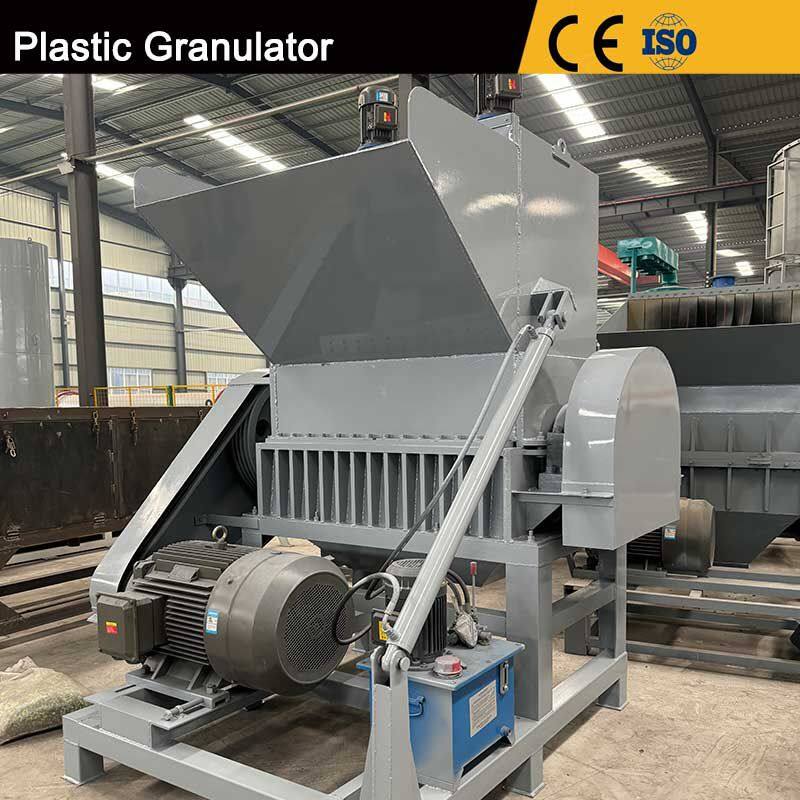

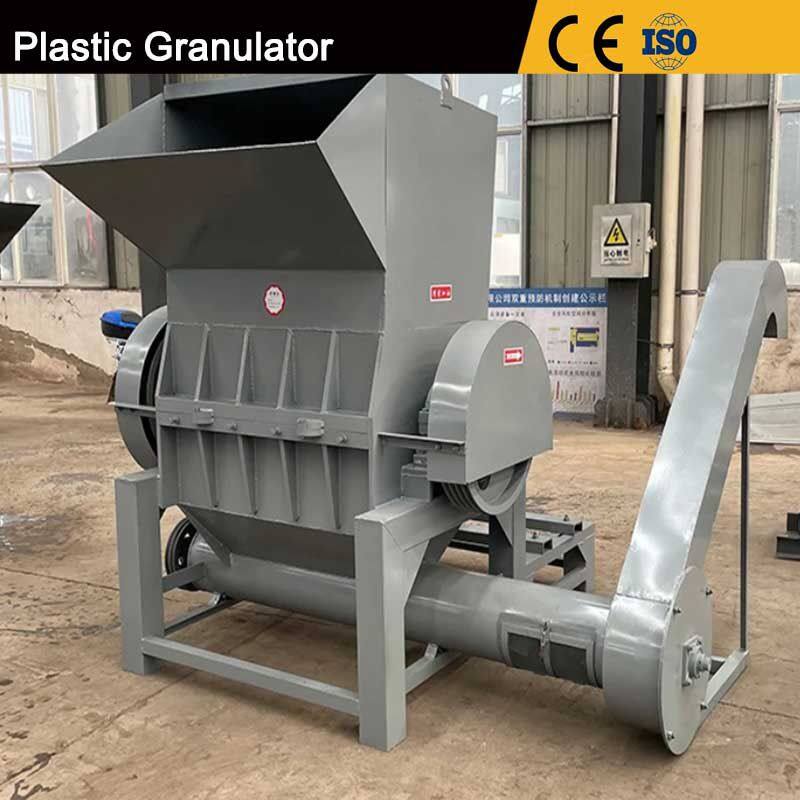

Plastic Pipe PP Pet Film Rubber Head Material Shredder & Granulator High Output and Efficiency Recycling Machine
≥1 Set
- 0 Set / Sets per Month
- QINGDAO
- T/T L/C PayPal D/P Western Union Other
- 15 days
You May Like
-
Plastic Pet Bottle PP Film Recycling Machine Recycling Line Recycling Plant
-
Plastic Bottle Recycling Machine PP PE Pet HDPE ABS Plastic Recycling Machine
-
Plastic Recycling Machine Pet Bottle PP Film Shredder Washing Line Recycling Machine
-
Pet Bottle Washing Line Plastic Crushing, Washing and Recycling Machine Plastic Recycling Machine for Plant
-
Plastic Pelletizers Recycling Machine Shredder & Granulator Washing Recycling Line Recycling Plant
-
Waste Pet Bottle Water Bottle, Coco Cola Bottle Pet Plastic Recycling Machine
Product Details
| Certification | ISO, CE | Warranty | 2 year | |
| After-sales Service | engineer ready to serve | Screw | Other | |
| Automation | Automatic | Knife Type | Piece Knife Crusher | |
| capacity | 300-400KG/H | area | 15㎡ | |
| power | 52KW | loading time | 15 days | |
| Transport Package | 20GP | Specification | WL-T300 TURBO | |
| Trademark | WALLE INDUSTRY | Origin | CHINA |
Product Description
Product Description
Application Scope:
Large appliance housings
Automotive bumpers
Injection-molded products
Product Advantages:
High-strength, customizable main shaft rotors. The main shaft rotors are constructed from high-strength welded steel with a unique V-shaped design. All main shafts undergo rigorous dynamic and static balancing tests to ensure reliable machine operation. Customized main shaft designs can also be provided to meet specific material requirements.
External bearing housing. The bearing housing is mounted on the exterior of the machine body, with the spindle and housing sealed by a seal ring to prevent shredded material from entering the bearings, thereby extending bearing lifespan.
Hydraulic opening/closing mechanism. The upper and lower machine housings and screen frame are equipped with hydraulic opening/closing mechanisms, facilitating machine maintenance and the replacement of blades and screens.
Blade replacement safety device. During blade replacement, the spindle rotor is secured to facilitate blade replacement. Simultaneously, the circuit is disconnected to prevent accidental operation of the machine, ensuring personnel safety.
Product specifications:
| model | WLC600/350 | WLC600/450 | WLC800/450 | WLC800/600 | WLC1000/600 | WLC1200/600 |
| chamber(mm) | 600 | 600 | 800 | 800 | 1000 | 1200 |
| rotation diameter(mm) | 350 | 450 | 450 | 600 | 600 | 600 |
| speed(rpm) | 580 | 580 | 580 | 520 | 520 | 520 |
| blades qty(PCS） | 2x3 | 2x3 | 2x3 | 2x5/2x7 | 2x5/2x7 | 2x5/2x7 |
| fixed blades qty (PCS） | 2 | 2 | 4 | 4 | 4 | 4 |
| power(KW） | 22 | 30 | 37 | 55 | 11/15 | 5/6 |
| hydraulic (KW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | |
| screen(mm） | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 |
| feeder size(mm） | 450x600 | 530x600 | 530x800 | 705x800 | 800x1000 | 850x1200 |
| (L*W*H）(mm） | 1650x1370x1950 | 2000x1550x2550 | 2000x1750x3150 | 2100x1750x3200 | 2300x1950x3350 | 2300x2150x3350 |
| weight(kg） | 1800 | 2600 | 3100 | 3500 | 4500 | 5500 |
Company Profile
Walle industry is an industrial equipment manufacturer & trader from China, with over 16 years of rich experience and unique knowledge, We help our customers around the world solve a variety of problems from crushing and screening all the way through different materials, we have remained dedicated to our values and to providing material processing solutions that improve the lives of people around the world.
