Home > Products > hydraulic cylinder > Customized Power Steering Cylinder Shaft

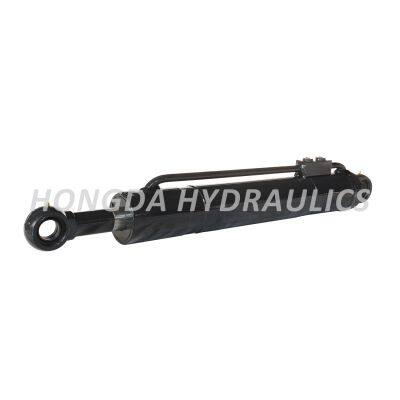

Customized Power Steering Cylinder Shaft
USD $300
≥1 Piece
- 0 Piece / Pieces per Month
- shanghai
- T/T L/C PayPal D/P Western Union Other
- 45 days
You May Like
-
stomized Rear Hydraulic Jack Legs Hydraulic Cylinder with Adjustable Latch System
-
Customized Hydraulic Cylinder for Front Outrigger Lift engineering hydraulic cylinders, excavator hydraulic cylinders and forklift
-
Hydraulic Pump Motor Station hydraulic pump station, small hydraulic press, machine tool hydraulic station, oil pump
-
Customized Balanced Hydraulic Cylinder Hydraulic system assembly pump station oil pressure
-
Pneumatic long-stroke stainless steel Customized Pneumatic Cylinder
-
Manufacturer supplies non-standard hydraulic cylinders for elevators and freight lifts, flange type double-ear telescopic engineering
Product Details
| Material | Cast Iron | Certification | GS, CE, ISO9001, Other | |
| Structure | Piston Type | Work Temperature | Normal Temperature | |
| Acting Way | Double Acting | Working Method | Straight Trip | |
| Pressure | High Pressure | Transport Package | wooden box | |
| Specification | 110/63-245 | Trademark | hongda | |
| Origin | chia |
Product Description
| Product title | Lift Hydraulic Cylinder for Steel Coil Flatbed Truck |
| Product Description | The lift hydraulic cylinder for a steel coil flatbed truck plays a crucial role in facilitating the loading and unloading of steel coils. Installed beneath the flatbed, this hydraulic cylinder generates the force needed to elevate the bed to an angle that allows efficient placement and retrieval of heavy steel coils. |
| Product Name | Lift Hydraulic Cylinder |
| Brand | HongDa Hydraulics |
| Model Number | 1*160/100_450+2*110/80_500 |
| Weight | 600kg |
| Dimension | 900x520x250 |
| Core Component | piston rod, cylinder barrel, end cap |
| Applicable Industries | Metallurgical Hydraulic Cylinder |
| Bore Dia | 160 mm/110 mm 6 in/4 in |
| Rod Dia | 100 mm/80 mm 3.937 in/3.150 in |
| Stroke | 450 mm/500 mm 18 in/20 in |
| Operating Temperature | -20°~50° |
| Maximum Working Pressure | 25Mpa |
| Mounting Style | spherical rod end bearing |
| Paint | |
| Working Medium | hydraulic oil |
The controlled motion provided by the hydraulic system ensures precise positioning, enabling operators to handle the steel coils safely and with minimal manual effort. This type of hydraulic cylinder enhances the functionality of flatbed trucks in the transportation of steel coils, contributing to the overall efficiency and safety of the material handling process in industries such as steel manufacturing, construction, and logistics.
