PLC Tyre Recycling Machine/Waste Tire Recycling Machine Waste Tyre Recycling Plant
US$ 18600
≥1 Sets
- QINGDAO
- T/T
- 15 days
You May Like
-
Tyre, Rubber, Plastic Metal Wood Shredder Recycling Machine Waste Recycling Plant Line Machine
-
Rubber Tire Recycling Machine Two Shaft Shredder Crusher Pulverizer Waste Recycling Plant
-
Tire Recycling Equipment - Crumb Rubber - Waste Tire Recycling Plant - Tyre Recycling Machine
-
Tire Recycling Machine- Tire Recycling Plant Atr 300 - Tire Recycling Machine - Tire Recycling Process
-
Tire Bead Extractor, Tire Wire Drawing Machine, Car Truck Tire Recycling Machine
-
World′s Largest Rubber Tire Recycling Plant Scrap Recycling
Product Details
| Certification | ISO, CE | Warranty | 2 year | |
| After-sales Service | engineer ready to serve | Screw | Other | |
| Automation | Automatic | Knife Type | Piece Knife Crusher | |
| capacity | 300-400KG/H | area | 15㎡ | |
| power | 52KW | loading time | 15 days | |
| Transport Package | 20GP | Specification | WL-T300 TURBO | |
| Trademark | WALLE INDUSTRY | Origin | CHINA |
Product Description
Basic Info.
Model NO.
WL-1200
Service Life
≥15 Years
Certification
CE, ISO
Voltage
380V
Structure
Horizontal
Capacity
500-3000kg/H
Type
Double Shaft
Power
55+55
Cutter Material
H13 9sicr
Chamber Size
1200*1188
Fineness Controller
with Rotary Screen
Appliance
Tire Diam,Under 1200mm
Usage
Rough Crushing
Reducer
355 or Planetary Type
Cutter Diam
550 mm
Cutter Thickness
50mm
Outcomes
50*80 mm
Teenth
3PCS
Weight
8000 Kgs
Operator
Semi/Auto
Transport Package
Standard Package
Trademark
walle industry
Origin
China
HS Code
8479820090
Production Capacity
10set/Month
Packaging & Delivery
Package Size
550.00cm * 200.00cm * 200.00cm
Package Gross Weight
12000.000kg
Product Description
Robust durable tyre wire bundle recycling machine waste tire shredder OTR tire recycling machine
The whole tire recycling plant will be controlled by the PLC, all the materials will be process inside of machines, there is REAL ZERO
POLLUTION. 1 labor, 1 engineer can operate all the machines, no need to operate the machines, just control the PLC. the machines can protect the machines, work the machines and keep the machines work smoothly.Double shaft tire shredder recycling machine including the under :
1. truck tire debeaderTo remove the steel wire from the beader.

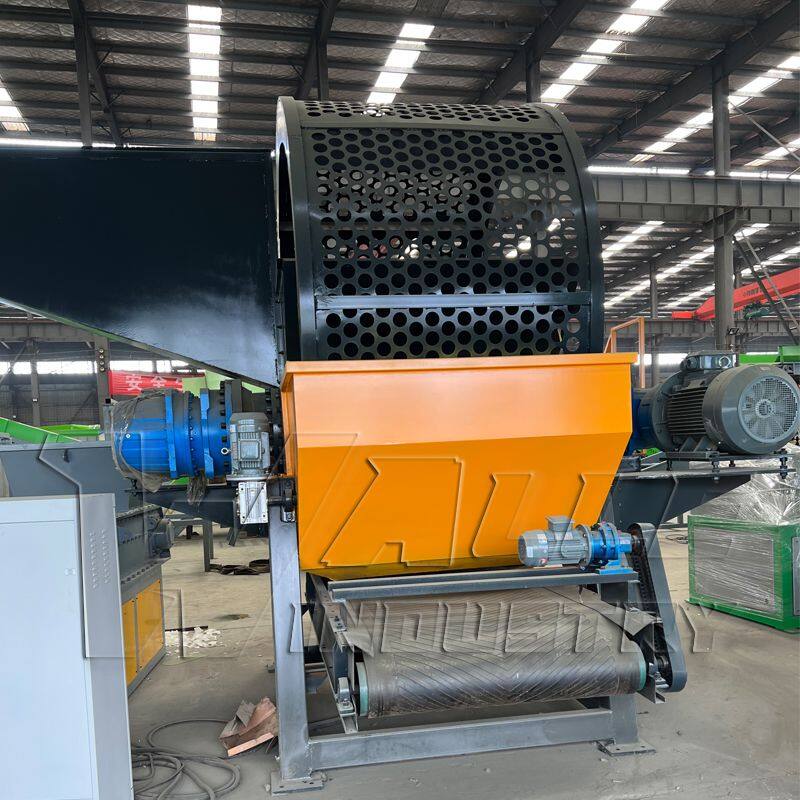

2. Tire shredder machine The tyre shredder mahcine is assembled with the replaceable cutter, to save offtime . improve the efficiency of working, meanwhile,
the discharge size is controlled by the rotorary screen.
3. Tire rasper
To remove the less and thin steel wire from the rubber.
4. rubber mulch machine
to grind the rubber material from 1-9 mm.
meanwhile, there is fit with the Nylon collection device and dust purify system.
5. swing vibration table
To sort the different size material. meanwhile, there is set with the ton bag collector.The whole system is equipped with the filter bag dust collection system to control the dust.
1. Full automatic just operate the PLC controller of cabinet.
2. there is no dust pollution during processing.
3. integrated type to save the space
4. energy saving 1/3 than traditonal type.
5. detachable cutter, modular working chamber, fast the rapid of maintain.
| Type | power | Cutter Qty PCS | reducer | chamber mm | feeding port | overall size mm | weight T | capacity (T/h) |
| WL-800 | 15kw*2 | 30 | 400 | 600*388 | 1000*766 | 1820*800*1930 | 2.1 | 0.5-0.8 |
| WL-1000 | 22kw*2 | 20 | 500 | 640*588 | 1170*990 | 3260*1300*2370 | 3.5 | 1-1.5 |
| WL-1200 | 37kw*2 | 30 | 355 | 1200*788 | 1600*1200 | 4700*2000*2700 | 8 | 2.5-3 |
| WL-1500 | 55kw*2 | 30 | 400 | 1500*1188 | 1900*1450 | 5000*2200*2900 | 18 | 8-10. |
| WL-1800 | 75KW*2 | 36 | 400 | 1800*1188 | 2300*1450 | 5300*2150*3000 | 20 | 12-15. |
| WL-2000 | 90kw*2 | 24 | 450 | 2000*1188 | 2300*1500 | 5400*2150*3000 | 25 | 20-25. |
| WL-2200 | 110kw*2 | 28 | 240 | 2200*1578 | 3100*2500 | 6200*2700*3500 | 33 | 26-30 |
| WL-2400 | 132kw*2 | 24 | 240 | 2400*1678 | 3200*2600 | 7300*2800*3800 | 38 | 30-35. |
| WL-2800 | 185kw*2 | 28 | 260 | 2800*2000 | 3700*3000 | 7800*2800*3800 | 45 | 35-40 |
