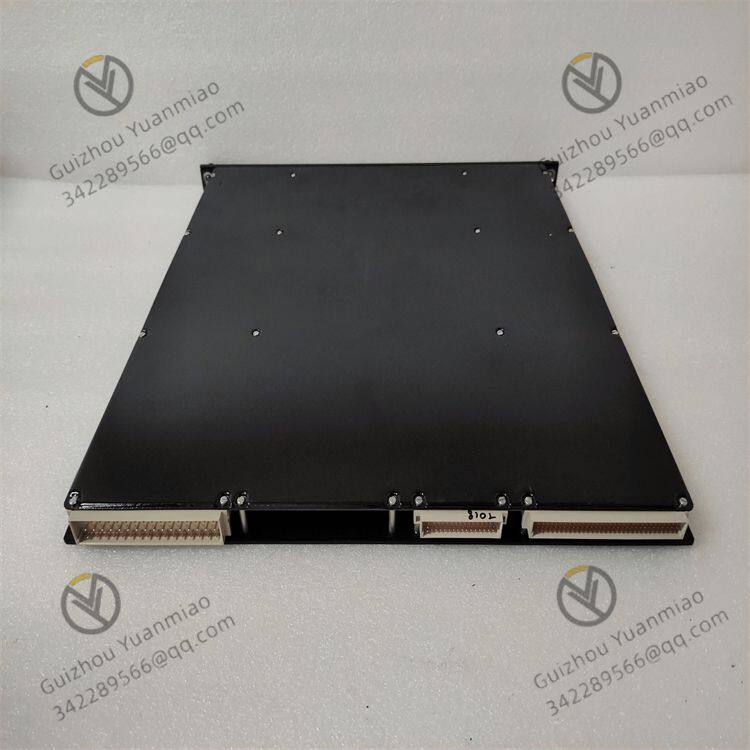

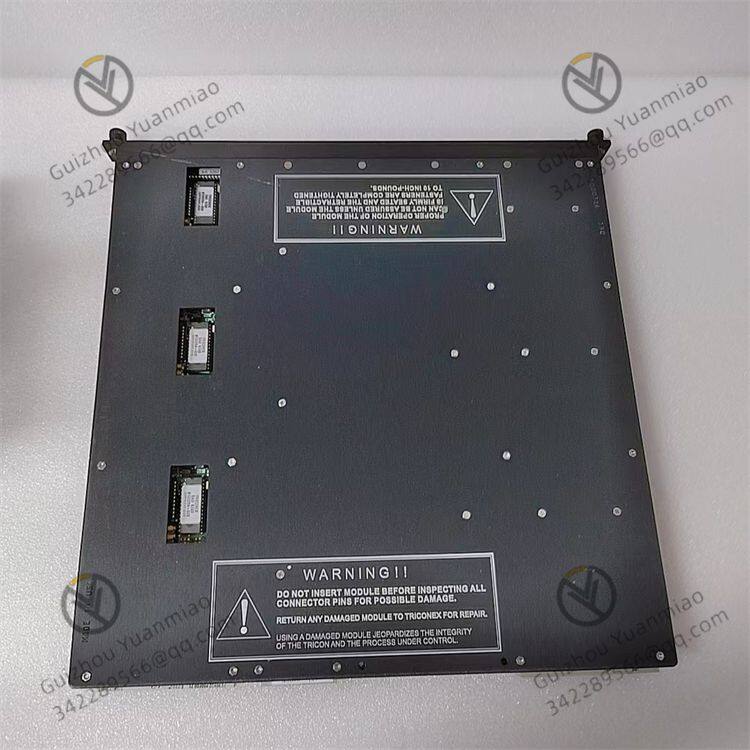

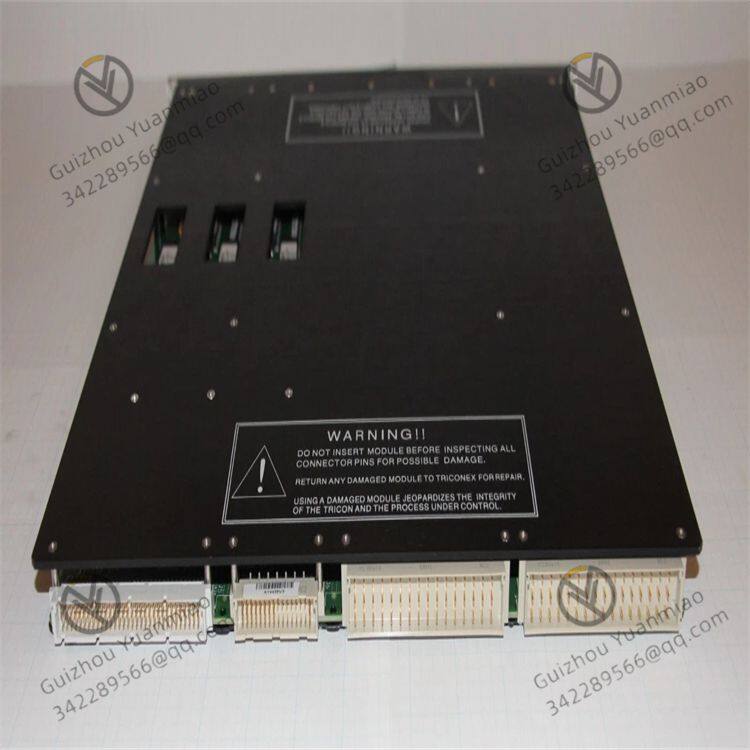

TRICONEX 3623T Input/Output Interface Module

Input Voltage: 24V DC.

Output Voltage: 5V DC.

Operating Temperature Range: -40℃ to +85℃.

Protection Rating: IP67.

Dimensions: 100mm x 50mm x 30mm.

Input Channels: 8.

Output Channels: 4.

Communication Interfaces: Supports Fault-Tolerant Ethernet (FTE), Modbus TCP, and ENIM protocols.

High Safety Standards: Complies with the International Electrotechnical Commission (IEC) standard 61508 SIL 3, suitable for industrial occasions with extremely high safety performance requirements, such as the oil and gas, chemical, and power industries, providing reliable safety guarantees for critical systems.

Redundant Design: Supports multiple network redundancy schemes and redundant configurations to ensure high system availability. Even if some components fail, the system can still operate normally.

Channel Configuration: Typically equipped with 8 input channels and 4 output channels, meeting the needs for multi-channel signal input and output in general industrial control. It is used to receive signals from on-site equipment and output control signals to relevant actuators.

Wide Operating Temperature Range: With an operating temperature range of -40℃ to +85℃, it can adapt to harsh industrial environments and work stably under different climatic conditions such as high and low temperatures.

High Protection Rating: With a protection rating of IP67, it has excellent dustproof and waterproof performance, effectively preventing dust from entering the module and resisting water splashes and short-term immersion to a certain extent, making it suitable for installation in complex industrial sites.

Multiple Communication Interfaces: Supports communication protocols such as Fault-Tolerant Ethernet (FTE), Modbus TCP, ENIM, as well as RS-232 and RS-485, facilitating communication with other devices or systems, enabling rapid data transmission and interaction, and simplifying system integration.

Optical Isolation and High Isolation Voltage: Adopts optical isolation technology with a point isolation voltage of 2500 VDC, which can effectively improve the safety and reliability of the module, prevent electrical interference, ensure stable signal transmission, and avoid the impact of electrical interference and potential differences between different circuits.

Programmable Logic Control: Provides flexible control functions, which can be programmed according to actual application needs to realize various complex control logics and meet the control requirements of different industrial processes.

Self-Diagnostic Function: Equipped with self-diagnostic and fault detection functions, it can monitor the working status of the module in real-time. When a fault occurs, it can quickly locate the problem, helping maintenance personnel carry out repairs and handling in a timely manner, and reducing system downtime.

Oil and Gas Industry: Can be used in wellhead platforms to monitor parameters such as pressure and temperature, triggering emergency shutdown in case of abnormalities; can also be used in long-distance pipeline stations to achieve rapid shutdown when pipeline pressure is abnormal, and applied in natural gas processing plants for safety control of process units, such as monitoring toxic gas concentrations and activating corresponding protective measures when exceeding standards.

Chemical Industry: In high-temperature and high-pressure reaction devices for ammonia synthesis, methanol, etc., it monitors parameters such as reactor pressure and liquid level. When exceeding safety thresholds, it cuts off feed to prevent accidents such as explosions; it can also be used for valve control and motor control in chemical production to ensure the stability and safety of the production process.

Power Industry: Can be applied to boiler and steam turbine systems in thermal power generation to realize interlock shutdown control under conditions such as abnormal furnace pressure; can also be used in non-nuclear safety systems of nuclear power plants, such as radioactive wastewater treatment systems, to execute safety logic and ensure safe operation of the system.

Water Treatment Industry: Used in sewage treatment plants to monitor the concentration of toxic gases (such as hydrogen sulfide) in sewage tanks. When the concentration exceeds the standard, it triggers the start/stop of fans and alarms to ensure the safety of workers and the normal operation of equipment; it can also be used to control valves and pumps in the water treatment process, realizing precise water flow control and automation of the treatment process.

Metal Processing Industry: In blast furnace and converter systems of steel plants, it monitors parameters such as furnace body temperature and cooling water flow, triggering emergency cooling or furnace shutdown interlocks to prevent equipment damage; it can also be used to control the overload protection logic of rolling mills to avoid mechanical failures.

Food and Beverage, and Pharmaceutical Industries: In the food and beverage industry, it can be used in aseptic filling lines to monitor parameters such as sterilization temperature to ensure product quality and safety; in the pharmaceutical industry, it is used in aseptic production environments for biopharmaceuticals to control the safe operation logic of key equipment, complying with GMP standards. Meanwhile, it triggers safe shutdown in case of equipment abnormalities to avoid batch scrapping or contamination.
