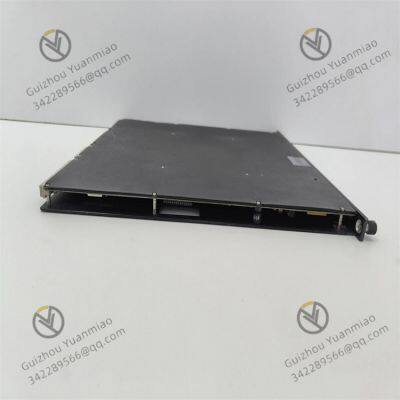

TRICONEX 4409 Safety Management Module

Dimensions and Power Supply: It has dimensions of 178mm×127mm×41mm and is powered by a 24V DC power supply.

Operating Temperature: The operating temperature range is -40℃ to +70℃, enabling it to adapt to harsh industrial environments.

Communication Interfaces: Equipped with two isolated, AC-coupled Universal Control Network (UCN) ports with a data rate of 5Mbps. It can communicate with Honeywell's TDC-3000 distributed control system, acting as a safety node on the UCN to transmit process information at the full network data rate.

Communication Protocols: Supports communication protocols such as Ethernet, Modbus, and Foundation Fieldbus. It also supports various serial communication protocols like Modbus, Profibus, and DeviceNet, allowing communication with other devices through serial interfaces.

High Reliability: Adopts a triple redundancy design and complies with international safety standards such as IEC 61508 and ISA S84.01. It is suitable for SIL3-level safety applications, ensuring the system can still operate normally even if a component fails.

Programmability: Supports multiple programming languages and development environments, such as the ladder diagram language conforming to the IEC 61131-3 standard. This facilitates users to program and configure according to actual needs, realizing various complex control logics and safety strategies.

Rich I/O Interfaces: Typically has 16 analog inputs, 16 digital inputs, 8 analog outputs, and 8 digital outputs. It can connect various sensors, actuators, and communication devices, facilitating flexible system integration and data exchange.

Fault Diagnosis and Alarm: Can monitor the system's operating status in real-time, promptly detect and handle faults, and provide an alarm function to remind operators of potential safety risks.

Scalability: Supports a modular design, allowing functional modules to be added or removed according to actual needs, reducing system costs and improving flexibility.

Processing Critical I/O Points: Processes data from critical input/output points and transmits the results to the Distributed Control System (DCS).

Alarm Handling: Processes alarms from the Tricon controller and propagates them to user-defined DCS targets such as control consoles and printers.

Data Reading and Writing: Reads and writes alias data to meet DCS requests, and can also read Tricon diagnostic information for display on the DCS.

Write Protection: Provides a write protection function to prevent unauthorized changes to the Tricon controller from all TDC-3000 sources.

Time Synchronization: Can synchronize time with the DCS master clock.

Sequence of Events (SOE) Recording: Transmits Tricon event data to a universal station for display or to a historical module for recording, which helps determine the cause of plant trips and increase process uptime.

Extraction and Gathering Links: In scenarios such as oil and gas wellhead platforms and gathering stations, the 4409 module can monitor key parameters like pressure, temperature, and flow rate. When dangerous situations such as overpressure or leakage are detected, it quickly triggers the Emergency Shutdown System (ESD) to cut off the wellhead or pipeline flow, preventing accidents such as explosions and leaks.

Refinery Safety Control: In equipment such as crude oil distillation and catalytic cracking units, it is used to execute safety interlock logic. For example, when the reactor pressure exceeds the standard or medium leaks, it immediately activates pressure relief devices or stops feeding to ensure the safety of the refining process.

Long-Distance Pipeline Protection: By linking with pressure sensors and shut-off valves along the pipeline, it realizes pipeline overpressure protection and emergency shut-off control after leakage detection, avoiding large-scale oil and gas leaks.

Hazardous Chemical Reaction Control: In processes such as chemical synthesis and pharmaceutical reactions, the 4409 module monitors the temperature, pressure, liquid level of the reactor, and the concentration of toxic gases. When parameters exceed the safe range, it triggers safety actions such as stopping stirring, starting the cooling system, or emergency discharge to prevent reaction runaway or toxic substance leakage.

High Integrity Pressure Protection (HIPPS): In scenarios involving high-pressure equipment (such as high-pressure reactors and compressors), it serves as the core control component of HIPPS, replacing traditional safety valves. It achieves overpressure protection through precise logic judgment, reducing unplanned shutdowns.

Safety Interlock in Explosion-Proof Areas: In areas such as explosion-proof workshops and storage tank farms, it links with combustible gas detectors and flame detectors. When dangerous signals are detected, it immediately cuts off the power supply and starts the ventilation system to prevent explosion or poisoning accidents.

Thermal Power Plant Safety Control: In key equipment such as boilers and steam turbines, it monitors parameters such as steam pressure, temperature, water level, and furnace negative pressure. When dangers such as overheating, water shortage, or furnace flameout occur, it triggers emergency shutdown procedures to protect equipment and personnel safety.

Nuclear Power Auxiliary Systems: In the auxiliary circuits of nuclear power plants (such as cooling systems and water treatment systems), it is used for safety interlock control to ensure that the auxiliary systems can operate reliably under abnormal conditions, supporting the stable operation of the nuclear reactor.

Power Grid Dispatching Safety: In substation automation systems, as a safety layer component, it monitors equipment status and executes emergency tripping logic to prevent the expansion of faults such as power grid overload and short circuits.

Safe Operation of Sewage Treatment Plants: In the sewage treatment process, it monitors parameters such as dissolved oxygen in the aeration tank, sludge concentration, and toxic substance content. When parameters exceed the standard or equipment malfunctions (such as pump jamming), it triggers shutdown or switches to standby equipment to avoid pollution spread or equipment damage.

Drinking Water Plant Safety Assurance: It is used to monitor the chemical concentration of dosing systems (such as chlorine disinfection) to prevent excessive dosing from causing water quality exceeding standards. Meanwhile, it activates the logic of emergency switching to alternative water sources when the water source is polluted.

Gas Turbine/Steam Turbine Protection: In power equipment such as gas turbines and steam turbines, it monitors key parameters such as rotational speed, vibration, and shaft temperature. When dangers such as overspeed and severe vibration are detected, it immediately triggers shutdown protection to prevent equipment damage or flying accidents.

Compressor Safety Control: In natural gas compressor and air compressor systems, it realizes anti-surge control and overpressure protection, avoiding mechanical damage to the compressor caused by surge or overpressure through interlock logic.

Oil and Gas Terminals/Storage Tank Areas: In terminal loading arms and large storage tank areas, the 4409 module links with level gauges and emergency shut-off valves. When the liquid level exceeds the upper limit or a leak is detected, it immediately stops loading and unloading operations and closes the valves to prevent overflow or fire risks.

Railway/Chemical Park Tank Car Loading and Unloading: It monitors the pressure, flow rate, and grounding status during tank car loading and unloading. If situations such as uneliminated static electricity or overpressure occur, it immediately stops loading and unloading and alarms to avoid explosions caused by static electricity.
