Home > Products > hydraulic cylinder > Heavy Duty Tie-Rod Hydraulic Cylinders: 3" Bore x 8" Stroke - 1.969" Rod"

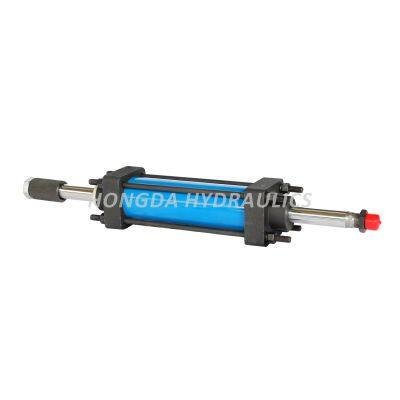

Heavy Duty Tie-Rod Hydraulic Cylinders: 3" Bore x 8" Stroke - 1.969" Rod"
USD $200
≥1 Piece
- 0 Piece / Pieces per Month
- shanghai
- T/T L/C PayPal D/P Western Union Other
- 30 days
You May Like
-
Hydraulic Outrigger Cylinder For Boom Crane Leg Cylinder
-
The hydraulic cylinder of the truck crane tilts and shifts laterally, rotates left and right, and dislocates the oil seal.
-
Hydraulic cylinder for bidirectional lifting, small-sized 40mm, custom-made, single-directional oil cylinder with 2-ton pressure, ear ring type,
-
Lift Hydraulic Cylinder for Steel Coil Flatbed Truck
-
Customized Power Steering Cylinder Shaft
-
stomized Rear Hydraulic Jack Legs Hydraulic Cylinder with Adjustable Latch System
Product Details
| Material | Cast Iron | Certification | GS, ROHS, CE, ISO9001, Other | |
| Structure | Piston Type | Work Temperature | Normal Temperature | |
| Adjusted Form | Regulated Type | Acting Way | Double Acting | |
| Working Method | Straight Trip | Pressure | Medium Pressure | |
| Transport Package | Wooden box | Specification | MOB80/50-200 | |
| Trademark | hongda | Origin | china |
Product Description
| Product title | Heavy Duty Tie-Rod Hydraulic Cylinders: 3" Bore x 8" Stroke - 1.969" Rod" |
| Product Description | The tie-rod hydraulic cylinder is a fundamental component in hydraulic systems, designed to provide linear force and motion. Consisting of a cylindrical barrel, piston, and tie rods that secure both ends, these cylinders are versatile and widely used in various industrial applications. |
| Product Name | Hydraulic Cylinder |
| Brand | HongDa Hydraulics |
| Model Number | MOB80/50-200 |
| Weight | 20Kg |
| Dimension | 600x120x120 |
| Core Component | Piston rod, cylinder barrel, end cap |
| Applicable Industries | General Equipment Hydraulic Cylinder |
| Bore Dia | 80 mm/3 in |
| Rod Dia | 50 mm/1.969 in |
| Stroke | 200 mm/8 in |
| Operating Temperature | -20°~50° |
| Maximum Working Pressure | 14Mpa |
| Mounting Style | Rod installation |
The tie rods maintain the structural integrity of the cylinder by securing the end caps to the barrel, allowing for easy assembly and disassembly. When hydraulic fluid is pressurized, it acts on the piston, causing linear motion that can be utilized for tasks such as lifting, pushing, or pulling heavy loads. The tie-rod design facilitates cost-effective manufacturing and repair, as it allows for the straightforward replacement of individual components. This type of hydraulic cylinder finds applications in construction equipment, manufacturing machinery, and other systems requiring reliable and controllable linear force.
