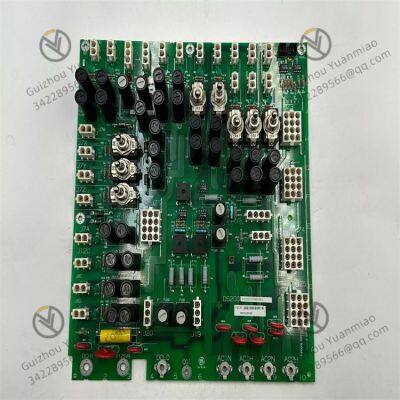

GE DS200TCPDG1BEC Digital Output Module

GE  DS200TCPDG1BEC  Digital Output Module

Basic Parameters

• Operating Voltage: 24V DC.

• Power Voltage Range: 18–32V DC.

• Operating Temperature Range: -40°C to 70°C.

• Number of Input Channels: 12.

• Number of Output Channels: 125.

• Trip Solenoid Rating: 125V DC.

• Communication Interfaces: Supports communication protocols such as Ethernet and Modbus TCP.

• Dimensions: 33.0 cm x 17.8 cm.

Functional Features

• Precise Digital Output: Provides accurate digital output signals for controlling the on/off status of external devices. It can accurately drive equipment such as motors, valves, and sensors, delivering clear and precise signals to effectively reduce noise and interference, ensuring control accuracy and stability.

• Anti-Condensation Design: Features anti-dew point condensation characteristics, ensuring that internal electronic components are not affected by condensation even in humid or cold environments. This maintains the module's stability and reliability, enabling it to adapt to various harsh environmental conditions.

• High Reliability: Adopts an anodized aluminum alloy casing, which is not only aesthetically pleasing but also has excellent impact and vibration load resistance. It can operate stably under harsh working conditions such as vibration and impact commonly found in industrial production, ensuring the module's normal operation and extending its service life.

• Wide Operating Temperature Range: With an operating temperature range of -40°C to 70°C, it meets industrial-grade standards, maintaining stable performance in different environmental temperatures (high or low) and adapting to various complex industrial field environments.

• Standard Specifications and Dimensions: Has standard dimensions and specifications, facilitating integration into various industrial control systems. It can be easily installed and connected to other devices, flexibly applied to different industrial automation projects.

• Support for Multiple Communication Protocols: Supports communication protocols such as Ethernet and Modbus TCP, enabling convenient communication with other devices or systems to achieve data transmission and interaction. This facilitates remote monitoring and control and is conducive to system integration and expansion.

• Multifunctionality: In addition to being used as a digital output module, it can also serve as a servo terminal board or power distribution board, with multiple control and power distribution functions. It meets the diversified needs of different application scenarios, improving the module's versatility and practicality.

• Redundant Power Supply Design: Provides two-way redundant input power supply with an input range of 24V DC ±25%, and has EMC filtering function to enhance power supply reliability. When one power supply fails, the other can continue to power the module, ensuring its normal operation.

• Fault Diagnosis and Protection: Equipped with overcurrent limiting and short-circuit resistance functions, it can automatically monitor output current. When the current exceeds the rated value, it will automatically take protective measures to avoid equipment damage caused by overcurrent or short circuits. Meanwhile, it can monitor input and output voltages, provide power failure signals, and store diagnostic data in EEPROM for convenient fault troubleshooting and analysis by users.
