Home > Products > copper wire recycling machine > Cable Recycling Machine/Cable Crusher/Wire Recycling Machine for Industrial Cable
Cable Recycling Machine/Cable Crusher/Wire Recycling Machine for Industrial Cable
≥1 Sets
- QINGDAO
- T/T
- 15 days
You May Like
-
Copper Wire Granulator/ Cable Recycling Machine (CR500)
-
Copper Cable Recycling Line With Good Price
-
Scrap Wire Recycling Machine/Cable Recycling Machine/Copper Cable Separrator Machine
-
Cable Recycling Machine/Cable Crusher/Wire Recycling Machine for Household Cable and Wire
-
Cable Recycling All in One Machine/Multi-Function Cable Crusher/Recycling Machine for Home Cable and Home Electric Wire
-
Cable Recycling All in One Machine/Multi-Function Cable Crusher/Recycling Machine for Home Cable and Wire
Product Details
| Material | Alloy Steel | Certification | CE, ISO | |
| Drive | Electric | Usage | Metal | |
| capacity | 800-2000KG/H | area | 15㎡ | |
| power | 35KW | loading time | 15 days | |
| Transport Package | 20GP | Specification | WL-T300 TURBO | |
| Trademark | WALLE INDUSTRY | Origin | CHINA |
Product Description
| Type | power | Working capacity | tips | weight |
| RK50 | 8.69 kw | 50-60 kg/h | copper purity 99%. cutter material SKD-11 or D2. cutter four sides use | 1000 KGS |
| RK400 | 28 kw | 70-100 kg/h | 1900 kgs | |
| RK600 | 42 kw | 200-300 kg/h | 3200 KGS | |
| RK800 | 68 kw | 500-600 kg/h | 6500 kgs | |
| RK1000 | 128 kw | 800-1000 kg/h | 12500 kgs | |
| RK1500 | 232 kw | 1200-2000 kg/h | 23000 kgs |
1.Dry method recycling rate is up to 98%.
2.Full autaomtic 1 operator,the whole system controlled by the PLC
3. integrated type , cut off the power and improve the capacity.
4. The separating parts take the gravity separator combined with the electrostatic separator machine. 5. There is equipped with the jet filter bag dust removal
6. The cutter of wire chopping machine takes the steel alloy D2 or SKD-11 keeps the long operation and uptime.
7. It works to the coarse wires.like the car wire, and other kind of tiny wire.A Copper Wire Granulator, also known as a Copper wire recycling machine, is a specialized recycling system designed to efficiently separate copper from plastic/rubber insulation in waste cables and wires. It plays a vital role in the e-waste recycling and metal recovery industries, transforming scrap materials into reusable resources with high economic and environmental value.

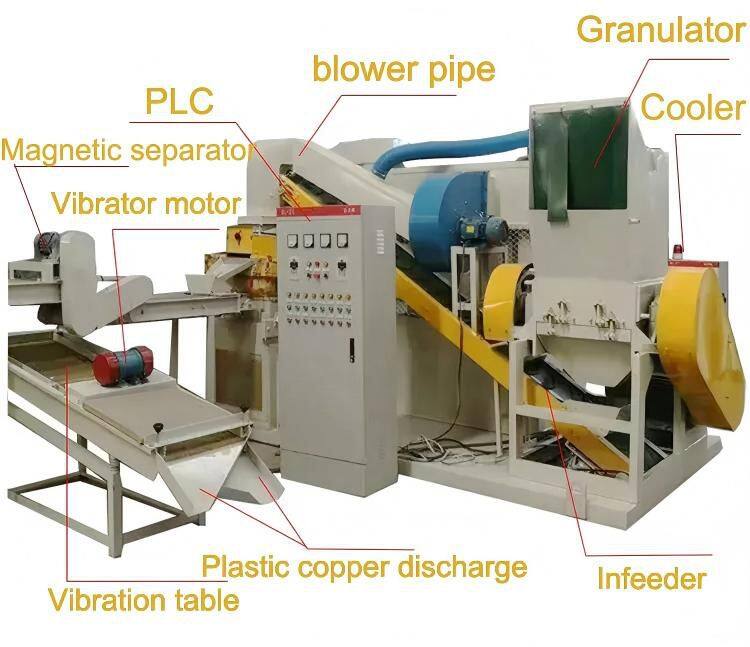

Cable Shredder
Function: Cuts scrap wires into small granules (copper particles mixed with plastics, called "copper rice").
Vibration table
filter oversize particle to secondary grinding.
Separating stage
1. Air gravity separator :Utilizes density differences (copper: 8.9 g/cm3 vs. plastic: 1.0-1.4 g/cm3) to separate lighter plastics via airflow.
2. Electrostatic separator:
Principle: Separates fine copper powder and plastics using conductivity differences in a high-voltage electrostatic field.
Application: Ideal for complex mixtures (e.g., thin copper wires with PVC residues
3. Straight table: to sort the pink coper from yellow
DUST PURIFICATION
The Impulse filter dust collector or bag type to control the dust flying.
Company Profile
Walle industry is an industrial equipment manufacturer & trader from China, with over 16 years of rich experience and unique knowledge, We help our customers around the world solve a variety of problems from crushing and screening all the way through different materials, we have remained dedicated to our values and to providing material processing solutions that improve the lives of people around the world.
