Manufacture ASTM A276/Uns S32750/ASTM A240 Stainless Steel Rod for Flue Gas Scrubbing Equipment Duplex Steel 2507 Bar

FOB Price

USD $35 - $50 / Ton

100 Tons(Min.Order)

Supply Ability 0 Ton / Tons per Month
Payment TermsT/T L/C PayPal D/P Western Union Other
Delivery Detail8 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Stainless Steel Bars	Certification	ISO, ROHS, IBR, AISI, ASTM, GB, EN, DIN, JIS, Other
Shape	Round	Grade	Other
Technique	Other	Surface Treatment	Polished
Standard	ASTM, AISI, GB, JIS, DIN, EN, Other	Specification	OEM
Trademark	ZHONGZHENG INTERNATIONAL	Origin	China

Product Description

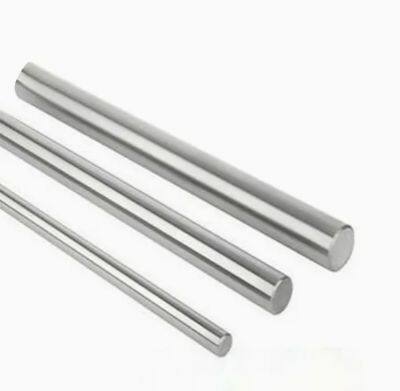

Stainless steel round bar

Basic Info.

Type

Alloy Steel Bar

Standard

AISI, ASTM, GB, JIS, DIN, BS

Technique

Hot Rolled

Application

Structural Steel Bar, Tool Steel Bar, Die Steel Bar

Surface Treatment

Polished

Alloy

Non-alloy

Key Words

2507 S32750 Bar/Rod

Diameter

0.5mm-600mm

Length

as Your Requirments

Diameter Tolerance

H9, H11, H13, K9, K11, K13 etc

Sample

Free-Sample

Surface

Lack, Peeled, Polishing, Bright, Sand Blast, Hl

MOQ

100kgs

Stock

in Stock

Transport Package

Wooden Package

Specification

2507 tube

Trademark

ZHONGZHENG

Origin

China

HS Code

7218990000

Production Capacity

50000kg/Month

Product Description

Introduction

ZHEJIANG ZHONGZHENG STAINLESS STEE MANUFACTURING CO., LTD is a special stainless steel manufacturer with 20 years of manufacturing experience.

Stainless steel Super Duplex 2507 is designed to handle highly corrosive conditions and situations were high strength is required. High molybdenum, chromium and nitrogen content in Super Duplex 2507 help the material withstand pitting and crevice corrosion. The material is also resistant to chloride stress corrosion cracking, to erosion corrosion, to corrosion fatigue, to general corrosion in acids. This alloy has good weldability and very high mechanical strength.

Duplex Stainless 2507 Applications

? Oil and gas industry equipment
? Offshore platforms, heat exchangers, process and service water systems, fire-fighting systems, injection and ballast water systems
? Chemical process industries, heat exchangers, vessels, and piping
? Desalination plants, high pressure RO-plant and seawater piping
? Mechanical and structural components, high strength, corrosion-resistant parts
? Power industry FGD systems, utility and industrial scrubber systems, absorber towers, ducting, and piping

2507 Standards
2507 -S32750-SAF2507-00Cr25Ni7Mo4N

ASTM/ASME ...…. A240 - UNS S32750
EURONORM...... 1.4410 - X2 Cr Ni MoN 25.7.4
AFNOR......... Z3 CN 25.06 Az

Welding

2507 possesses good weldability and can be joined to itself or other materials by shielded metal arc welding (SMAW), gas tungsten arc welding (GTAW), plasma arc welding (PAW), flux cored wire (FCW), or submerged arc welding (SAW). 2507/P100 filler metal is suggested when welding 2507 because it will produce the appropriate duplex weld structure.

Preheating of 2507 is not necessary except to prevent condensation on cold metal. The interpass weld temperature should not exceed 300°F or the weld integrity can be adversely affected. The root should be shielded with argon or 90% N2/10% H2 purging gas for maximum corrosion resistance. The latter provides better corrosion resistance.
Chemical Composition

Element	Content (%)
Chromium, Cr	24 - 26
Nickel, Ni	6 - 8
Molybdenum, Mo	3 - 5
Manganese, Mn	1.20 max
Silicon, Si	0.80 max
Copper, Cu	0.50 max
Nitrogen, N	0.24 - 0.32
Phosphorous, P	0.035 max
Carbon, C	0.030 max
Sulfur, S	0.020 max
Iron, Fe	Balance

Mechanical Properties

Ultimate Tensile Strength, ksi	116 min.
0.2% Offset Yield Strength 0.2%, ksi	80 min.
0.1% Offset Yield Strength 0.2%, ksi	91 min.
Elongation in 2 inches, %	15 min.
Hardness Rockwell C	32 max.
Impact Energy, ft.-lbs.	74 min.

Available Sizes And Specification

2507/S32750 stainless steel pipe sizes and specifications
Grade	2507/S32750
Stainless steel seamless pipe	Outside diameter: 4.0 - 1219mm, Thickness: 0.5 -100mm,Length: 24000mm
Stainless steel welded pipe	Outside diameter: 6.0 - 2800mm, Thickness: 0.3 -45mm,Length: 18000mm
Stainless steel capillary pipe	Outside diameter: 0.4 - 16.0mm, Thickness: 0.1 -2.0mm,Length: 18000mm
Stainless steel welded sanitary pipe	Outside diameter:8.0- 850mm, Thickness: 1.0 -6.0mm
Stainless steel seamless sanitary pipe	Outside diameter: 6.0- 219mm, Thickness: 1.0 -6.0mm
Stainless steel square pipe	Side Length: 44 - 300300mm, Thickness: 0.25 - 8.0mm, Length: 18000mm
Stainless steel rectangular pipe	Side Length: 46 - 200400mm, Thickness: 0.25 - 8.0mm, Length: 18000mm
Stainless steel coil pipe	Outside diameter: 0.4 - 16mm, Thickness: 0.1 - 2.11mm
Standard	American Standard: ASTM A312, ASME SA269, ASTM A269, ASME SA213, ASTM A213 ASTM A511 ASTM A789, ASTM A790, ASTM A376, ASME SA335, B161, SB163, SB338, SB667/668 Germany Standard: DIN2462.1-1981, DIN17456-85, DIN17458-85· European Standard: EN10216-5, EN10216-2 Japanese Standard: JIS G3463-2006, JISG3459-2012 Russian Standard: GOST 9941-81;

40ft container:2.2mm width * 2.2m height * 11.6m Length , each container loading 25 Tons

Q1: Do you accept the trial order ?
A1: Yes,if we have the exactly size in stock.we can delivery even 1 piece/meter .

Q2: Can I have free sample before making orders?

A2: Yes,we can supply free sample as requirement,but buyer needs to pay the freight charges ,the freight fee will return to buyer after making order.

Q3: How do you control the quality ?
A3: MTC and PMI will be sent before shipment,any 3rd party inspection if need .

Q4: How about your delivery time ?
A4: Generally delivery time is 15 working days .

Q5: How can I quickly get the price list ?
A5: Directly click "chat now" or send us email with detail specifications,you will get the official price list in 1 hour .
