Emergency Flood - control Sub - dikes and Temporary Cofferdams: Your Reliable Protection Solution

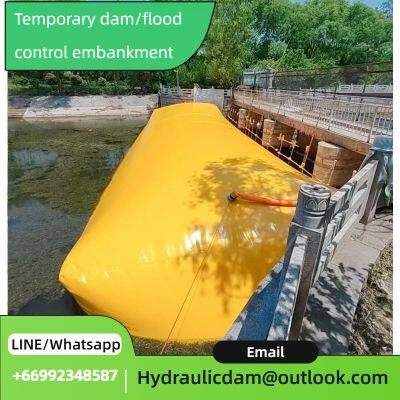

Introduction to water filled rubber embankment

From the appearance, the water filled rubber embankment looks like an extremely ordinary rubber product. When there is a super standard flood, this equipment is mainly used to temporarily raise the dam height. It uses water as the filling material for the dam body and can quickly form a flood control embankment. Main technical indicators:

1. The water filled rubber embankment can defend against floods exceeding 0.8m in height;

2. The water filled rubber embankment can withstand 6ms of wind and waves.

3. A water filled rubber embankment is composed of three water sacs with a diameter of 1m, forming a cross shape with a length of 10 meters, wrapped in tarpaulin.

4. Water filled rubber embankment with a height of about 1.5 meters after water filling

5. Water filled rubber embankment water bag material: made of chlorosulfonated polyethylene and 50% natural rubber

6. Water filled rubber embankment apron material: woven long pile geomembrane.

two

Introduction to Water Absorbing Rapid Solidification Water Retaining Embankment

The water absorbing rapid setting water blocking embankment is composed of an outer bag made of geotextile, an inner bag made of geomembrane, and high-efficiency water retaining materials packed in the inner bag, as well as pads, reinforcement belts, injection holes, anti-seepage belts, anti-seepage strips, etc. After the bag body absorbs (fills) water, its volume expands, and then the water body condenses into a gel with certain compressive strength and can stand on its own, thus forming a continuous low wall along the top of the dike, that is, a water retaining sub dike. Suitable for various water retaining, flood prevention and emergency rescue projects in rivers, lakes, reservoirs, as well as urban flood control.

three

Introduction to Prefabricated Plate Dam Flood Control Embankment

Prefabricated slab dam flood control embankment can be quickly overlapped on the top of the embankment to form a flood control embankment when the water level rises and there is a possibility of overflowing the embankment. The embankment is assembled from multiple units; Each unit consists of two parts: a foldable water blocking panel and a foldable support bracket. After each unit is assembled, it is connected to each other through rib plates and fasteners to form a complete sub embankment. The bottom of the panel is equipped with positioning fixing piles, which can fix the embankment on top of the embankment.
