Home > Products > CNC Spring Machine > Customized M2-M24 CNC Stainless Steel Helicoils Spring Making Machine

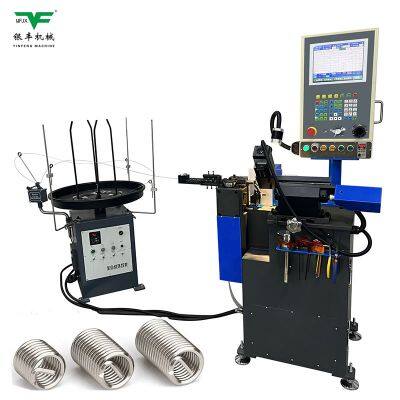

Customized M2-M24 CNC Stainless Steel Helicoils Spring Making Machine
USD $9999
≥1 Set
- 0 Set / Sets per Month
- T/T L/C PayPal D/P Western Union Other
You May Like
-
2mm-14mm 2d 3d cnc wire forming machine.flat wireframe bending machine.autometic stainless wire bending machine
-
8508 Wire diameter 0.15- 0.8mm spring coiling 5 axis coiling machine, spring making machine
-
yf cnc 8322 springs forming machine,torsion spring forming machine
-
YF-CNC-8545 Wire diameter 1.5-6mm springs forming machine,Wire spring forming machine
-
YINFENG YF-CNC-1045 Camless Spring Machine
-
YINFENG 1026 0.2-2.5mm Automatic Stainless Steel Spring Pin Forming R Clips Split Pin Making Machine
Product Description
| Model | YF-5M8 | YF-5M24 | YF-6M8 | YF-6M24 |
| Production scope | M3-M8 | M10-M24 | M3-M8 | M10-M24 |
| Production speed | 20-30 Pieces/per minute | 15-25 Pieces/per minute | 20-30 Pieces/per minute | 15-25 Pieces/per minute |
| Diameter of the wire(mm) | Φ20mm | Φ25mm | Φ20mm | Φ25mm |
| Quantity of the wire feed wheels | 1pair | 2 Pairs | 1pair | 2 Pairs |
| Number of axes | 5 axes | 5 axes | 6 axes | 6 axes |
| Slot machining motor X-axis | 0.4KW | 0.4KW | 0.4KW | 0.4KW |
| Wire feeding motor Y-axis | 0.4KW | 0.4KW | 0.4KW | 0.4KW |
| Pitch motor Z-axis | 0.4KW | 0.4KW | 0.4KW | 0.4KW |
| coiling motor A-axis | 0.4KW | 0.75KW | 0.4KW | 0.75KW |
| Cutter motor B-axis | 0.4KW | 0.4KW | 0.4KW | 0.4KW |
| Motor C-axis | - | - | 0.4KW | 0.4KW |
| Wire Decoiler | 60KG | 60KG | 60KG | 60KG |
| Input voltage | 380V±10%V50HZ (Customized) | 380V±10%V50HZ (Customized) | 380V±10%V50HZ (Customized) | 380V±10%V50HZ (Customized) |
| Total power (kw) | 3.0KW | 3.5KW | 3.5KW | 4.0KW |
| Machine dimension(mm) | 1050*850*1650 | 1200*1000*1650 | 1050*850*1650 | 1200*1000*1650 |
| Equipment Packaging Size(mm) | 1220*820*1280 | 1410*900*1280 | 1220*820*1280 | 1410*900*1280 |
| Net Weight of Machine (kg) | 360KG | 420KG | 400KG | 460KG |
