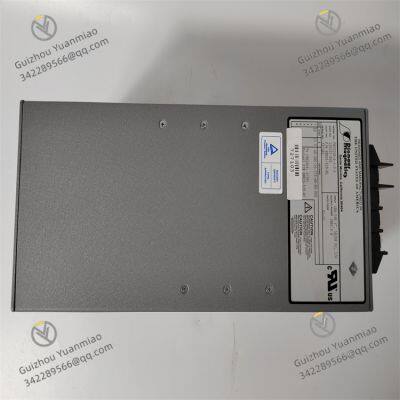

PIONEER MAGNETICS PM3326B-6-1-2-E 80026-529-01 Single-Phase Power Module

Power connection failure (e.g., unstable input voltage, loose or shorted wiring).

Internal coil open circuit or short circuit (insulation damage due to long-term overload or high temperature).

Control circuit component failure (e.g., driver IC, relay).

Check if the input voltage meets technical parameters (refer to the rated voltage range) and ensure wiring is secure, free of damage or oxidation.

Use a multimeter to test coil resistance; if abnormal (e.g., infinite resistance or far below the nominal value), replace the coil or the entire component.

Inspect components on the control circuit board (e.g., bulging capacitors, overheated chips), and replace damaged components or contact the manufacturer for repair if necessary.

Aging of core materials or decreased magnetic permeability (magnetic loss due to long-term high-frequency use).

Excessive coil temperature from poor heat dissipation, affecting magnetic flux stability.

External electromagnetic interference (e.g., nearby strong magnetic field devices).

Check the core surface for rust or cracks; replace the core or entire component if severely aged.

Verify that the cooling fan operates normally, clean dust from cooling holes, and ensure the device works within the rated temperature range (refer to technical parameters).

Add an electromagnetic shielding layer (e.g., metal housing) and keep the device away from interference sources (e.g., transformers, frequency converters).

Loose assembly of the core and coil (fixing screws loosened by long-term vibration).

Magnetic circuit design flaws or loose lamination of core silicon steel sheets, causing magnetostrictive noise.

Unbalanced mechanical components of the load (e.g., matched motor, transmission device) triggering resonance.

After shutdown, check and retighten component fixing screws, adding threadlocker if necessary, and replace fasteners if needed.

If it is a design issue, contact the manufacturer to confirm if an upgraded version is available or adjust the installation method (e.g., add vibration-damping pads).

Check the dynamic balance of the load equipment and repair or replace unbalanced components (e.g., rotors, gears).

Coil current exceeding the rated value (overload operation or control circuit abnormality).

Failure of the cooling system (fan stop, dust accumulation on heat sinks).

Excessive ambient temperature or poor ventilation.

Monitor working current with an ammeter; if exceeding the rated value, check for load overload or control circuit short circuit, repair and restart the device.

Clean dust from heat sinks and fan blades, replace damaged fans, and ensure unobstructed cooling channels.

Improve the device installation environment by adding ventilation equipment (e.g., axial fans) or installing a temperature monitoring system to ensure the ambient temperature stays within the technical parameters.
