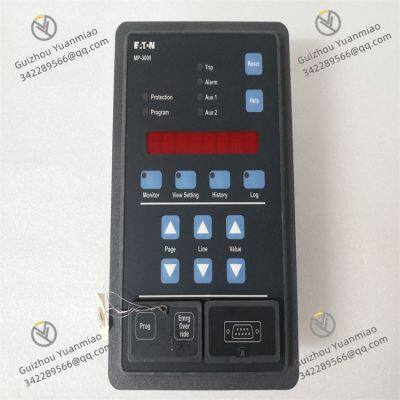

EATON MP3010 Motor Protection Relay

Multi-functionality: Integrates multiple protection functions such as overload, short circuit, ground fault, loss of voltage, and undervoltage, providing comprehensive protection for motors and power systems.

High Precision: Adopts advanced measurement technology with small measurement errors, high precision, and sensitivity, enabling accurate fault detection.

Flexible Configuration: Allows parameter setting and functional configuration via software to adapt to different types of motors and application environments.

High Reliability: Features industrial-grade design, ensuring long-term stable operation in harsh industrial environments with strong anti-interference capability.

Easy Installation: Compact structure supports wall-mounted or DIN rail installation, with a simple and convenient installation process.

Operating Voltage Range: 85V to 264V AC.

Output Voltage: 24V DC.

Rated Current: 10A.

Maximum Load Current: 10A.

Operating Temperature Range: -40°C to +70°C.

Protection Level: Typically IP20 or higher (e.g., IP67).

Communication Interfaces: Supports RS232, Modbus, DeviceNet, etc.

Electrical Life: 1×10? times.

Insulation Resistance: ≥100MΩ.

False Tripping: May be caused by improper protection parameter settings (e.g., excessively low overload protection threshold). Readjust protection parameters via relevant software to match the motor's actual operating conditions. External electromagnetic interference may also be the cause; check whether the equipment is well-grounded and if it is too close to strong electromagnetic devices, and adopt solutions such as adding shielding measures or optimizing grounding.

No Protection Action: May be due to a fault in the measurement circuit, leading to incorrect detection of current/voltage signals. Inspect whether components in the internal measurement circuit are damaged and replace the corresponding components if necessary. Faulty relay contacts may also prevent normal power cutoff; measure the on-off status of the contacts and replace the relay if the contacts are damaged.

Communication Failure: If communication with the host computer is abnormal, first check whether the communication lines are correctly connected, damaged, or open-circuited. Then confirm whether the communication interface settings (including baud rate, communication protocol, etc.) match those of the host computer. If the issue persists, it may indicate a fault in the device's communication module, requiring professional maintenance or communication module replacement
