Hotsale 22kw PVC Profile Crusher Plastic Pipe Sheet Shredder Machine for Recycling

FOB Price

USD $1 - $999999 / Set

1 Set(Min.Order)

Supply Ability 0 Set / Sets per Month
Port Shanghai
Payment TermsT/T
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

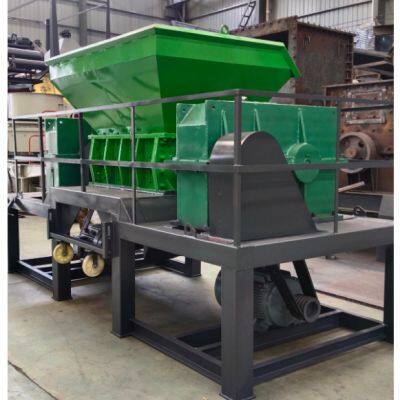

Hotsale 22kw PVC Profile Crusher Plastic Pipe Sheet Shredder Machine for Recycling

Home > Industrial Shredder > Single Shaft Shredder

Single Shaft Shredder

The SR series single shaft shredder is popular size reduction machine used for materials that contain minimal amounts of metal, such as plastic, paper, wood, waste wires and cables. The screen mesh size is determined by material nature and subsequent processing requirements. The shredded particles can then be reused or further processed. An intelligent electric control provides a high degree of machine safety.

Application::Plastic,plastic lump,PET，PC，ABS

Plastic,plastic lump,PET，PC，ABS

Plastic film,PP，PE，

MSW,RDF

Metal,copper,steel,iron,aluminium

Wire and cables

Wood

Glass fiber

Electronic Scrap

Solid waste,Medical Waste

Get the latest quote

facebook
twitter
whatsapp
pinterest
tumblr
linkedin

Desciption

Single shaft shredders reduce bulky materials into small, consistent particles. The material size is reduced using a pusher system and shingle shaft rotary blades. The particle size is determined by the screen mesh hole size, ranging from 40 to 100mm.

Features:

Rotor

“V” arrangement rotor with double side edge cutters prevent material build up. The rotating blades are made of CrMoV high alloy wear resistant steel, with different configurations and compositions available. The cutter blades feature a long service life allowing for multiple reuse before needing to be replaced.

Adjustable fixed blade

Adjustable fixed blade: the spacing between fixed blades is adjustable to create a broader shredding range. Surface overlaying wear-resistant material is used as the fixed blade, allowing the shredder to handle harder or higher abrasion materials as well as provide long term, stable operation.

Pusher system:
Pusher system: reinforced baseplate can reduce the impact caused by material entering the cutting chamber. A dust collection device is equipped at the bottom of the pusher system to guarantee the long-term stable performance of internal components.

Screen unit:

Screen unit: a wide range of screens with a variety of configurations and mesh sizes are replaceable based on customer’s production requirements. The paper shredder will automatically stop while opening the screen unit to ensure operator safety. The screen is produced and mounted in sections, allow for easy maintenance.

Drive train:

Drive train: intelligent hydraulic control. When shredding breakable materials, the oil cylinder will run at the fastest speed; when shredding difficult materials, the pushing speed will slow down to prevent rotor overloading. Every hydraulic system is equipped with a cooling system to increase the durability and stability in long-time operation.

Working Steps

Hydraulic system makes pushing device run and motorspass power into rotor by belt and gearbox. Rotor upperand bottom stator blades will work as cutting motion.
Materials are fed into the hopper and pushed by pushingchamber between rotor blades, upper and bottom statorblades.After being shred,fed materials will becomegranules.


Step1: Ready condition.	Step2: Hydraulic system starts and has materials pushed into rotor.	Step3: Materialiscutintosmallergranuleswhichfallthroughscreenmesh.

Application Range:

Textile Before Shredding	Plastic lumps Before Shredding	Paper Before Shredding	Film Before Shredding	Glass fiber Before Shredding	Municipal solid waste Before Shredding
Textile After Shredding	Plastic lumps After Shredding	Paper After Shredding	Film After Shredding	Glass fiber After Shredding	Municipal solid waste After Shredding

Parameters:

Model	SR600	SR750	SR900	SR1400	SR1600	SR2100
Main shaft speed(rpm)	73	73	73	73	73	73
Ram travel(mm)	500	820	820	820	1000	1000
Rotor diameter(mm)	Φ220	Φ400	Φ400	Φ400	Φ480	Φ480
Number of rotor blades(pcs)	23	44	52	80	94	122
Number of fixed blades(pcs)	4	6	6	10	12	16
Discharge height(mm)	500	610	610	610	950	950
Screen holes diameter(mm)	40	40	40	40	40	40
Motor power(kw)	18.5	37	45	75~90	2x55~2x75	2x75~2x90
Hydraulic power(kw)	1.5	2.2	2.2	5.5	7.5	7.5
Cutting chamber dimensions(mm)	540x600	830x708	830x840	830x1302	1000x1533	1000x1995
Overall dimensions(LxWxH)(mm)	1800x1350x1700	2810x2000x2115	2810x2100x2115	2810x2890x2115	3475x4100x2700	3475x4900x2700
Weight(kg)	Approx 1600	Approx 4460	Approx 4560	Approx 6200	Approx 10800	Approx 13000

Case

Bulk bag filling station

Liquid filling machine

Stretch hood machine

Pallet wrapper machine

Bag weighing filling machine

Bulk bag discharger machine

Palletizer

Crushing equipment

web:

email: shiyan-110@163.com

whatsapp: 0086 135 0624 5149

we can manufacture according to your requirement. so welcome your enquiry.
