Home > Products > Hygienic grade piping series > EU General Nickel Alloy Monel 400 300 K500 Plate/Sheet Monel 400 500 Uns N04400 DIN W. Nr. 2.4360 Nickel Alloy Stainless Steel

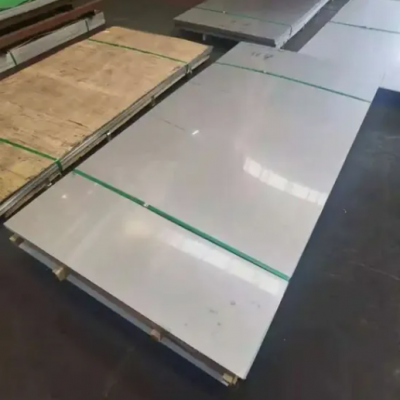

EU General Nickel Alloy Monel 400 300 K500 Plate/Sheet Monel 400 500 Uns N04400 DIN W. Nr. 2.4360 Nickel Alloy Stainless Steel
Negotiable
/ Ton
1 Ton(Min.Order)
- T/T
- 8 days
You May Like
-
Spot Wholesale Sales of 1.4529 N08926 Al-6xn Stainless Steel Sheet/Plate Polished Matte Surface
-
EU General Monel 400 Stainless Steel Plate Nickel Alloy Plate Monel400 Uns N04400
-
Custom N09926//1.4529/25-6mo Super Austenitic Nickel Alloy Sheet for Reverse Osmosis Desalination Inconel 926 Alloy Plate
-
EU General ASTM B127 Uns N04400 Monel 400 Nickel Based Alloy Sheet and Plate `Price Per Kg
-
EU General Premium Monel 400 Sheet - Versatile Nickel-Copper Alloy for Projects
-
EU General High Quality Pure Nickel Sheet Monel 400 Plate Electrolysis/Anode Price Per Kg
Product Details
| Type | Seamless | Technique | Cold Rolled | |
| Surface Treatment | Other | Material | Stainless steel | |
| Section Shape | Round |
Product Description
Basic Info.
Model NO.
Monel 400 600 Inconel 625
Composition
Monel/Inconel/Hastelloy/Nickel Alloy
Technique
Hot Rolled
Shape
Plate
Surface Treatment
Bright Polished Acid-Cleaning Sandblasting
Special Use
High-strength Steel Plate, Wear Resistant Steel, Silicon Steel, Cold Heading Steel, Free Cutting Steel, Mold Steel
Application
Industrial, Medical
Material
Inconel 600 Inconel 601 Inconel 625
Steel Grade
Inconel 718 Inconel 725 Inconel X-750
Surface
Pickled Bright Polished Satin
Item
Nickel Base Alloy
Width
100mm-3500mm or Customized
Length
500mm-15000mm or Customized
Dimension
(0.01-4.0)mm*(800-1560)mm*(1mm-6000)mm
Hot Rolled Thickness
2.75mm-100mm
Cold Rolled Thickness
0.2mm-3mm
Coil ID
508-610mm or as Per Your Request
Color
Silver, Black, etc
Density
4.51g/cm3
Hastelloy
Hastelloyb/ -2/B-3/C22/C-4/S/ C276/C-200
Incoloy
Incoloy 800/800h/800ht/825/925/926
Transport Package
Standard Sea Worthy Packing
Specification
Customizable
Trademark
Wuxi dingyuxinda
Origin
China
HS Code
73064000
Production Capacity
5000 Tons/Year
Product Description
Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy |
Shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
Grade | Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
Others:253Ma,254SMo,654SMo,F50(UNSS32100)F60,F61,F65,1J22,N4,N6 etc | |
Alloy : Alloy 20/28/31 | |
Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g | |
Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C, Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602, Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665 | |
Haynes: Haynes 230/556/188 | |
Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20 | |
Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 | |
Incoloy: Incoloy 800/800H/800HT/825/925/926; | |
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 | |
Monel: Monel 400/K500/R405 | |
Nitronic: Nitronic 40/50/60; | |
Nimonic: Nimonic 75/80A/90/A263 ; | |
Specification | Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
Product Paramenters
| Steel grade | Inconel 600 | Inconel 601 | Inconel 625 | Inconel 718 | Inconel 725 | Inconel X-750 |
| Corresponding brand | N06600/2.4816 /1Cr15Ni75Fe8 /NS312/CY40 | N06601/2.4851 /1Cr23Ni60Fe13AI /NS313 | N06625/2.4856 /0Cr20Ni65Mo10bN4 /NS336 | N07718/2.4668/GH4169 | N07725 | N07750 /2.4669/GH4145 |
| Chemical composition% | ||||||
| C≤ | 0.150 | 0.100 | 0.100 | 0.080 | 0.030 | 0.080 |
| Mn≤ | 1.00 | 1.00 | 0.50 | 0.35 | 0.35 | 1.00 |
| P≤ | / | / | 0.015 | 0.015 | 0.015 | / |
| S≤ | 0.015 | 0.015 | 0.015 | 0.015 | 0.010 | 0.010 |
| Si≤ | 0.50 | 0.50 | 0.50 | 0.35 | 0.20 | 0.50 |
| Cr≤ | 14.0-17.0 | 21.0-25.0 | 20.0-23.0 | 17.0-21.0 | 19.0-22.5 | 14.0-17.0 |
| Ni≤ | ≥72.0 | 58.0-63.0 | ≥58.0 | 55.0-59.0 | 55.0-59.0 | ≥70 |
| Mo | / | / | 8.0-10.0 | 2.8-3.3 | 7.0-9.5 | / |
| Cu | ≤0.50 | ≤1.50 | / | ≤0.30 | / | ≤0.50 |
| N | / | / | / | / | / | |
| Nb | / | / | 3.15-4.15 | 4.75-5.50 | 2.75-4.00 | 0.70-1.20 |
| other | Fe:6.0-10.0 | Al:1.0-1.7 | Co:≤1.0Ai:≤0.40Tr:0.40Fe:≤5.0 | AI:0.20-0.80Ti:0.65-1.15B≤0.006 | Tr:1.0-1.7AI≤0.35 | Co:≤1.0 AI:0.4-1.0Tr:0.25-2.75Fe:5.0-9.0 |
Inconel Alloy 600 is a nickel-chromium austenitic alloy similar to Alloy 600 but made precipitation-hardenable by additions of aluminum and titanium. It has good resistance to corrosion and oxidation along with high tensile and creep-rupture properties at high temperatures to 1300F (700degree). This material has excellent relaxation resistance and is non-magnetic. It has good elevated temperature strength properties to 1300 F (700 degree) and oxidation resistance to 1800 F (983degree). Inconel X 750 is resistant to a wide variety of industrial corrosives under both oxidizing and reducing conditions. This alloy also has excellent resistance to chloride stress corrosion cracking in the fully age hardened condition.
| % | Ni | Cr | Fe | C | Mn | Si | S | P | Cu |
| min | 72 | 14 | 6 | ||||||
| max | 17 | 10 | 0.15 | 1 | 0.5 | 0.015 | 0.015 | 0.5 |
Common Applications of Alloy 600
Structural members in hot sections of gas turbines such as discs, thrust reversers, and ducts
Aircraft structures
Rocket engines
Nuclear reactors
Heat treat fixtures
Cryogenic vessels: springs,and fasteners
Wire formulation with heat temper used in springs at elevated temperature
