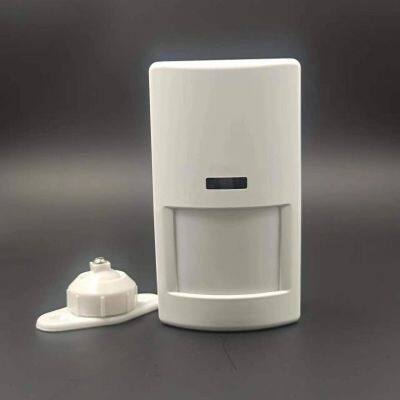

Indoor wall-mounted wired passive infrared detector

High-performance digital passive infrared detector, using advanced microprocessor design, two-way temperature compensation, unique anti-pet calculation method, with excellent detection performance and ultra-low false alarm rate, anti-pet level up to 25 kg. At the same time, the detector also provides NO/NC output, which can be directly used to activate the CCTV system and access control system, and the detector can be applied in a variety of indoor occasions, such as warehouses, hotel rooms, offices, etc.

High-performance digital passive infrared detector, using advanced microprocessor design, two-way temperature compensation, unique anti-pet calculation method, with excellent detection performance and ultra-low false alarm rate, anti-pet level up to 25 kg. At the same time, the detector also provides NO/NC output, which can be directly used to activate the CCTV system and access control system, and the detector can be applied in a variety of indoor occasions, such as warehouses, hotel rooms, offices, etc.

SPECIFICATIONS MDT-400S

Power supply 12-24VDC

Current 15mA(Stand by)

Mount height 1.5m-2.4m

Detection range 12m×12m 100°(wide lens)

Temperature compensation digital

Sensitivity 4 grade for option

Alarm time 2s/30s/1min/5min

Anti EMI 0.1-1000MHz/30V/m

Anti white light >10000 Lux

Anti R F I 50000V

Alarm output 2A/24VDC

Tamper output 200mA/125V

Lens type Wide Angle PET lens

Operation temperature -25℃/+55℃

Operation humidity 95% RH

Detection speed 0.2-3.5 m/s

Fire proof ABS plastic

Pet immunity 25kg

Size 116mm×64mm×48mm (main)
