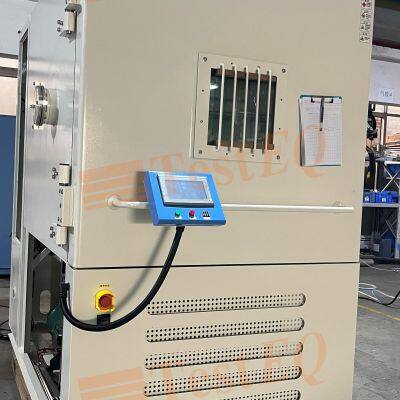

Simulated environment low-pressure test chamber MIL-STD-810

The low-pressure test chamber is a testing device used to simulate low-pressure environments such as high altitude, high altitude or vacuum. Its main function is to simulate the pressure conditions at different altitudes by vacuuming or adjusting the pressure (for example, by using a vacuum pump to reduce the pressure inside the test chamber to a set value, such as 0.5kPa to 100kPa, it can simulate different altitudes, such as 5000 meters high altitude) Test the performance, reliability and adaptability of the product or material in a low-pressure environment at a pressure of approximately 54kPa. The test chamber also has the functions of temperature and humidity regulation, which can simulate the low-temperature and low-humidity environment in high-altitude areas to conduct more comprehensive tests.

It performs outstandingly in terms of precise control over test accuracy and reliability. The environmental conditions that the product faces during testing are almost the same as those in the actual high-altitude environment, significantly enhancing the accuracy and reliability of the test. For instance, the high-altitude low-pressure test chamber can accurately simulate low-pressure conditions at different heights.

It is used to test the performance of aircraft equipment, satellites, rockets, etc. in high-altitude environments, including sealing, electrical performance, mechanical performance, etc.If you need more models about our test equipment, please reference our : chamber-testing（Click）com

Technical Specifications Temperature Range: -70°C to +180°C

Altitude Simulation: Sea level to 43,000m (110-0.1 kPa)

Rapid decompression: Achieve 16,800m pressure differential (4,550m → 21,350m) within 15 seconds

Humidity Range: 10% to 98% RH

Chamber Capacity: 10 to 100 m3 (customizable)

Noise test：≤ 75dB

Patent Number: CN201520670413.0
