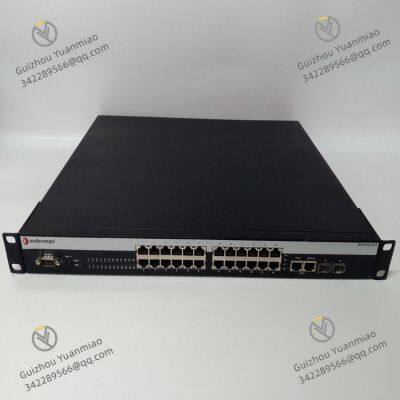

Enterasys A4H124-24TX P0973JM 24-Port Copper Managed Switch

Full Model: A4H124-24TX P0973JM

Series: Communication or network interface module of FOXBORO I/A Series system, suitable for industrial automation distributed control systems (DCS).

Purpose: As a key node for data transmission within the system, it supports industrial network communication, data exchange, and device interconnection, commonly used to connect controllers, human-machine interfaces (HMI), or third-party devices.

Interface Type: 24 TX (Transmit) interfaces, possibly Ethernet or dedicated industrial bus interfaces (such as high-speed communication ports based on twisted-pair cables).

Communication Protocols: Compatible with the underlying protocols of FOXBORO I/A Series system (such as TCP/IP, Modbus, or dedicated communication protocols), supporting real-time data interaction with controllers, I/O modules, or host computers.

Data Transmission: High-speed transmission capability with typical bandwidth supporting 10/100Mbps auto-negotiation, ensuring real-time performance and reliability of industrial field data.

Topology: Supports industrial network topologies such as star and bus, and can be used as a switch or gateway module to build distributed networks.

Redundancy Design: May support network redundancy (such as dual network port hot backup) to enhance the system's fault tolerance in industrial environments.

LED Indicators: Real-time display of power (POWER), operation (RUN), communication status (LINK/ACT), and data transmission status of each channel, facilitating on-site fault troubleshooting.

Anti-Interference Design: Electrical isolation protection (such as isolation voltage between ports ≥1500V AC) to reduce the impact of electromagnetic interference (EMI) in industrial environments.

Hot-Swap Support: Enables module replacement during system operation without affecting overall network communication.

DCS System Networking: Connects FOXBORO I/A Series controllers, I/O modules (such as A4H124 series DI/DO modules), and operation stations to build distributed control networks.

Third-Party Device Integration: Docks with SCADA systems, PLCs (such as Siemens, Schneider), or intelligent instruments via Ethernet interfaces to achieve data intercommunication among cross-brand devices.

Real-Time Data Acquisition: Transmits data from field sensors and actuators to controllers via the network, or receives control commands from host computers and issues them to devices.

Remote Monitoring: Supports remote access to module status via the network, suitable for scenarios requiring centralized monitoring such as power, chemical, and metallurgical industries.

Physical Connection: Fix in control cabinets using DIN rails, ensure interface cables (such as network cables) use shielded twisted-pair cables to reduce interference; if it is a bus interface, connect terminal resistors (such as 120Ω) according to specifications.

Power Requirements: Connect to a stable DC 24V power supply, and it is recommended to use a surge protector (SPD) to prevent voltage fluctuations from damaging the module.

Through FOXBORO I/A Series engineering software (such as Engineering Workbench):

If the "LINK" light is off: Check whether the network cable connection is loose, whether the interface is damaged, or whether the opposite-end device is properly powered.

In case of abnormal data transmission: View packet loss rate and error frame statistics through system diagnostic tools, and troubleshoot network conflicts or insufficient bandwidth.

Controllers: FOXBORO I/A Series CPU modules (such as P0400YX, P0960XX).

Network Equipment: FOXBORO industrial-grade switches, fiber transceivers, communication bus adapters (such as those for connecting Profibus, Modbus, etc.).

Field Devices: Intelligent sensors and actuators supporting Ethernet interfaces (such as Siemens Ethernet IO modules, ABB frequency converters).

Auxiliary Modules: FOXBORO power modules (such as P0904XX), redundant communication modules (for dual-network backup).
