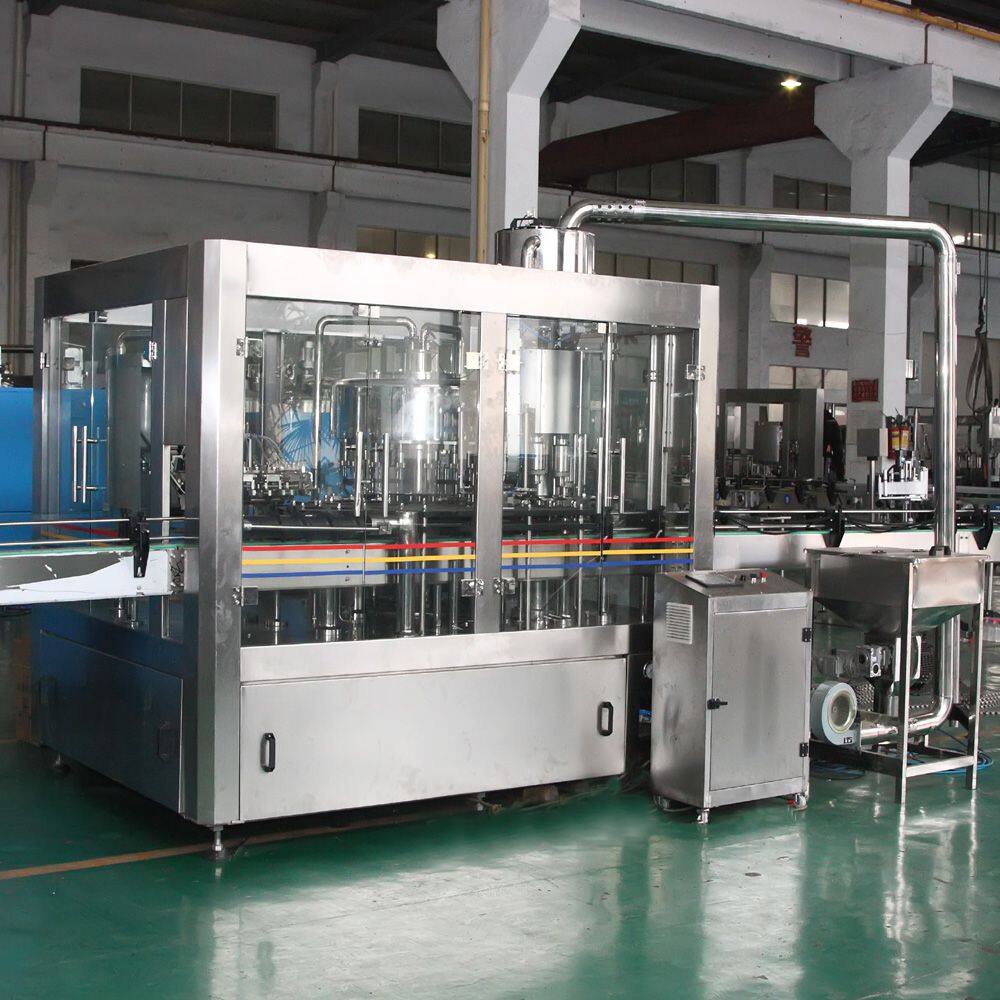

High-Speed Water Bottle Filling and Capping Machine

This 3 in 1 PET bottle drinking water machine is mainly used to fill pure water, mineral water, beverage, wine etc.

This bottle filling machine is composed by washing machine, filling machine and capping machine.

The bottle filling machine is fit 0.1-2L drinking water production line.

The bottle filling machine main parts adopts imported ones such as Omron Siemens

The bottle filling machine has good structure, using less area.It has high effective and stable

The bottle filling machine is high automatic type, easy operate and maintain.

Motor: SIEMENS

Speed reducer: SIEMENS

Invert speed control: Mitsubishi

PLC: Mitsubishi

Touch screen: Mitsubishi

Electricity appliance: SCHNEIDER

Volume of PET bottle: 0.2L-2.0L

Diameter of bottle: 50-110mm

Height of bottle: 150-310mm

Cap type: Plastic screw cap, aluminum cap, crown cap

Filling temperature: Normal temperature

Filling pressure: Normal

Filling precision: ±2-3%

Technicial Parameter:

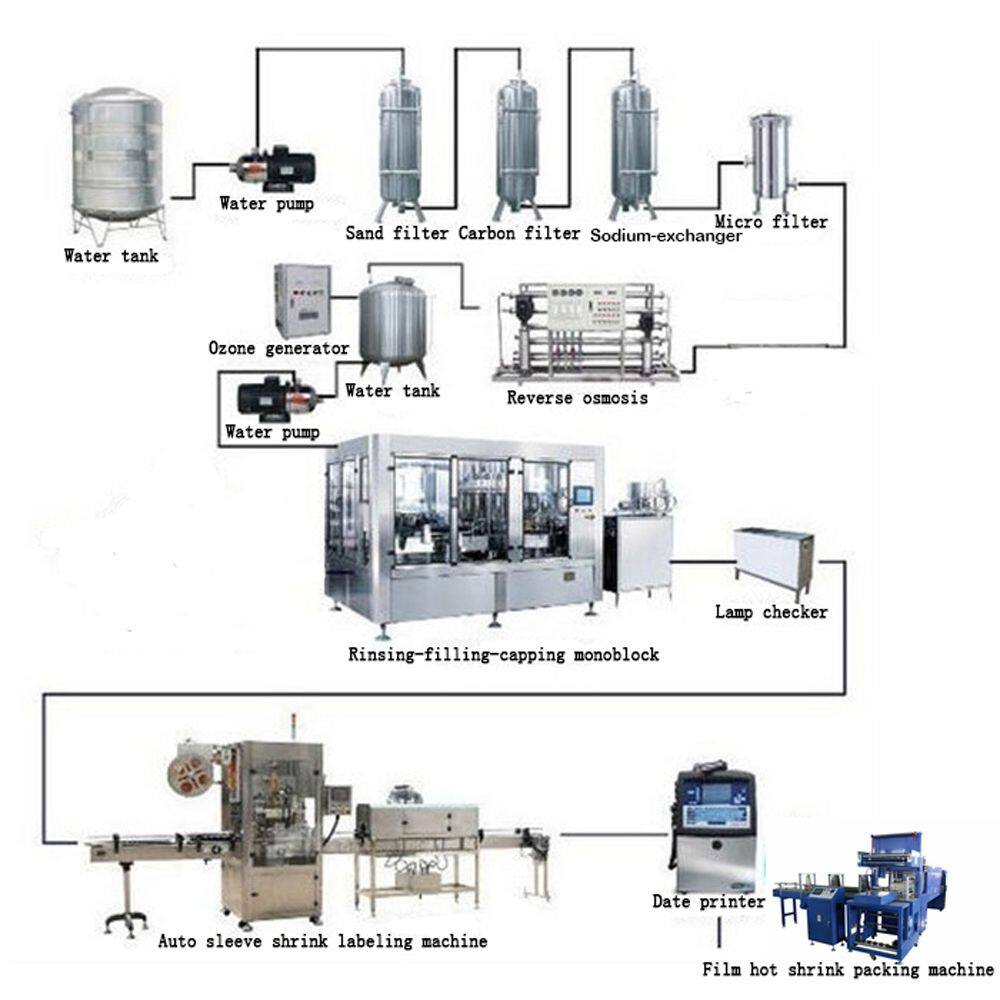

Technological Flow Sheet (Drinking Water Production Line):
1. PET Preform Injection Molding System
PET material→ Dehumidify→ Load material→ Injection machine→ Preform

2. PE/PP Cap Compression Molding System
PE material→ Dehumidify→ Load material→ Compression machine→ Cap

3. PET Bottle Blowing System
PET Preforms→ heat preform→ stretch→ blowing→ bottles

4. Water Purifying System
Raw water→ Multistage centrifugal stainless pump→ Quartz sand filter→ Active carbon filter→ Water softner→ Micro filter→ Reverse osmosis→ Ozone generator→ Water tank→ Pump

5. Water Filling, Labeling and Packing System
Air conveyor→ Rinsing, Filling& Capping Mono-Block→ Lamp checker→ Conveyor→ Auto labeling machine→ Date printer→Auto packing machine→ Stock

1. The plant layout
To provide customers with pre-project workshop planning, design.

2. Commissioning services
Send experienced engineers and technicians to be responsible for equipment installation and commissioning, to ensure customers' factory normal production.

3. Spare parts
With one year of wearing parts when the device is shipped. In addition, we prepare adequate equipment spare parts in stock. Customers ever need spare parts to repair and maintain quipment, we can supply to them quickly.

4. Technical training
To ensure that your technical staff to become familiar with the performance of the equipment, to master the equipment proper operation and maintenance procedures, we provide on-site technical training, in order to facilitate customers faster and more comprehensive access to technology.

Zhangjiagang Evertop Machinery Co., Ltd., which has the function of research, development and manufacture, is specialized in beverage packaging machinery.

We are providing the following products: liquid filling machine (bottle water, juice/tea, carbonated drink, oil, milk, wine etc.), 3 to 5 gallons water filling production line, water treatment machine, labeling and packing machine, automatic/semi-automatic bottle blow molding machine, injection molding machine and  automatic batching, mixing system, a variety of sterilization equipment etc.

Since foundation, we devote all the strength to the new field of beverage packaging machine technology and absorb the advanced technology from German and Italy. Company insists the management ideas of market-oriented, technology-first, quality of life, faith-based, service paramount, and has established perfect quality assurance system.

Q What is your trade clause?
A We mainly handle it by FOB, CFR, CIF, EXW, FCA. It depends on the client’s need.

Q What is your payment term?
A 30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment

Q What is the valid of your price?
A Because the cost and exchange rate changes rapidly, so all of our quotation for you is with 30 days valid. If you need any update price, please feel free to contact us.

Q How could I know if your products' specification is suit for our country power?
A All the machines are custom made. We will make suitable voltage and frequency products according to your need.

Q How long can you arrange delivery?
A About 30 days after we received the deposit payment, all the machines will be ready. You are welcomed to test the machine in my factory or we send you video of your machine running. Then you arrange the balance payment and we will pack the machines with wooden case and arrange the shippment by sea or by train.
