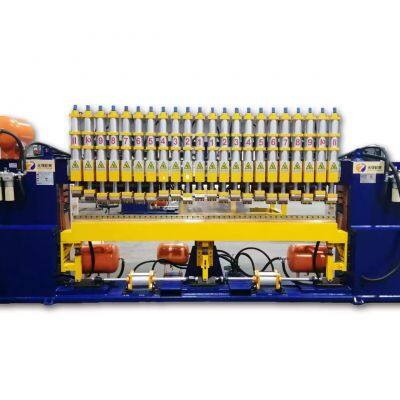

New Condition Wire Mesh Deck Shelving Automatic Production Line Automatic Metal Wire welding Machine

Product Description

Wire Mesh Deck Shelving Automatic Production Line



The welding production line designed for this project is specifically intended for the rapid production of Wire pallet rack decking. It enables the fully automated production of wire mesh and stiffener. Achieving automatic wire cutting, feeding, welding, bending, rotating, edges trimming, stiffener automatic feeding, welding, and stacking of finished product. The entire line design requires only two operators, enhancing product quality and production efficiency, reducing production costs. Also it helps to addressing the issues of quality instability and low efficiency associated with manual operations. The production efficiency and automation level are significantly improved.

Working Process



Working Process

1)High speed wire straightening and cutting machine will cut the wires from the wire coil, and then load the wires to the wire supplying system for automatic wire filling of the cross wires and line wires.
2)Cross wire and line wire filling system will feed the wire to the welding position automatically.
3)The welding machine will do welding automatically.
4)After welding, the robot will pick up the mesh and load it to the wire trimming station for cutting the edges.
5)After trimming, the robot will place the wire mesh back to the conveyor line and move it to bending station.
6)The bending machine will bend one side of the mesh.
7)The rotary system will rotate the mesh, and the bending machine will bend another side of the mesh.
8)The wire mesh will move to the stiffeners (support bars) welding position 9)The mechanical arm will load the stiffeners and fix them automatically to the welding position. 10)The welding machine will do welding of the stiffeners as per drawings. 11)After welding, the unloading mechanical arm will flip and stack the finished product automatically.

Items	Data
Electricity	Three-phase four wires 380V±10%
Power cable	120mm2,400A
Control method	PLC
Effective welding width	1200mm
Effective welding length	1200mm
Automatic moving speed	200-500mm/s adjustable
Automatic wire filling range	Line wire: 400-1200mm,wire diameter: 2-6mm Cross wire: 400-1200mm,wire diameter: 2-6mm
Automatic wire filling system number	2 sets
Machine dimension	35000mmx8000mm
Air pressure	0.6MPa
Cooling water	15-25oC
