Home > Products > concrete and cement testing machine > YAW-300KN computerized material compressive strength testing machine compressive strength test of concrete

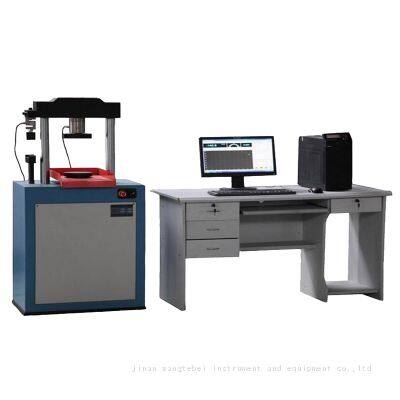

YAW-300KN computerized material compressive strength testing machine compressive strength test of concrete
- 10 Set / Sets per Month
- qingdao, tianjin,shanghai
- T/T
- 10 days
You May Like
-
YES-1000KN concrete cube compression test machine concrete block compressive strength test ASTM C39 compression testing machine
-
10mm Metal wire repeated bending test equipment / metal bending tester / wire bend test JWJ-10
-
Sheet metal reverse bending testing machine JWJ-10 Digital display electrical wire cable bending tester
-
JWJ-10 Electronic Metal Wire Repeated Bending Testing Machine
-
wire bending machine for wire cable laboratory bending re-bend test JWJ-10
-
wire cable repeated reverse bending tester machine with China JWJ-10
Product Details
Type | Compression Testing Machine | Weight | 100-500Kg | |
Power Source | AC220V | Accuracy Grade | 1 | |
Maxcapacity | <1000KN | Load Way | Electronic Load | |
Control | Manual Control | Loading Method | Static Load | |
Display | Digital | Origin | China |
Product Description
1. Applications
Measures compress strength of construction material such as cement.
Suitable to compress strength test to bricks, stones, etc.
2. Test method
GB/T17671 method of testing cements---determination of strength
ISO 679 cement---test methods---determination of strength
ISO 7500-1 metallic materials---verification of static uniaxial testing machines---part 1: tension/compression testing machines---verification and calibration of the force-measuring system
3. Features
l Software displays test force, peak force, test time and time vs. force curve.
l Software can set test parameters, data collection and calculation, display and print test results.
l Protect functions of mechanical limit stroke, over load, over current and electric leakage.
l Software allows constant certain compress force in long time period
l Adopt servo motor and servo driver as driving power, transmit by reducer and ball screw, very stable, low noise and no oil pollution
4. Main technical parameters
1 | Model | YAW-300B |
2 | Force capacity | 300KN |
3 | Accuracy of test force | ±1%/±0.5% |
4 | Accuracy of constant compress force | ±0.5% |
5 | Loading speed | 2.4KN/S±200N/S,50N/S±10N/S |
6 | Relative error of force speed | ±0.5% |
7 | Diameter of upper and lower compress platen | 110mm |
8 | Effective test space | 100mm |
9 | Motor power | 1.5kW |
10 | Voltage | 220V |
11 | Loading frame structure | Two columns |
12 | Dimension of loading frame | 950x650x1405mm |
13 | Weight of loading frame | 520kg |
Company Profile

Jinan Wangtebei Instrument and Equipment Co.,ltd, located in the beautiful spring city, specialized in the design, manufacture and selling of material testing machines for metal and nonmetal materials.?Our company has always been adhering to the innovative and ?sustainable development as the service concept, with customer satisfaction as the standard, to provide users with a complete set of material testing solutions. Our company has a professional and experienced mechanical, electrical, electronic, and software R&D and design personnel. It is extremely professional in its industry standards/requirements and keeps up to date with the development trend of the testing machine industry, thus ensuring the company's continuous improvement in new technology research and development; advanced Machining equipment, professional machining equipment operators and standardized quality management processes ensure that the company's product quality is controllable and reliable, making the production products more stable and fine. The sales/after-sales service team is professional, energetic, detailed in division of labor, and considerate in service.?At present, our company mainly produces including: tensile strength tester, hydraulic universal testing machine series, electronic universal testing machine series, manhole cover testing machine, impact testing machine series (including notched broach, cryogenic bath, projector supporting impact testing), cup protrusion testing machine, manhole cover testing machine, horizontal tensile testing machine, bending testing machine , Torsion testing machine, anchor testing machine, relaxation testing machine, hardness tester, metallographic sample preparation instruments and other products, which are widely used in iron and steel metallurgy, machinery manufacturing, shipbuilding, aerospace, ordnance, automotive, railway, pressure vessel, Steel pipes, rubber, plastics, colleges, scientific research units and quality inspection institutions and other industries.?
