Home > Products > BENTLY NEVADA > BENTLY NEVADA 32000-16-05-00-080-03-02?

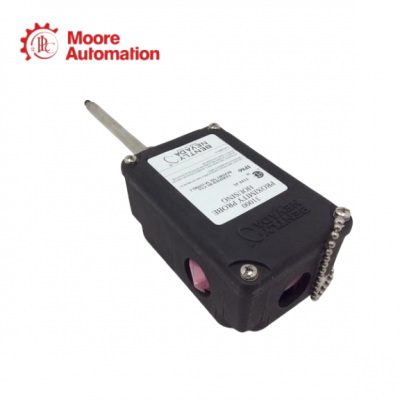

BENTLY NEVADA 32000-16-05-00-080-03-02?
- 1000 Piece / Pieces per Month
- Xiamen
- T/T
- 3 days
You May Like
Product Description
Contact Details |
Sales manager: Jane Li
Mobile/whtasapp : +86 18950128464
Email: sales5@askplc.com
Product Infomation |
Manufacturers：Bently Nevada
Part number：32000-16-05-00-080-03-02
Condition：Brand New
Warranty：12 month
Metric Proximity Probe Housing Assemblies
32000 - AA-BB-CC-DDD-EE-FF
A: Probe with Connector | |
00 | Probe not required |
16 | 3300 XL 8 mm probe |
26 | 3300 XL NSv probe |
27 | 3300 XL NSv probe, multiple approvals |
28 | 3300 XL 8 mm probe, multiple approvals |
29 | 3300 XL 8 mm probe, with connector protector |
30 | 3300 XL 8 mm probe, with connector protector, multiple approvals |
31 | 3300 XL NSv probe with connector protector |
32 | 3300 XL NSv probe with connector protector, multiple approvals |
33 | 3300 XL 11 mm probe |
34 | 3300 XL 11 mm probe, multiple approvals |
35 | 3300 XL 11 mm probe with connector protector |
36 | 3300 XL 11 mm probe with connector protector, multiple approvals |
B: Probe Cable Length | |
00 | Probe cable not required (Option A must also be 00) |
05 | 0.5 m (20 in) |
10 | 1.0 m (39 in) |
C: Standoff Adapter Length (Option C Dimension) | |
Must be ordered if Standoff AdapterLength option is not 00. | |
04 | Minimum length 40 mm |
20 | Maximum length 200 mm |
Recommendation Order in increments of 10 mm | |
D: Probe Penetration Option (Option D Dimension) | |
760 | Maximum length 760 mm |
025 | Minimum length 25 mm |
Recommendation Order in increments of 1.0 mm | |
No probe sleeve = 000 50 mm = 050 760 mm = 760 | |
For probe penetration lengths between 1.0 and 2.0 inches, it may be necessary to counter bore the machine case to reduce probe side view or rear view effects.
E: Fittings | |
00 | Without fittings; two plugs and two washers. |
01 | One M25 fitting, two plugs. |
02 | Two M25 fittings, one plug. |
03 | Two plugs, one M20 fitting One cable seal grip with grommets for armored probe cable |
05 | One DIN PG11 fitting, two plugs |
07 | One PG21 x M20 fitting Two plugs |
08 | Two PG21 x M20 fittings One plug |
F: Mounting Thread Option | |
00 | No outer sleeve, retainer, or retaining nut |
01 | M24 X 3 |
02 | 3/4-14 NPT (Required if ordering Standoff Adapter Option.) |
"C" plus "D" dimensions greater than 12 in (305 mm) require additional sleeve support near the probe to prevent resonance from occurring. Sleeve adjustment range of Probe Penetration Option "D" is ±0.5 in (13 mm). |
