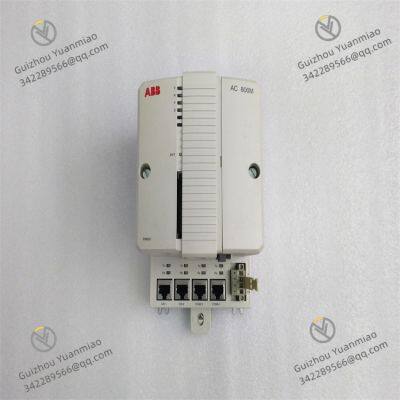

ABB PM860K01 3BSE018100R1 Processor Unit

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Input voltage	24V DC
Typical power consumption	250mA (6.0W)	Maximum power consumption	430mA (10.3W)
Operating temperature	+5°C to +55°C	Storage temperature	-40°C to +70°C

Product Description

ABB PM861AK01 3BSE018157R1 Processor Unit

The ABB PM860K01 3BSE018100R1 is a processor unit kit for the AC 800M control system.

Hardware Composition

PM860 CPU: The core processing component responsible for executing control logic, handling input/output, and enabling communication in automation systems.
TP830 Baseplate: 115mm wide, used for installing and fixing other components, providing electrical connections and mechanical support.
TB850 CEX Bus Terminator: Terminates the CEX bus to ensure stable and reliable bus communication.
TB807 Module Bus Terminator: Terminates the module bus to guarantee normal communication between modules.
Memory Backup Battery (4943013-6): A lithium battery (approx. 9g) that backs up memory data during power outages to prevent data loss.
4-pin Power Plug (3bsc840088r4): Connects to the power supply to energize the entire processor unit kit.

Performance Parameters and Functional Features1. Hardware Performance

Parameter Category	Specific Indicators
Processor	MPC860 processor, 48MHz clock frequency, executes 1,000 Boolean operations in 0.23ms.
Memory	Total memory 16MB, including 7.155MB application RAM and 2MB flash (for firmware and program storage).
Power Supply	- Input voltage: 24V DC (range 19.2–30V DC) - Typical power consumption: 250mA (6.0W) - Maximum power consumption: 430mA (10.3W) - Built-in 3.6V lithium battery for data retention during power outages.
Real-time Clock	Stability 100ppm (approx. 1 hour/year), supports 1ms clock synchronization via CNCP protocol.
Physical Specifications	- Dimensions: 189mm (H) × 135mm (W) × 119mm (D) - Weight: approx. 1.15–1.2kg - Protection class: IP20 (indoor use).

2. Communication Interfaces

Interface Type	Characteristics
Ethernet Ports	2 RJ45 ports (CN1/CN2), supporting IEEE 802.3, 10Mbit/s speed, control network protocols including MMS and IAC.
Serial Ports	2 RJ45 ports (COM3/COM4): - COM3: RS232C with modem signals, non-isolated, baud rate 75–19200bps. - COM4: Isolated, baud rate 9600bps.
CEX Bus	Supports 12 communication modules, maximum supply current 2.4A.
Module Bus	- Non-redundant configuration: 1 electrical + 7 fiber optic I/O clusters - Redundant configuration: 0 electrical + 7 fiber optic I/O clusters - Maximum I/O modules: 96 for single CPU, 84 for redundant configuration.

3. Functional Features

Feature	Description
Redundancy Design	Supports CPU, bus, communication interface, and I/O module redundancy with switchover time ≤10ms, suitable for high-reliability scenarios.
Programming Flexibility	Compatible with IEC 61131-3 standard programming languages (LD, ST, FBD, SFC, IL), supporting multitask processing.
Event Handling Capability	- Event queue: Up to 3,000 events per OPC client - Transmission rate: 36–86 events/sec, 113–143 data messages/sec.
Configuration Tool	Graphical configuration via 800xA Control Builder, supporting remote monitoring and diagnostics.

4. Environmental Adaptability

Parameter	Indicators
Temperature Range	Operating temperature: +5°C–+55°C Storage temperature: -40°C–+70°C
Humidity	5%–95% non-condensing
Vibration/Shock	Complies with industrial standards, strong anti-interference (EMC certified).
Altitude	≤2000m

5. Application Scenarios

Industrial Automation: Production line control, packaging machinery, printing equipment, etc.
Process Control: Precise control in petrochemical, pharmaceutical, and food & beverage industries.
Power Systems: Substation automation, grid dispatching, energy management.
Building Automation: Building control and security system integration.
