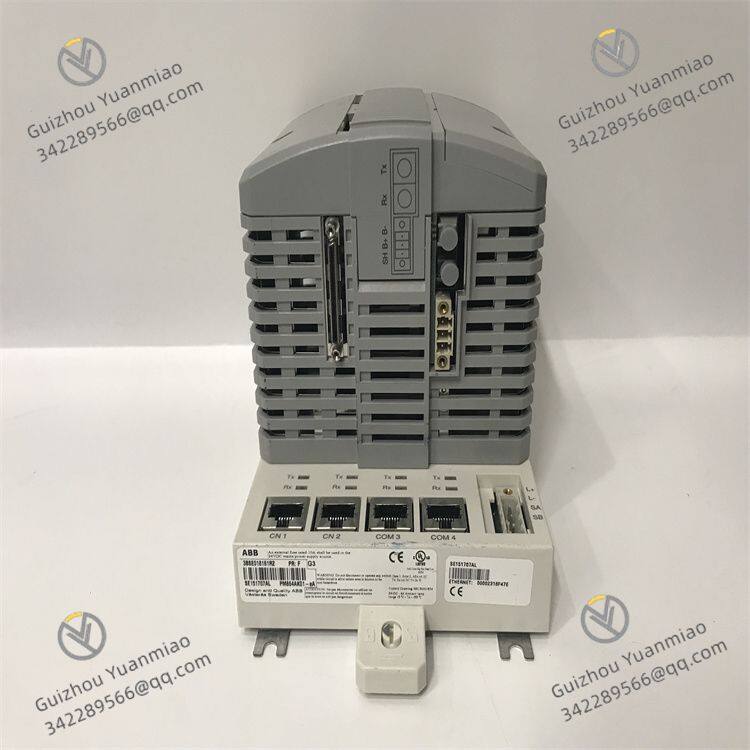

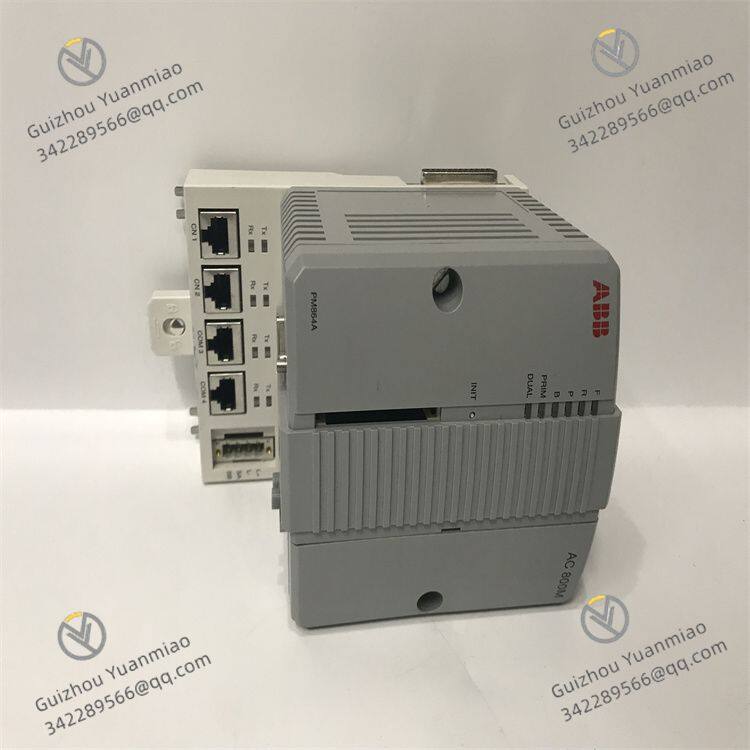

ABB PM864AK01-eA 3BSE018161R2 Processor Unit

Processor: Equipped with a 1.5GHz dual-core CPU, enabling fast instruction execution and strong real-time control capabilities. It can handle complex logical operations, meeting control tasks with strict requirements for response time and precision.

Memory: Features 4MB of user memory and 2MB of program memory, capable of storing a large number of control programs, data, and historical records to ensure the system processes data stably and reliably.

Communication Interfaces: Furnished with 2 Ethernet ports, 1 serial port, and 1 USB port. It supports multiple communication protocols such as Modbus, Profibus, Ethernet/IP, and PROFINET, facilitating data exchange and communication with other devices, sensors, actuators, and monitoring systems, and enabling easy system integration.

I/O Capability: Supports up to 2,048 I/O points, allowing connection to numerous input and output devices to meet the needs of industrial automation systems of different scales.

Other Parameters: Powered by 24V DC, with dimensions of 106mm×150mm×72mm and a weight of approximately 0.5kg. The operating temperature range is -25°C to 70°C, featuring wide temperature adaptability to operate stably in harsh industrial environments.

Real-time Control: Capable of handling real-time feedback and dynamic control requirements, ensuring the system operates stably within predefined parameters and guaranteeing the real-time performance and accuracy of control.

Flexible Programming: Supports multiple programming languages under the IEC 61131-3 standard, such as Ladder Diagram (LD), Structured Text (ST), and Function Block Diagram (FBD). Users can select based on their needs and programming habits, facilitating the customization of specific control logic and tasks.

Multitask Processing: Supports multitask processing, enabling simultaneous execution of multiple control tasks to improve system efficiency. It can manage multiple processes or devices simultaneously, effectively enhancing the overall performance of industrial automation systems.

Safety Functions: Possibly equipped with safety functions for monitoring and managing hazardous situations, and can take necessary safety measures in emergency cases to ensure the safety of personnel and equipment.

Self-diagnosis Function: Features self-diagnosis to detect faults and generate alarms, helping maintenance personnel quickly locate and resolve issues, thus improving system availability and reliability.

Industrial Automation Control: Can be used in industrial process control, production line automation, mechanical control, and other fields to achieve various automation control tasks.

Distributed Control System (DCS): Applied in large industrial processes for distributed control and monitoring in DCS.

Production Line Monitoring: Used to monitor the status of equipment and production data on production lines to improve production efficiency.

Energy Management: Applied in energy production and distribution systems for monitoring and controlling resources such as electricity, water, and gas.

Building Automation: Used in building automation systems to control equipment such as lighting, air conditioning, and security.

Redundancy Design: Supports redundancy for CPU, CEX bus, communication interfaces, and I/O modules, improving system reliability, preventing single-point failures, and ensuring continuous and stable system operation. It is suitable for industrial scenarios with extremely high reliability requirements.

Strong Expandability: Compatible with multiple communication protocols and equipped with various communication interfaces, making it easy to connect with other devices and systems. It also supports system expansion, allowing users to add additional modules according to actual needs, flexibly configure, and upgrade the system to meet the requirements of industrial automation projects of different scales and complexities.

High Stability: As part of ABB's industrial automation product line, this controller undergoes strict quality testing and adopts an industrial-grade design. It has strong anti-interference capabilities, adapts to harsh industrial environments, and ensures stable operation under adverse conditions.
