1. Product Overview

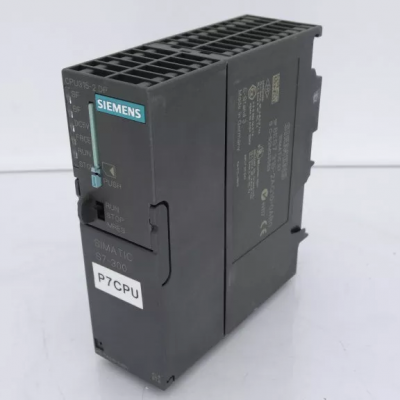

6ES7 315-2AG10-0AB0 is a CPU module in the Siemens SIMATIC S7-300 series, which belongs to the mid-range performance programmable logic controller (PLC) and is widely used in industrial automation control systems.

Core function: Integrated MPI (Multipoint Interface) communication protocol, supporting real-time control and data exchange, suitable for moderately complex automation tasks.

Positioning: An economical solution suitable for medium-sized projects that require high processing power and communication expansion, such as production line control, equipment monitoring, etc.

2. Technical parameters

Processor performance:

Working memory: 128 KB, supports program and data storage.

Processing speed: 0.06 μ s for bit operations and 0.59 μ s for floating-point operations, suitable for fast response control tasks.

Power supply and power consumption:

Input voltage: 24V DC (allowable range 19.2V-28.8V), typical power consumption is 4W.

Communication interface:

Integrated MPI interface (RS-485), supports PG/OP communication, S7 basic communication, and global data exchange, with a maximum transmission rate of 187.5 kbit/s.

Support connecting Profibus DP or industrial Ethernet through expansion modules (such as CP cards).

Scalability:

Supports up to 4 rack extensions, capable of connecting digital/analog I/O, communication modules, etc., to meet complex system requirements.

Storage and Backup:

Relying on Micro Memory Card (MMC) as the loading memory (supporting up to 8MB), data can be stored for up to 10 years.

3. Typical application scenarios

Industrial automation control: used for logical control, process monitoring, and data acquisition in production lines, such as automotive manufacturing, food processing, and other fields.

Energy saving and motor control: Supports soft start function, reduces motor starting current shock, and extends equipment life (some descriptions may be confused with website content, please note that actual module functions are subject to official documentation).

Distributed Control System (DCS): As a distributed control node, it is suitable for centralized management and decentralized control scenarios in industries such as power and petrochemicals.

4. Compatibility and Expansion

Compatibility module:

Can be paired with Siemens S7-300 series digital input/output modules (such as 6ES7 321-1BL00), analog modules (such as 6ES7 331-7KF02), etc.

Support Profibus DP master-slave station configuration, and achieve network expansion through communication modules such as CP 342-5.

Programming environment: STEP 7 V5.5+or TIA Portal is required for configuration and programming.

5. Maintenance and Precautions

Environmental adaptability:

Working temperature range: 0-60 ° C. Avoid humid or condensing environments. It is recommended to regularly clean the dust on the surface of the module.

Power and Backup:

After power failure, ensure that the MMC card is inserted to prevent program loss; The clock module supports a 6-week buffer time

model:

6ES7 315-2AG10-0AB0

6ES7 360-3AA01-0AA0

6ES7 361-3CA01-0AA0

6ES7 332-5HD01-0AB0
