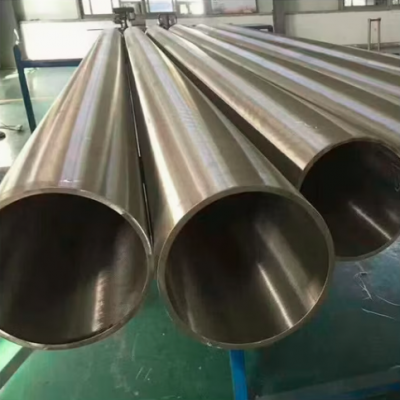

Nickel Alloy Steel Seamless Pipe Incoloy N08825/2.4858 ASTM B423 for Oil & Gas

Product Description



Material Summarylncoloy 825 is an austenitic nickel-iron-chromium-molybdenum-copper alloy containing high levels of chromium, nickel, copper, and molybdenum to provide high levels of corrosion resistance to both moderately oxidizing and moderately reducing environments. This balance of alloying elements grants this alloy exceptional resistance to both chloride stress corrosion cracking, as well as crevice corrosion and general corrosion. It is the high level of nickel in combination with the amount of molybdenum and copper in this nickel alloy produces substantially improved corrosion resistance in a corrosive environment such as reducing environments compared to stainless steel. The addition of titanium in this alloy also helps to stabilize the alloy against intergranular corrosion. Chloride stress corrosion cracking is a type of localized intergranular corrosion on materials that are put under tensile strength, in high temperatures and in an environment that includes oxygen and chloride ions such as seawater.

As an austenitic, nickel alloy, the material is ductile over a wide range of temperatures from cryogenic to well more than 1000 °F (538 °C). Fabricability is typical for a nickel alloy, with the material readily formable and weldable by a variety of techniques.

Chemical Composition

Grade	Ni	Cr	Fe	Mn	C	Cu	Si	S	Al	Ti	Mo
Alloy 825	38 - 46	19.5 - 23.5	≥22.00	≤1.0	≤0.05	1.50-3.00	≤0.5	≤0.03	≤0.2	0.06 -1.2	2.50 - 3.50

Mechanical Properties

Grade	Condition	Tensile Strength	Yield Strength	Elongation(%)
N08825	Annealed	≥85(586)	≥35(241)	≥30
N08825	Hot finished annealed	≥75(517)	≥25(172)	≥30
N08825	Cold-worked	≥85(586)	≥35(241)	≥30
N08825	Hot-forming quality	-	-	-



Product application



APPLICATIONSAlloy 825 is widely used in oil and gas applications. Other uses include chemical process equipment, exhaust systems, and power generation. CRA offers specialty alloy 825 seamless pipe & tube for use in multiple industries and applications, including:

• Corrosive well conditions containing the presence of CO2 , H2S, and chlorides, in temperatures up to 300°F, without the presence of sulfur

• Tubing, Casing, & Liners

• Base Pipe for Sand Screens

• Swell Packers

• Exhaust Systems

• Chemical Processing

• Power Generation

• Geothermal

• Carbon Capture & Sequestration (CCS)



	C	Mn	Fe	P	S	Si	Cu	Ni	Co	Al	Ti	Cr	Nb+Ta	Mo
Inconel 600	≤0.15	≤1.0	6.0-10.0	≤0.015	≤0.015	≤0.5	≤0.5	≥72.0	--	--	--	14.0-17.0	--	--
Inconel 601	≤0.1	≤1.5	balance	≤0.02	≤0.015	≤0.5	≤1.0	58.0-63.0	--	1.0-1.7	--	21.0-25.0	--	--
Inconel 625	≤0.1	≤0.5	≤5.0	≤0.015	≤0.015	≤0.5	--	≥58.0	≤1.0	≤0.4	≤0.4	20.0-23.0	3.15-4.15	8.0-10.0
Inconel 617	0.05-0.15	≤1.0	--	≤0.012	≤0.015	≤1.0	≤0.5	≥44.5	10.0-13.0	0.8-1.5	≤0.6	20.0-24.0	--	8.0-10.0
Inconel 690	≤0.05	≤0.5	7.0-11.0	--	≤0.015	≤0.5	≤0.5	≥58.0	--	--	--	27.0-31.0	--	--
Inconel 718	≤0.08	≤0.35	balance	≤0.015	≤0.015	≤0.35	≤0.3	50.0-55.0	≤1.0	0.2-0.8	0.65-1.15	17.0-21.0		2.8-3.3
Inconel 725	≤0.03	≤0.35		≤0.015	≤0.010	≤0.20		55.0-59.0				19.0-22.5		7.0-9.5
Inconel 750	≤0.08	≤1.0	5.0-9.0	--	≤0.01	≤0.5	≤0.5	≥70.0	≤1.0	0.4-1.0	2.25-2.75	14.0-17.0	0.7-1.2	--
Inconel 20	≤0.07	≤2.0	balance	≤0.045	≤0.035	≤1.0	3.0-4.0	32.0-38.0	--	--	--	19.0-21.0	8*C-1	2.0-3.0
Inconel 28	≤0.02	≤2.5	balance	≤0.02	≤0.015	≤1.0	0.6-1.4	30.0-34.0				26.0-28.0		3.0-4.0
Inconel 925	≤0.03	≤1.0	balance	≤0.03	≤0.03	≤0.5	1.5-3.0	42.0-46.0	--	0.15-0.5	1.9-2.4	19.5-23.5	--	2.5-3.5
Inconel 926	≤0.02	≤2.0	balance	≤0.03	≤0.01	≤0.5	0.5-1.5	24.0-26.0	--	--	--	19.0-21.0	--	6.0-7.0
Inconel 825	≤0.05	≤1.0	balance	≤0.02	≤0.03	≤0.5	1.5-3.0	38.0-46.0	--	≤0.2	0.6-1.2	19.5-23.5	--	2.5-3.5
Inconel 800	≤0.1	≤1.5	balance	--	≤0.015	≤1.0	≤0.75	30.0-35.0	--	0.15-0.6	0.15-0.6	19.0-23.0	--	--
Inconel 800H	0.05-0.1	≤1.5	balance		≤0.015	≤1.0	≤0.75	30.0-35.0	--	0.15-0.6	0.15-0.6	19.0-23.0	--	--
Inconel 800HT	0.06-0.1	≤1.5	balance		≤0.015	≤1.0	≤0.75	30.0-35.0		0.15-0.6	0.15-0.6	19.0-23.0
