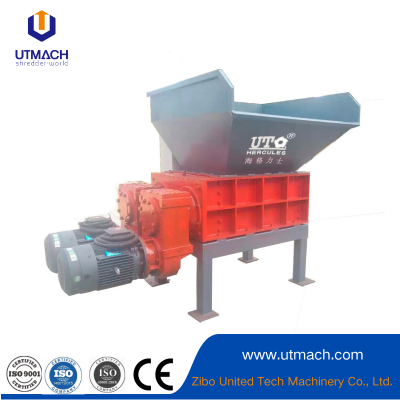

ultra-high torque shredding and Quad-shaft synchronized four shaft shredder

A four-shaft shredder is an advanced size reduction machine designed for efficient crushing of bulky, tough, or complex solid materials. It utilizes four rotating shafts equipped with interchangeable cutting tools (blades/hammers) to tear, shear, and pulverize materials into smaller, manageable pieces. Unlike two-shaft shredders, the four-shaft design allows for higher throughput, finer reduction, and the ability to process a wider range of materials, including metals, plastics, wood, and mixed waste.

• Four Horizontal Shafts:

• Two upper shafts (primary reduction) and two lower shafts (secondary reduction).

• Shafts rotate in opposite directions to create shearing forces.

• Cutting Tools:

• Removable blades/hammers made from high-wear-resistant materials (e.g., hardened steel, carbide).

• Tools can be customized (e.g., toothed, flat, or serrated) based on material type.

• Screen/Sieve:

• Adjustable perforated screen at the bottom to control output particle size.

• Replaceable for different sizing requirements.

• Hydraulic/Electric Motors:

• High-torque motors to handle heavy-duty loads.

• Variable speed control for optimized performance.

• Gearboxes:

• Synchronize shaft rotation and maintain precise speed ratios.

• Vibrating Feeder or Conveyor Belt:

• Ensures consistent material flow into the shredding chamber.

• Overload Protection:

• Automated sensors to detect blockages and prevent damage.

• Robust Steel Structure:

• Reinforced housing to withstand high impact and vibration.

• Access Doors:

• For maintenance, blade replacement, and screen adjustment.

1. Material Feeding:

• Materials are fed into the shredding chamber via a conveyor or feeder.

2. Primary Crushing:

• Upper shafts with aggressive blades tear the material into smaller chunks.

3. Secondary Reduction:

• Lower shafts refine the material by shearing and compression.

4. Sizing:

• The screen ensures only particles meeting size requirements exit the machine.

5. Output:

• Processed material discharges via gravity or conveyor for further processing.

• Waste Recycling: Shredding mixed waste (plastics, metals, wood) for sorting and recycling.

• Automotive Industry: Crushing car bodies, engines, and tires.

• Electronic Waste (E-Waste): Reducing PCBs, wires, and appliances for metal recovery.

• Wood Processing: Chipping pallets, furniture, and construction debris.

• Plastics: Granulating plastic sheets, pipes, and containers.

• Metal Scrap: Preparing metal for melting or densification.

• High Capacity: Processes large volumes of material continuously.

• Versatility: Handles diverse materials (metal, plastic, wood, etc.) without frequent adjustments.

• Precision Sizing: Adjustable screens produce uniform particle sizes.

• Low Noise/Dust: Enclosed design minimizes environmental impact.

• Energy Efficiency: Hydraulic/electric systems optimize power usage.

• Reduced Wear: Interchangeable tools extend equipment lifespan.
