Vertical multi head drill, anti-theft network management drilling machine, lifting drilling equipment, aluminum alloy drilling

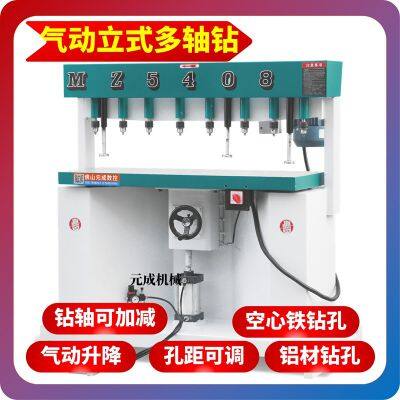

Technical parameters of MZ5408 pneumatic vertical multi axis drilling machine

Workbench size: 1200x450mm

Processing thickness: 100mm

Hole spacing: 50-1100mm

Number of drilling shafts: 8 (adjustable)

Speed: 3300r/min

Motor power: 3kw

Working pressure: 0.6-0.8Mpa

Voltage: 380V

Weight: 300kg

Dimensions: 1300x1100x1500mm

Vertical drilling features: The table can be freely raised and lowered by pneumatic means, the number of drilling axes can be adjusted according to production needs, and the drilling spacing can be adjusted. It is suitable for drilling holes vertically and irregularly in materials such as hollow iron, wood, aluminum profiles, plastics, PE pipes, etc.

Multiple holes can be drilled simultaneously, the material can be drilled through, countersunk holes can be drilled, and the drilling depth can be adjusted.

Before using the woodworking drilling machine, it is necessary to adjust the height of the table according to the shape and size of the wood drilling, select and install the drill bit, adjust the operating speed, and then pull the clamp to clamp and fix the wood tightly against the guide plate. After the trial drilling is normal, work can be carried out.
